Quick Details
-
Voltage:
-
no
-
Dimension(L*W*H):
-
3000x2500x3000
-
Weight:
-
120 kg
-
Product Name:
-

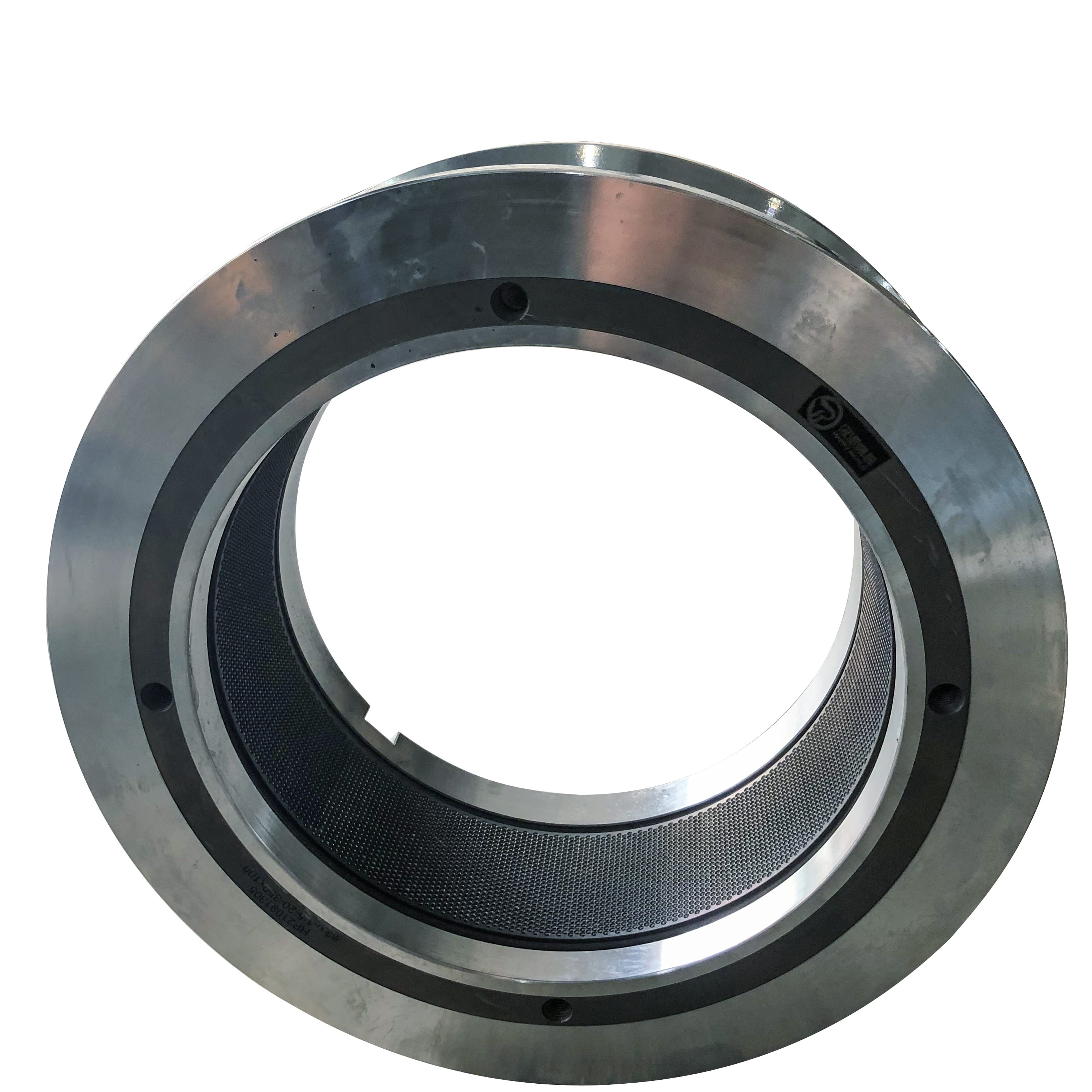

ring die
-
Shaping Mode:
-
Forging Mould
-
Quality:
-
Top
-
Application:
-
Pellet Mill
-
Material:
-
high quality chromium steel
-
Aperture:
-
0.8mm ~ 18mm
-
Outer diameter:
-
300 mm - 1200 mm
-
Inner diameter:
-
200mm ~ 900mm
-
Surface hardness:
-
HRC 52-56
-
Ring die wall thickness:
-
15mm ~ 100mm
Quick Details
-
Max. Capacity:
-
10 ton/h
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HanPai
-
Voltage:
-
no
-
Dimension(L*W*H):
-
3000x2500x3000
-
Weight:
-
120 kg
-
Product Name:
-
ring die
-
Shaping Mode:
-
Forging Mould
-
Quality:
-
Top
-
Application:
-
Pellet Mill
-
Material:
-
high quality chromium steel
-
Aperture:
-
0.8mm ~ 18mm
-
Outer diameter:
-
300 mm - 1200 mm
-
Inner diameter:
-
200mm ~ 900mm
-
Surface hardness:
-
HRC 52-56
-
Ring die wall thickness:
-
15mm ~ 100mm
|
Feed Varieties
|
hole Diameter
|
Compression Ratio
|
|
Poultry&livestock feed
|
Φ2.0-Φ4.5
|
1:9-1:20
|
|
Shrimp Feed
|
Φ0.8-Φ2.0
|
1:20-1:35
|
|
Fish feed
|
Φ1.5-Φ5.0
|
1:10-1:25
|
|
Crab feed
|
Φ1.5-Φ5.0
|
1:15-1:26
|
|
Biomass and Fertilizer
|
Φ5.0-Φ18.0
|
1:4-1:10
|
|
Cattle and sheep feed
|
Φ4.5-Φ10.0
|
1:6-1:12
|
|
Feline feed
|
Φ1.6-Φ3.5
|
\
|
|
Specification type
|
holes diamter
|
Working Width
|
Designed output
|
|
IDAH 530F
|
0.8
|
193
|
1.0t-1.5t\h
|
|
FAMSUM 600
|
|
170
|
0.8t-1.2t\h
|
|
ANDRITZ 520
|
|
178
|
0.8t-1.2t\h
|
|
IDAH 530F
|
1.0
|
193
|
2.5t-3.9t\h
|
|
FAMSUM 600
|
|
170
|
2.2t-3.5t\h
|
|
ANDRITZ 520
|
|
178
|
2.2t-3.5t\h
|
|
IDAH 530F
|
1.2
|
193
|
2.8t-4.6t\h
|
|
FAMSUM 600
|
|
170
|
2.5t-4.0t\h
|
|
ANDRITZ 520
|
|
178
|
2.5t-4.0t\h
|
1.Q:Are you a mould manufacturer? How long is the production cycle of the ring die?
A:We are a manufacturer, specializing in manufacturing ring mold production, our ring mold production cycle in 30-60 days.
2.Q:How long can your ring die be used?
A:Our ring die has long service life.The service life time is above 1000 hours.
3.Q:Which foreign customers have purchased your ring mold?
A:Yes, we have.Our company has established business relationships with customers in South Africa,,Vietnam, Korea,Indonesia, New Zealand, India, etc.
4.Q:What materials do you usually use for your ring mold?
A:The materials used in our company's ring mould are all stainless steel, which is measured by European standards.
5.Q:How far is your company from the port?
A:We are only 200 kilometers from Shanghai Port.
6.Q:What information do you need to provide to purchase your ring mold?
A:As long as you tell us the brand and model of your pelletizer, aperture and compression ratio, we will produce precise pelletizer spare parts for you
