- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
1.52*1.46m
-
Voltage:
-
220V/380V440V
-
Power:
-
3 kw
-
Weight (KG):
-
5000
-
Name:
-
Carbonization Kiln for Making Wood Charcoal
-
Color:
-
Customized
-
Factory visit:
-
Welcome
-
Capacity:
-
Deal with 4.5-6 ton raw material per day
-
Raw material:
-
Wood, wood waste, sawdust briquette and etc
-
Service time:
-
Whole life
-
Cooling time:
-
5-8 hours
-
Carbonizating time:
-
8-10 hours
-
Producing gas:
-
When temperature get around 280-300℃
-
Final product:
-
Wood charcoal, carbon, charcoal powder and etc
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hengyuan
-
Effective Volume:
-
2.54 CBM, 2.43CBM and 2.34CBM
-
Dimension(L*W*H):
-
1.52*1.46m
-
Voltage:
-
220V/380V440V
-
Power:
-
3 kw
-
Weight (KG):
-
5000
-
Name:
-
Carbonization Kiln for Making Wood Charcoal
-
Color:
-
Customized
-
Factory visit:
-
Welcome
-
Capacity:
-
Deal with 4.5-6 ton raw material per day
-
Raw material:
-
Wood, wood waste, sawdust briquette and etc
-
Service time:
-
Whole life
-
Cooling time:
-
5-8 hours
-
Carbonizating time:
-
8-10 hours
-
Producing gas:
-
When temperature get around 280-300℃
-
Final product:
-
Wood charcoal, carbon, charcoal powder and etc
Without Smoke Carbonization Kiln for Making Wood Charcoal
Brief Instrucation of Carbonization Kiln for Making Wood Charcoal
Carbonization kiln for making wood charcoal also named wood carbonziation furnace,
briquette charcoal furnace, wood carbonizater and etc, it mainly uesd for carbonizating wood watse, wood briqette, coconut shell and ect, to produce charcoal, carbon, charcoal powder, with the advantages of high calorific value, enviomental protection, easy to operate.
Technical Paremeter for Carbonization Kiln for Making Wood Charcoal
|
Main structure |
One main furnace and three inner basket, hoisting tools, cooling tank. |
|
Carbonizating time |
About 8-10 hours, different raw material with different time. |
|
Cooling time |
5-8 hours, the cooling time is increase, the carbnization effect is more better. |
|
Capacity |
Deal with 4.5-6 tons raw material per day. |
|
Lifetime |
The main furnace life time is 8-10 years, it need maintain 2-3 years/time. |
|
Inner stove |
The around steel thickness is 6mm. The bottom steel is boiler steel 8mm. |
|
Inner baskets diameter |
1460mm, 1430mm, and 1400mm, height is 1.52m |
|
Inner stove volume |
2.54 CBM, 2.43CBM and 2.34CBM , Total is 7.31CBM |
|
Delivery time |
Within 20 days after r e ceiving your prepayment |
Raw Materials of Carbonization Kiln for Making Wood Charcoal
Carbonization kiln for making wood charcoal raw material inculd wood, wood watse, sawdust briquette, tree branch, coconut shell, palm, baoboo, wood powder and etc.
Working Process for Carbonization Kiln for Making Wood Charcoal
First, we put the raw materials into the inner basket, then with the help of hoisting tools we put the inner basket into the main furnace. I n order to prevent the smoke from giving off, we need
to use the sand to seal the furnace.
Second, light the fire in the fireplace after mak ing sure everywhere is sealed well.
Thirdly, i t needs to be heated in the bottom around 60 min ute s, and the temperature get to
around 2 8 0℃ . T hen it will produce the gas . A t this time, we will stop heating , the gas will
return to the furnace by pipes . At the roof of furnace, we could light the gas, it means the
materials inside be gin to be carbonized .
Finally, t he carbonization time of one inner basket is 8 hours, after 8 hours, we take the inner
basket out, let the charcoal cool inside by nature , and put another basket into the main furnace .
T his is the recycling process, and we could carbonize three inner baskets per day .
Final Products of Carbonization Kiln for Making Wood Charcoal
Carbonization kiln for making wood charcoal final prodcut with the advantages of high calorific value, easy to burn, e asy to transport and store as densified product.

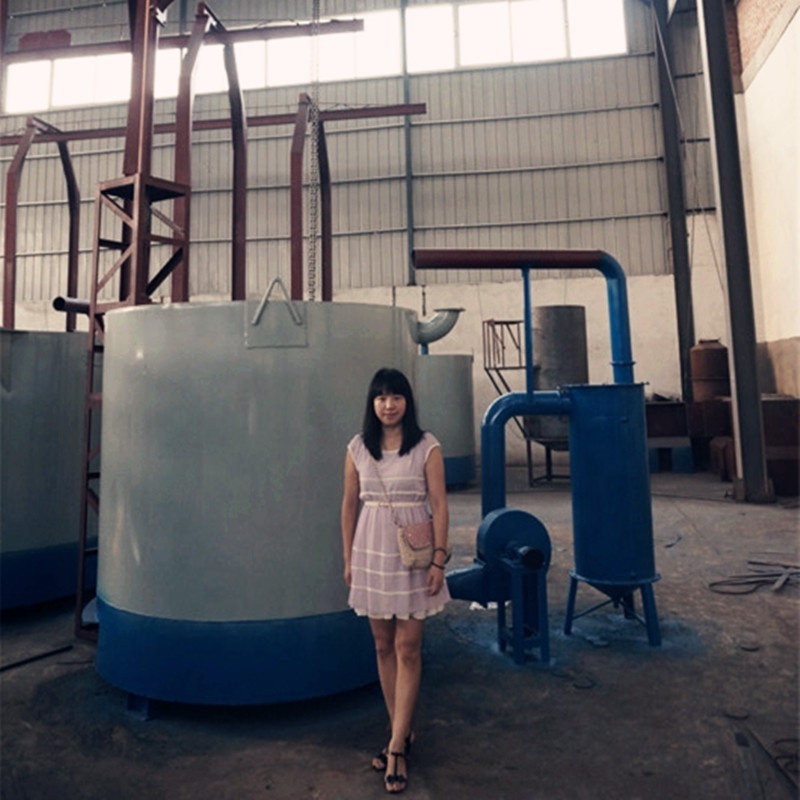

Our Customers Visited Our Factory for Carbonization Kiln for Making Wood Charcoal
We welcome our client to visit, we will arrage the business car to pick up you at airport or railway station, the nearest airport to our company is Zhengzhou Xinzheng International airport, railway station is Zhengzhou railway station.
If you are interested in this carbonization kiln for making wood charcoal, please contact with me freely as the followings:
