Quick Details
-
Weight (KG):
-
98 kg
-
Product Name:
-

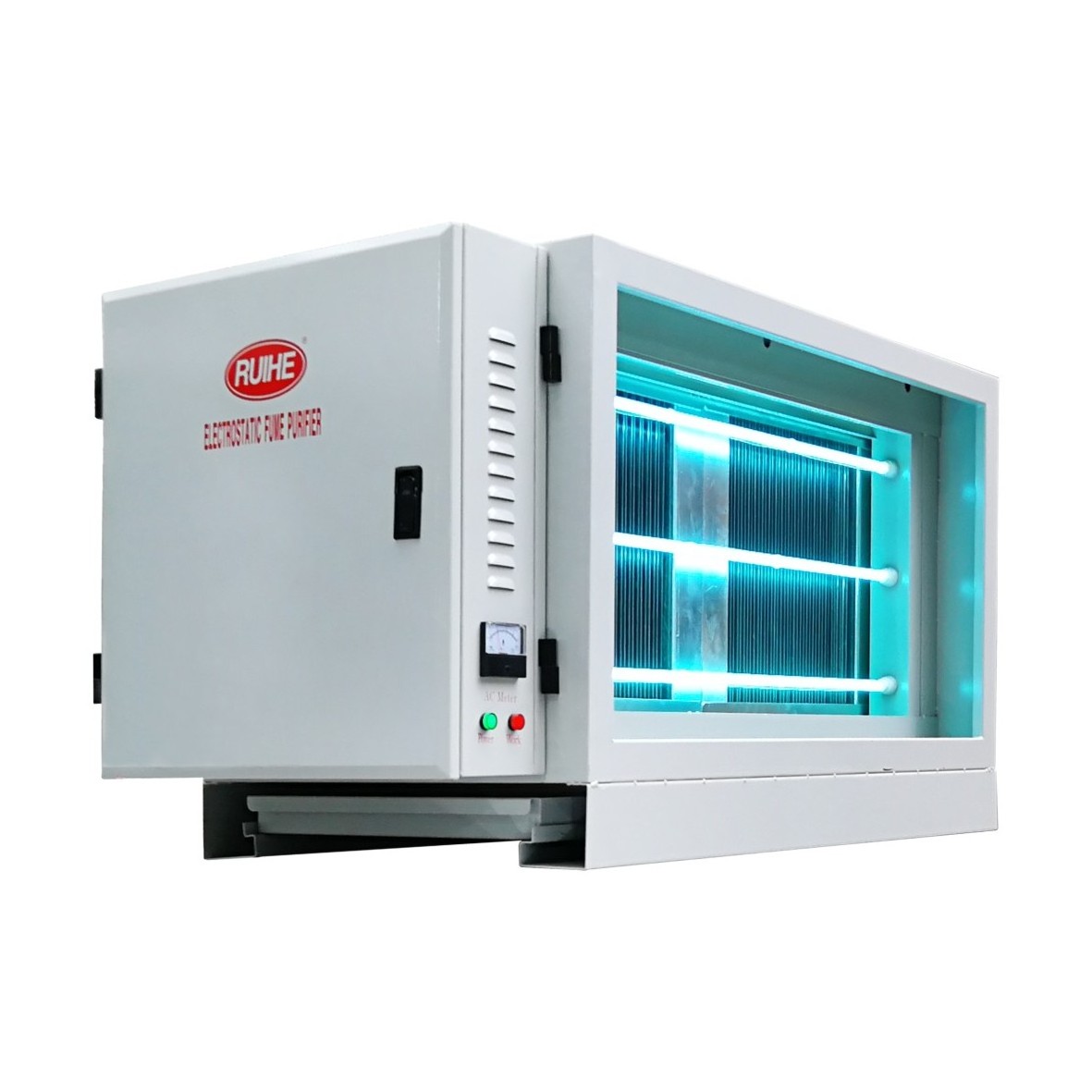

Air Eliminator
-
Cabinet Material:
-
carbon steel plate finish: power coated
-
Electric field material:
-
stainless steel, anti-corrosion aluminum alloy and 4pcs UV light
-
Certification:
-
ASHRAE 52.2 ,CE, ROHS,ISO9001
-
Fume removal rate:
-
over 97%
-
Airflow:
-
6000-7000CMH
-
Application:
-
Restaurant , Hotel,Commercial kitchen, industrial market
-
Voltage:
-
AC 110-240V 50Hz (60hz)
-
Flange hole size:
-
1020*530mm
-
Power:
-
520W
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DR AIRE
-
Purify Efficiency:
-
97%
-
Weight (KG):
-
98 kg
-
Product Name:
-
Air Eliminator
-
Cabinet Material:
-
carbon steel plate finish: power coated
-
Electric field material:
-
stainless steel, anti-corrosion aluminum alloy and 4pcs UV light
-
Certification:
-
ASHRAE 52.2 ,CE, ROHS,ISO9001
-
Fume removal rate:
-
over 97%
-
Airflow:
-
6000-7000CMH
-
Application:
-
Restaurant , Hotel,Commercial kitchen, industrial market
-
Voltage:
-
AC 110-240V 50Hz (60hz)
-
Flange hole size:
-
1020*530mm
-
Power:
-
520W
Air pollution is cutting global life expectancy by an average of 1.8 years per person, making it the world’s top killer. While we cannot control outdoor air quality, we can choose to protect us and create a clean commercial kitchen. DR.AIRE Kitchen HVAC System 's mission is to create healthy indoor commercial kitchen for people.
WORKING PRINCIPLE
1. The dirty air first passes through a pre-filter. Large particles of oil are filtered.
2. The air then passes into the high voltage ionise section where the particulates are charged to a positive potential. And then the air passes into low voltage collector cell
section where the particulates are charged to a negative potential. So the particulates are attracted to the collector plates effectively.
3. The particulates remain on the plates or drain down in to the sump.
4. The cleaned air exits through the cabinet.
Industrial HVAC Industrial HVAC Industrial HVAC
Product Advantage
1. Odor, smoke, oil control efficiently
2. Modular in design:
Modular units allow to vertical/horizontal stacking combination as per different air flow or removal efficiency rate request.
3. Intellegent electrostatic power control system
Electric intensity auto-co
ntrol function ensures the Kitchen ESP Collector unit maintains a high purification rate after a long time service.
4. Photolysis and odor removal: High power UV tube will remove food odor more efficiently.
5. Voltages: 110-240V, 50Hz (60 Hz optional)
DGRH-K Single Pass ESP parameter
| NO. | Model |
Air Flow
(CMH) |
Cabinet Size
L*W*H (mm) |
Flange Size
W*H(mm) |
Removal efficiency Rate |
Power
(Watt) |
| 1 | DGRH-K-3500(U) | 3000-3500 | 640*765*690 | 485*530 | 93-98% | 110 |
| 2 | DGRH-K-7000(U) | 6000-7000 | 640*1300*690 | 1020*530 | 93-98% | 176 |
| 3 | DGRH-K-10500(U) | 9000-10500 | 640*1835*690 | 1560*530 | 93-98% | 242 |
| 4 | DGRH-K-14000(U) | 12000-14000 | 640*1300*1380 | 485*1210 | 93-98% | 330 |
| 5 | DGRH-K-21000(U) | 18000-21000 | 640*1835*1380 | 1020*1210 | 93-98% | 484 |
| 6 | DGRH-K-31500(U) | 27000-31500 | 640*1835*2070 | 1560*1890 | 93-98% | 726 |
Do everything for you, would you like support my job ? tks.
Would you like protect the blue sky with DR AIRE Teams?
The First time choice for DR AIRE ESP, Forever Trust !
Welcome order.
Please Send US Enquiry and get 2% discount now. Click
Here
tks
Dongguan Rui zhaohe Environmental Protection Equipment Co., Ltd is one of leading manufacturers in China,specialized in manfacturing commercial, industial air pollution control machines.
DR AIRE is our brand,main products: commercial kitchen electrostatic precipitator (ESP), HVAC UVC lamp, mobile Uv Sterilization Lamp,mobile cooking station ,BBQ cart with Smoke filter, industrial Esp, ductless range hood, coffee Roasters smoke filter ,CNC oil mist collectorand etc.
DR AIRE ESP teams not only sell the products, we also offer perfect air purification scheme and professional service for you! 100% protect your order. Not miss the business opportunity !
