Quick Details
-
POE Port:
-
4CH
-
POE Camers:
-
4Pcs
-
Lens:
-
3.6mm
-
Night Vision:
-
25m
-
Storage:
-
Max 8TB
-
Remote Monitoring:
-
Support
-
Waterproof:
-
IP66
-
Certificate:
-
CE ROHS FCC
-
Warranty:
-
Two years
Quick Details
-
Special Features:
-
Waterproof / Weatherproof
-
Place of Origin:
-
Guangdong, China
-
Pixel:
-
3.0MP
-
POE Port:
-
4CH
-
POE Camers:
-
4Pcs
-
Lens:
-
3.6mm
-
Night Vision:
-
25m
-
Storage:
-
Max 8TB
-
Remote Monitoring:
-
Support
-
Waterproof:
-
IP66
-
Certificate:
-
CE ROHS FCC
-
Warranty:
-
Two years

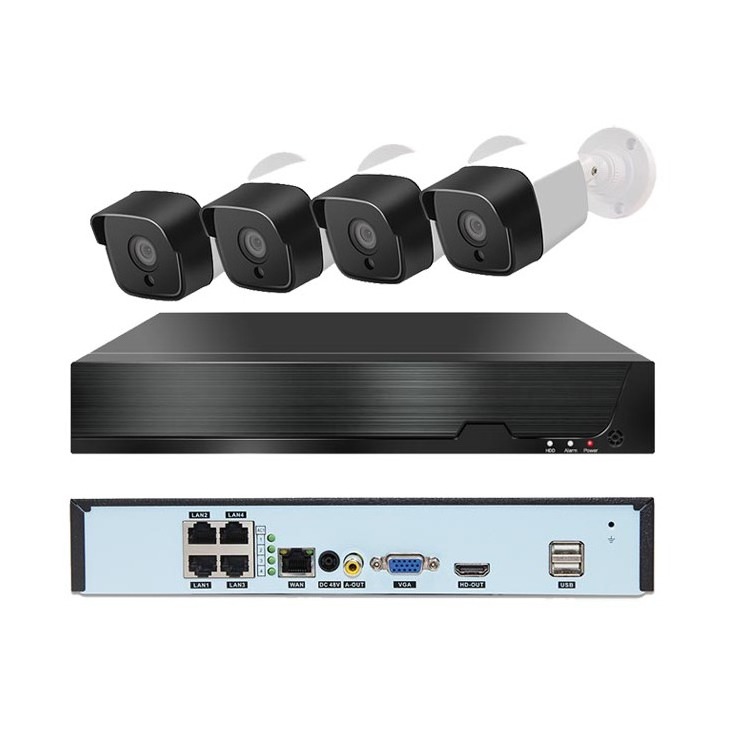

2020 New Products High Quality Resolution CCTV HD 3.0MP POE IP Camera 4 CH NVR Kit
NVR Specifications:
|
Video/Audio Input |
|
|
IP Video Input: |
4-ch 5.0MP |
|
Audio Input: |
1-ch network audio input |
|
Video/Audio Output |
|
|
VGA Output: |
1-ch, resolution: 1920×1080P/60Hz,1600×1200/60Hz,1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
|
Recording resolution: |
720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
|
Audio Output: |
1-ch BNC assisted output |
|
Playback Resolution: |
UXGA / 720P / 4CIF / VGA / DCIF / 2CIF / CIF / QCIF |
|
Synchronous Playback: |
Any 1-ch 1080p playback |
|
Hard Disk Driver |
|
|
Interface Type: |
1 SATA Interface |
|
Capacity: |
Up to 4TB capacity for each disk |
|
External Interface |
|
|
Network Interface: |
1 RJ45 10M/100Madaptive Ethernet Interface |
|
USB Interface: |
2 USB 2.0 Interfaces |
|
General |
|
|
Power Supply: |
DC 12V4A |
|
Consumption: |
≤ 25 W (without hard disk) |
|
POE Port |
4CH |
|
Working Temperature: |
-10 °C ~ +55°C |
|
Working Humidity: |
10%~90% |
|
Chassis: |
Stand-alone 1U chassis |
Camera Specifications:
|
Camera |
Sensor |
1/ 3 “ 3.0 mega pixel |
|
Image compression processor |
Dual-core 32bits DSP,hardware decoding,watchdog |
|
|
IR |
18 pcs Φ 5 LED , IR distance 20~30M |
|
|
Minimum illumination |
0 LUX ( IR open ) |
|
|
Lens |
3.6 mm |
|
|
Day and night conversion mode |
Automatically |
|
|
Compression standard |
Video compression standard |
H.26 5 |
|
Video compression technique |
Dual-code compression technique , include local view stream,remote view stream and phone view stream |
|
|
Compression output code rate |
32Kbps ~ 8000Kbps |
|
|
Image |
Resolution |
Main stream : 1280×720 ; Sub stream:640*360 , 320*180 |
|
Image parameter set |
Brightness ,contrast,chroma,saturation,image quality grade adjustable |
|
|
Network function |
Protocol |
RTSP , PPPoE , DHCP , TCP/IP , HTTP , UDP , RTP/RTCP , SIP , DDNS , DNS |
|
Area shield |
support |
|
|
Remote monitoring |
Supports P2P , all smart phone system and PC |
|
|
Common standard |
Working temperature and humidity |
-10 ℃ ~60℃90 % RH |
|
Power supply mode |
Network cable supply power No.4-5 and No.7-8 cable group |
|
|
IP grade |
IP6 6 |
Why you should choose BESNT?
1.Hight Quality ,Lower Prices
A well-known benefit of selling direct is the ability to offer highquality products at lower prices. When you buy from BESNT, you don't have to sacrifice performance for price. Our customers simply get more, for less.
2.Knowledgeabl Support
We take technical support very seriously. In fact, BESNTemploysas many technical resources as we do sales resources. Buying from BESNT provides direct access to our team ofexperts who are involved in every aspect of product development - from design and testing, to support.
3.Guaranteed Reliability
If a product fails to meet customer expectations, we hear about it - directly from our customers, and make any adjustments necessaryto deliver a positive experience. This direct feedback,combined with control of product development, empowers BESNT to build extremely reliable solutions, backed by industry leading warranties and free lifetime technical support. Simply put - we stand by ourproducts.
4.Customer-Driven Design
Direct feedback from our customers has a tremendous influence on product development - from performance to usability - and allows BESNT to be more responsive tothe changing needs of the market. BESNT also customizes solutions to meet ourcustomers' specific needs - a capability made possible by a direct relationship.
5.Latest Technology,Faster
A direct relationship with our customers allows BESNT to better understand demand for our products, and to introduce new products as they are available. These advantages help to insure that we have the solutions you want, when you want them - while our competitors are still promoting yesterday's technology.
6.1-3 Years Warranty time
All BESNT PTZ camera take 3-Year-Warranty since delivered out.All BESNT CCTV camera take 2-Year-Warranty since delivered out.All BESNT other CCTV products take 1-Year-Warranty since delivered out.
Instruction
Dear, thanks for viewing our products.
We will offer you good quality products with very nice price. Welcome to inquiry! Thank you!
