Quick Details
-
Place of Origin:
-
Guangdong, China
-
Shipment Terms:
-
DHL
-
MOQ:
-
Sample
-
Warranty:
-
3 Months
-
Condition:
-
100% Original
-
Package Type:
-
Electrostatic Bag
-
Lead time:
-
1-3 Days
-
Quality:
-
High-quality
-
Brand:
-
original
-
Payment:
-
Accept Trade Assurance
-
Dadecode:
-
newest
Quick Details
-
Function:
-
other
-
Brand Name:
-
original
-
Model Number:
-
1204+KT1527
-
Place of Origin:
-
Guangdong, China
-
Shipment Terms:
-
DHL
-
MOQ:
-
Sample
-
Warranty:
-
3 Months
-
Condition:
-
100% Original
-
Package Type:
-
Electrostatic Bag
-
Lead time:
-
1-3 Days
-
Quality:
-
High-quality
-
Brand:
-
original
-
Payment:
-
Accept Trade Assurance
-
Dadecode:
-
newest
|
Part number |
1204+KT1527
|
|
Wechat/Tel |
+8613534149774 |
|
WhatsApp: |
+8615622206170 |
|
Email/Skype |
qindamodule@ 163.com |
|
|
1823232721 |
-

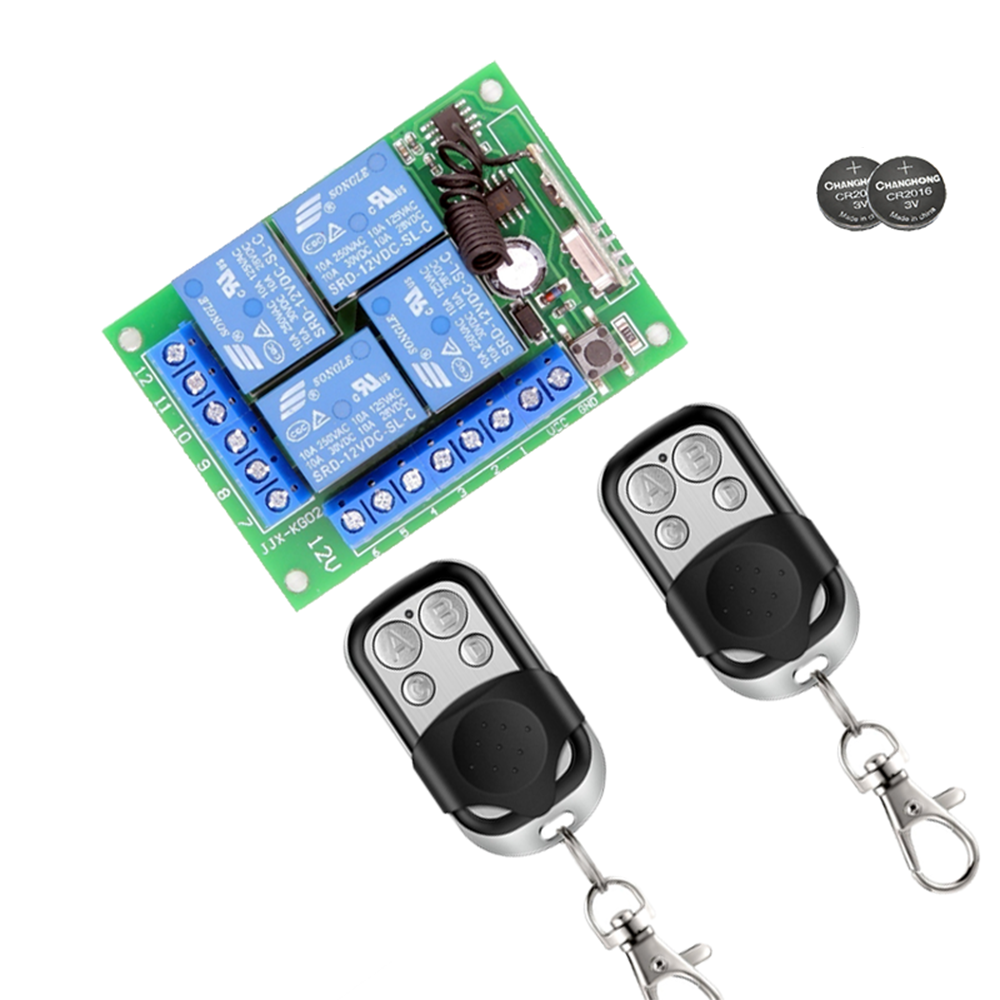

Working voltage : DC12V
- Input/Output : 1V~250V
-
Max current : 10A
-
Max load: 120W
-
RF frequency : 433Mhz
-
Pin : L \ N
- Receiver size : 70*55*25mm
-
Working temperature : -30~+80 Celsius
-
Receiving Sensitivity : >97dbm
-
Amount of storage remote controls : 20 pieces
-
Support encoding : 1527 Learning code /2262 fixed code
-
RF Operating mode : ASK superheterodyne wireless reception
-
Receiving range : Open space is more than 50 meters
-
Remote operating mode : Momentary Mode / Toggle Mode / Latched Mode / Mixed Mode
- 1. Momentary Mode:Press and hold on button "A" , relay will turn on; Release the button, this relay will turn off.
- 2. Toggle Mode:Press button "A", relay will turn on; Press button "A" again, this relay will turn off.
- 3. Latched mode:Press button "A", relay "1" will turn on; Press button "B", relay "2" will turn on, at the same time relay "1" will turn off.
- 4. Mix mode:Relay "1" "2" work in Momentary mode,Relay "3" "4" work in Toggle mode.
- 5. Mix mode:Relay "1" "2" work in Momentary mode,Relay "3" "4" work in Latched mode.
- 6. Mix mode:Relay "1" "2" work in Toggle mode,Relay "3" "4" work in Latched mode.
How to set
Momentary Mode:Press the learning button(on the Receiver) once. Press button "A" . Wait for 3 seconds.Succeed.
Toggle Mode:Press the learning button(on the Receiver) 2 times. Press button "A" . .Wait for 3 seconds.Succeed.
Latched mode:Press the learning button(on the Receiver) 3 times. Press button "A" . Press button "B".Wait for 3 seconds.Succeed.
Mix mode:Press the learning button(on the Receiver) 4/5/6 times.Press button "A".Wait for 3 seconds.Succeed.
Reset
Press the learning button 8 times,succeed.
