Qingdao crowns machinery co.,ltd
was located in Huangdao District, the west coast of Qingdao city, Shandong province, China. We
are specialized in rubber and plastic machinery designing,manufacturing and maintenance work.we have been specializing in rubber and plastic machinery and production line for more than 30 years.
- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
90kw
-
Weight (KG):
-
5800 KG
-
Application:
-
Used Tire Retreading
-
Machine Type:
-
Rubber Vulcanizing Machine
-
Tyre Size:
-
15''-22.5''
-
Service Power:
-
60-90 Kw
-
Capacity:
-
8/12/16/24 TIRE
-
Heating Mode:
-
Electric/Steam/Thermal Oil
-
Temperature:
-
95~120℃
-
Standard Chuck:
-
15'',16'',20'',2.5''
-
Air Supply:
-
0.6-0.8 Mpa
-
Technology:
-
Precure/Cold Retread
Quick Details
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
11000*2200*2350
-
Power (kW):
-
90kw
-
Weight (KG):
-
5800 KG
-
Application:
-
Used Tire Retreading
-
Machine Type:
-
Rubber Vulcanizing Machine
-
Tyre Size:
-
15''-22.5''
-
Service Power:
-
60-90 Kw
-
Capacity:
-
8/12/16/24 TIRE
-
Heating Mode:
-
Electric/Steam/Thermal Oil
-
Temperature:
-
95~120℃
-
Standard Chuck:
-
15'',16'',20'',2.5''
-
Air Supply:
-
0.6-0.8 Mpa
-
Technology:
-
Precure/Cold Retread
Tire Recapping Machines For Tyre Retreading Process
Introduction

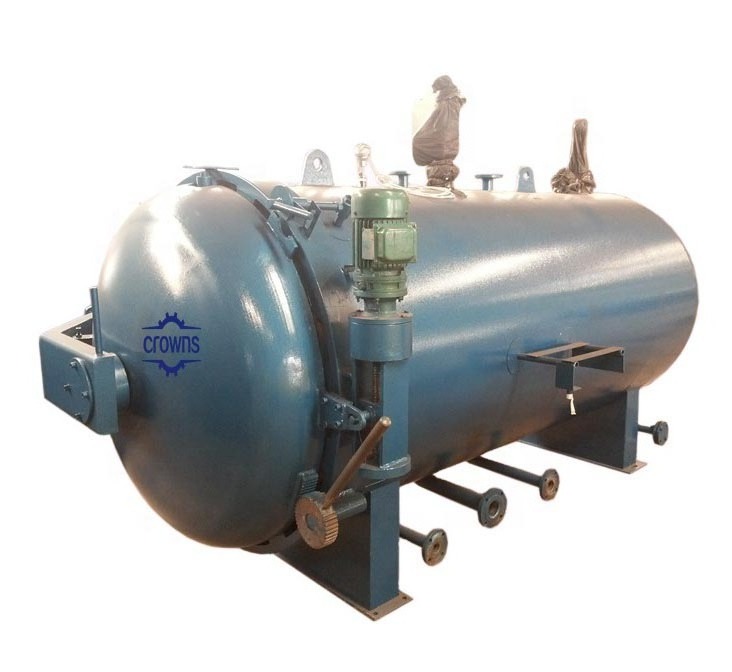

Precure or "Cold" retreading involves vulcanization without a mould at a temperature of between 95 °C and 117 °C. The tyre is put together using a pre-vulcanized Tread Liner Rubber (= new tread) and a non-vulcanized Bonding Gum(Cushion Gum) layer. The bond between the carcass, the bonding gum and the precured tread is created in an autoclave(Curing Chamber). Precure retreading has become fully established in the truck tyres sector since the introduction of radial tyres in the mid-1960s.
The full set tire retreading equipments including:Tire Buffing Machine,Tread Building Machine,Liquid mixing tank,Envelope Spreader,Rims Mounting Machine,Repair Stand Machine,Extruder machine,Dust Collector,Inspection Machine,Tire Pressure Test machine,Curing Chamber with Monorail Curing Rims with flanges,Extruder Gun,Buffing Wheel,Envelope,Inner Tube,Cushion Gum and Tread Rubber.
|
Product Name
|
16 Tire Retreading Equipment Cost for TBR Truck & Passenger Bus 15''-22.5''
|
|
|
|
Electricity
|
380V,50Hz,3Ph
|
|
|
|
Workshop Area
|
300 Sqm
|
|
|
|
Service Power
|
90 Kw
|
|
|
|
Max Daily Work Shift
|
6 shifts/24 hrs working
|
|
|
|
Max Daily Output
|
96 pcs/24 hrs
|
|
|
|
Min Air Compressor
|
Air Displacement:2m³/min;Work Prssure:1.0Mpa;Power:15KW
|
|
|
|
Min Air Storage
|
Storage Volume:1m³;Work Prssure:1.0Mpa
|
|
|
We have difffierent output capacity for your choice,Just tell us your working needs,We can design for you!
Benefits of Old Tire Retreading
1.The benefits of retreading are that it is both environmentally friendly and cost-efficient! When the tread has worn off, only about 20% of the tyre is used up. The carcass, which represents about 80% of the tyre's value, can be re-rubberized for a "newtyre life".
2.To produce a truck or bus tyre requires about 60-80 kg of rubber mixture. Retreading the tyre takes only about 15 kg of rubber. A considerable amount of raw materials can therefore be saved. In the EU, this equates to more than 300,000 tones per year!
3.To produce a car tyre requires about 28 litres of crude oil. To retread a car tyre, on the other hand, only 5.5 litres of oil are needed.
CROWNS MACHINERY
CROWNS MAIN PRODUCTS
* Rubber mixing equipment: kneader mixing machine, bucket,mixing mill, bale cutter
* Rubber vulcanizing machine: Four-column press, Frame press, E-type press,vacuum molding press,injection press, tire and tube press, Belt vulcanizing press.
Rubber calendaring machine: 2 roll, 3 roll, 4 roll calender, calendaring line
Rubber extruding equipment: Hot feed extruder,cold feed extruder, belt extrudingand calendering line
* Rubber ,silicone,plastic products prdocuction line
* Automatic and semi-automatic waste tire recycling equipment
* Used tyre retreading machine line
* Rubber vulcanizing machine: Four-column press, Frame press, E-type press,vacuum molding press,injection press, tire and tube press, Belt vulcanizing press.
Rubber calendaring machine: 2 roll, 3 roll, 4 roll calender, calendaring line
Rubber extruding equipment: Hot feed extruder,cold feed extruder, belt extrudingand calendering line
* Rubber ,silicone,plastic products prdocuction line
* Automatic and semi-automatic waste tire recycling equipment
* Used tyre retreading machine line
Q1: Where is your factory located?
A1: Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China
Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer’s requirement.
Q3: How about the quality control in your factory?
A3: Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water
.electrical,machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7: The whole machine’s warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, CROWNS will provide one set standard spare parts to customer according to different machines
A1: Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China
Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer’s requirement.
Q3: How about the quality control in your factory?
A3: Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water
.electrical,machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7: The whole machine’s warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, CROWNS will provide one set standard spare parts to customer according to different machines
