-Spacing saving.
Pulleys with outsides diameters as small as 0.8 inch can be used.
- Product Details
- {{item.text}}
Quick Details
-
Type:
-
V-BELT
-
Material:
-
Rubber
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PIONWAY
-
Product name:
-
Poly V Belt
-
Raw Material:
-
CR/EPDM
-
Keyword:
-
Poly V Fan Belt
-
Guarantee:
-
60000-100000KM
-
Length standard:
-
Le
-
Cord:
-
Polyester Cord
-
Certificate:
-
ISO9001
-
MOQ:
-
60PCS/SIZE
-
Quality:
-
High Level
-
Application:
-
engine or car fans
Quick Details
-
Warranty:
-
3 years
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining
-
Standard or Nonstandard:
-
Standard
-
Type:
-
V-BELT
-
Material:
-
Rubber
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PIONWAY
-
Product name:
-
Poly V Belt
-
Raw Material:
-
CR/EPDM
-
Keyword:
-
Poly V Fan Belt
-
Guarantee:
-
60000-100000KM
-
Length standard:
-
Le
-
Cord:
-
Polyester Cord
-
Certificate:
-
ISO9001
-
MOQ:
-
60PCS/SIZE
-
Quality:
-
High Level
-
Application:
-
engine or car fans
Products Description

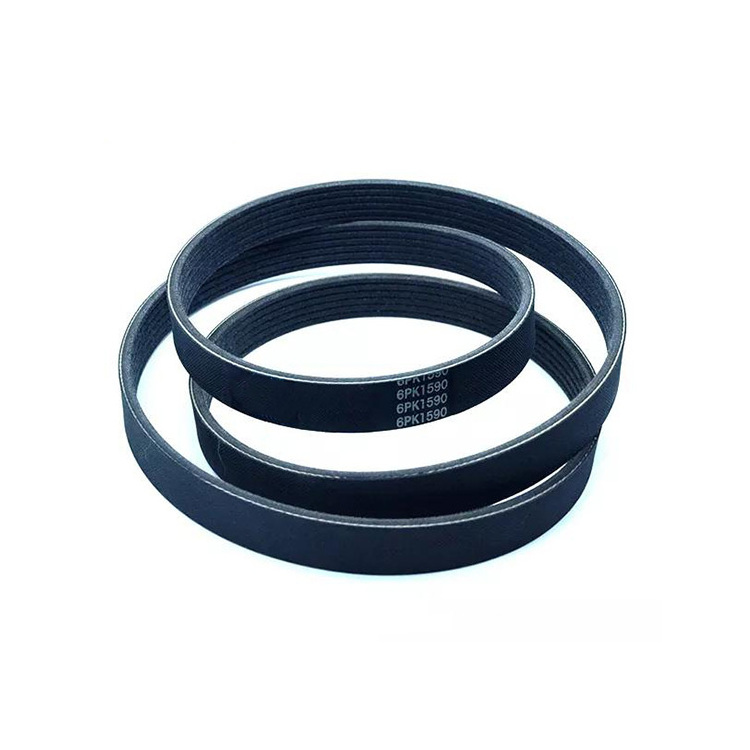

High Quality Industral transmission Poly Rubber V Belt
Poly belts designed for high speed and high drive ratio applications,suited for applications such as appliances, outdoor power equipment, roller conveyors, machine tools.
Poly rubber v belt
Features:
-High horsepower rating.
V Ribbed Belts have a 30-50% horsepower rating higher than Classical V-Belts.
- Widely used in Power Transmission, Auto parts, Fans water
pumps, Driving alternators,Super Market, and so on.
pumps, Driving alternators,Super Market, and so on.
Product Paramenters
|
Polyester cord
|
PH
|
PJ
|
PK
|
PL
|
PM
|
|
Rib pitch (mm)
|
1.6
|
2.34
|
3.56
|
4.7
|
9.4
|
|
Belt height (mm)
|
2.6
|
3.8
|
4.8
|
7.5
|
14.5
|
|
Outer length (mm)
|
La=Li+16
|
La=Li+24
|
La=Li+30
|
La=Li+47
|
La=Li+91
|
|
Angle
|
40
|
40
|
40
|
40
|
40
|
|
Weight (kgs)
|
0.008
|
0.009
|
0.021
|
0.04
|
0.12
|
|
Polyester cord
|
MPH
|
MPJ
|
MPK
|
MPL
|
|
Rib pitch (mm)
|
1.6
|
2.34
|
3.56
|
4.7
|
|
Belt height (mm)
|
2.6
|
3.8
|
4.8
|
7.5
|
|
Outer length (mm)
|
La=Li+16
|
La=Li+24
|
La=Li+30
|
La=Li+47
|
|
Angle
|
40
|
40
|
40
|
40
|
|
Weight (kgs)
|
0.008
|
0.009
|
0.021
|
0.04
|
|
Polyester cord
|
EPH
|
EPJ
|
EPK
|
|
Rib pitch (mm)
|
1.6
|
2.34
|
3.56
|
|
Belt height (mm)
|
2.6
|
3.8
|
4.8
|
|
Outer length (mm)
|
La=Li+16
|
La=Li+24
|
La=Li+30
|
|
Angle
|
40
|
40
|
40
|
|
Weight (kgs)
|
0.008
|
0.009
|
0.021
|
Application
