Quick Details
-
Table Travel (Z) (mm):
-
250
-
Brand Name:
-
AOKE
-
Year:
-
2024
-
Weight (KG):
-
3000 KG
-
Application:
-
Waterjet Cutting Machine
-
Keyword:
-
Water Jet Cnc Cutting Machine
-
Cutting mode:
-
3 Axis / 5 Axis
-
Size:
-
Custom-made
-
Cutting material:
-
Metal.alloy.aluminum.stone.glass.or Soft Materials
-
Function:
-
High Pressure Water Cutting
-
Pump type:
-
Waterjet Intensfier Pump
-
Control system:
-
WEIHONG Software
-
HS Code:
-
8456500000
-
CNC System & Software:
-
WEIHONG CNC
Quick Details
-
Place of Origin:
-
Shandong, China
-
Table Travel (X) (mm):
-
3000
-
Table Travel (Y) (mm):
-
1500
-
Table Travel (Z) (mm):
-
250
-
Brand Name:
-
AOKE
-
Year:
-
2024
-
Weight (KG):
-
3000 KG
-
Application:
-
Waterjet Cutting Machine
-
Keyword:
-
Water Jet Cnc Cutting Machine
-
Cutting mode:
-
3 Axis / 5 Axis
-
Size:
-
Custom-made
-
Cutting material:
-
Metal.alloy.aluminum.stone.glass.or Soft Materials
-
Function:
-
High Pressure Water Cutting
-
Pump type:
-
Waterjet Intensfier Pump
-
Control system:
-
WEIHONG Software
-
HS Code:
-
8456500000
-
CNC System & Software:
-
WEIHONG CNC

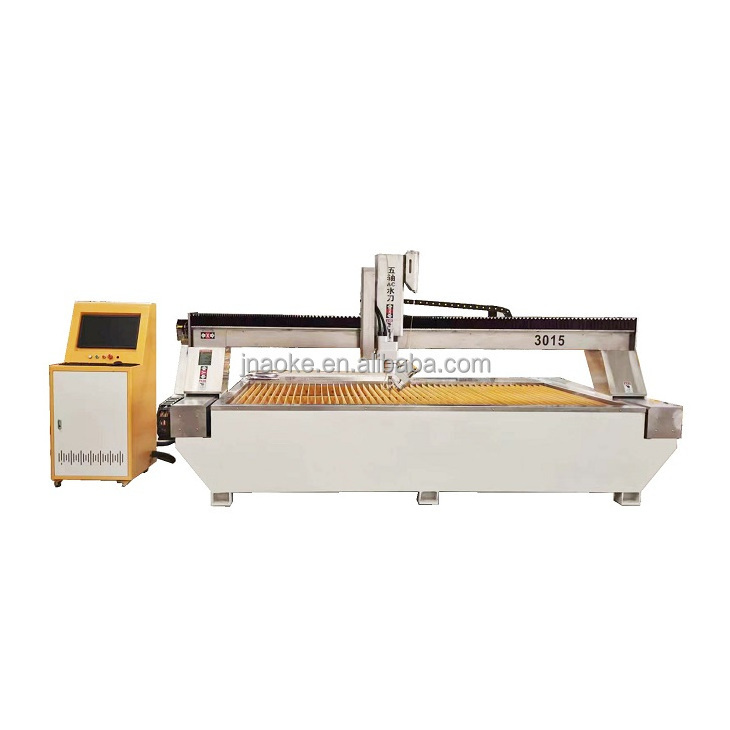

Cnc water jet cutting machine 3015 Water jet Cutting services with three or five axis water granite jet cutting machine
|
SPECIFICATIONS FOR WATER JET CUTTING MACHINE |
|
|
Max. pressure |
420MPA |
|
Max. flow rate |
3.7L / min |
|
Electrical source voltage |
3 phases 220/380 Voltage, 50/60Hz, 37KW, 50HP |
|
Control accuracy |
±0.01mm |
|
Max. oil discharge |
206L/min |
|
Max. delivery capacity of oil pump |
106L / min |
Machine Parameters of AOKE Water Jet Tile Cutting Machine
Maximum cutting thickness of metal: 40mm
Maximum cutting thickness of ceramic tile, glass, marble and granite: 50mm
Maximum cutting size: 2000mm*1500mm
Package size: 3.1m*2.35m*1.65m
Machining accuracy: ± 0.1mm
Maximum feeding speed of polished tile: 1.8-2m/min; 800mm tile 1.5-1.8m/min
Power supply :220V/380V/415V, 50/60hz
Computer drawing software: Auto CAD drawing software
Operating system: Windows XP
Z-axis travel: 130mm
Jewel nozzle diameter: 0.33mm
Nozzle size of sand pipe: 1.0mm
Maximum displacement: 11.1L/min
Maximum sand usage: 190g/min
Maximum stroke: 60 strokes /min
Hydraulic oil: no.46 or no.68 (Great Wall hydraulic oil)
The complete set of configuration includes:
1. water jet cutting table
2. CNC water jet control system
3. abrasive supply system
4. water jet supercharger system
5. circulation cooling system
Vulnerable parts of AOKE Water Jet Tile Cutting Machine
gem, sand pipe, high pressure water ring, water switch sealing ring, water switch thimble, water switch spherical valve pad, valve core, valve pad, garnet sand
