Quick Details
-
Power:
-
4.5W
-
Productivity:
-
100-150mg/hr
-
Weight (KG):
-
1.1 kg
-
Type:
-
Ozone Generator
-
Power Source:
-
Electrical
-
External gas source:
-
2-3L/min@air; 0.5-2L/min@oxygen
-
Generating Method:
-
Corona discharge
-
Voltage (V):
-
AC220V-230V AC110V-120V
-
Housing material:
-
Flame retardant plastic
-
Outlet Connection:
-
6mm barbed connector
-
Hose+Air Stone(optional):
-
75mm
-
Accessories:
-
Hose+bubble stone(optional)
-
Ozone output:
-
50-100mg/hr with air source
Quick Details
-
Core Components:
-
ozone generator
-
Place of Origin:
-
Shaanxi
-
Brand Name:
-
AMBOHR
-
Power:
-
4.5W
-
Productivity:
-
100-150mg/hr
-
Weight (KG):
-
1.1 kg
-
Type:
-
Ozone Generator
-
Power Source:
-
Electrical
-
External gas source:
-
2-3L/min@air; 0.5-2L/min@oxygen
-
Generating Method:
-
Corona discharge
-
Voltage (V):
-
AC220V-230V AC110V-120V
-
Housing material:
-
Flame retardant plastic
-
Outlet Connection:
-
6mm barbed connector
-
Hose+Air Stone(optional):
-
75mm
-
Accessories:
-
Hose+bubble stone(optional)
-
Ozone output:
-
50-100mg/hr with air source
Product Description

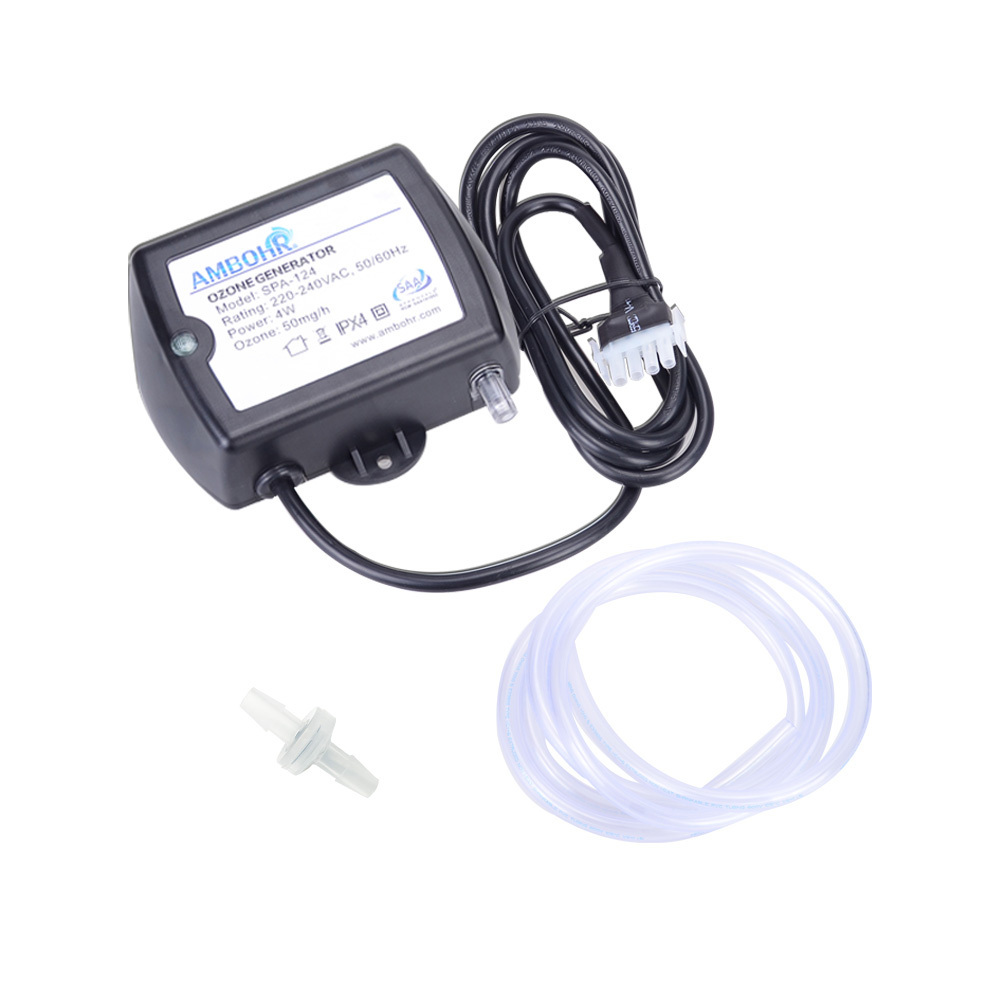

AMBOHR SPA-124 50mg/hr Ozone Generator for SPA
The SPA-series of AMBOHR ozone generator cells use ozone core discharge of invention patent, including the integration design of ozone generator tube and ozone driving circuit (without air pump), they can provide stable and efficient ozone output, easy to install and maintain.
|
TECHNICAL DATA
|
|
|
|
Model No
|
SPA-124
|
|
|
Ozone Output
|
50-100mg/hr @ air
|
|
|
External gas source
|
1-3L/min@air
|
|
|
Ozone Generating Method
|
Corona Discharge
|
|
|
Electrical
|
DC12V-AC220V-AC110V; 4W
|
|
|
Outlet Connection
|
Φ6mm barbed connector
|
|
|
Case
|
Flame retardant plastics
|
|
|
Accessories
|
Hose+Air Stone(optional)
|
|
|
Dimension(L*W*H)
|
4.3”*3”*1.4”(110*75*35 mm)
|
|
|
Installation Dim
|
3.2”(82 mm)
|
|
|
Weight
|
0.4kg
|
|
Features:
New high effificiency dielectric barrier discharge technology
Forced cooling
Integrated design two in one unit with driving circuit and ozone generator tube
Stable& efficient output
Forced cooling
Integrated design two in one unit with driving circuit and ozone generator tube
Stable& efficient output
Low noise Long working life
Benefifits:
Good dispersion
Without ozone residual and secondary pollution
Without ozone residual and secondary pollution
Application:
Washing machine, dishwasher, water machine, ,coin-operated sale water, ,aquatic animals, the spa machine, surfing bathtub, slimmer.
Medical apparatus and instruments, air purifier, disinfection cabinet,refrigerator, dryer, shoe ark, wardrobe, beauty equipment, oxygen machine, toilet, incubator, car.
Medical apparatus and instruments, air purifier, disinfection cabinet,refrigerator, dryer, shoe ark, wardrobe, beauty equipment, oxygen machine, toilet, incubator, car.
WHY AMBOHR OZONE GENERATORS ARE SUPERIOR
Powerful ozone generators are designed for any machine.
Unique design Ozone Cell with solid High shock, vibration and drop resistant stainless-steel electrode for exceptional longevity
Thick, built-in mounting tabs for easy installations.
Compact and smaller footprint.
Double Insulation rated.
High shock, vibration and drop resistant.
Cool operation with low heat generation.
Super low production & field failure rates.
Enclosure & inlet/outlet barbs are made with UV /Ozone resistant plastics.
Unique design Ozone Cell with solid High shock, vibration and drop resistant stainless-steel electrode for exceptional longevity
Thick, built-in mounting tabs for easy installations.
Compact and smaller footprint.
Double Insulation rated.
High shock, vibration and drop resistant.
Cool operation with low heat generation.
Super low production & field failure rates.
Enclosure & inlet/outlet barbs are made with UV /Ozone resistant plastics.
Product Application
HEALTH IS OUR COMMON NEED
AMBOHR ozone generator - your best health assistant!
Every one of us needs clean water, pure air and non-toxic food, because only in this way can we live healthily and happily.
Water and Waste Water-
Ozone is widely used to treat bacteria, organic and mineral contaminants in drinking water, water for agriculture and recycled waste water.
Ozone in the Home -
AMBOHR ozone generator is ideally suited to use in the home, it can transform a room like a breath of fresh air. Lingering ‘living’ odours from sickness, pets, smoking, sports equipment, shoes and cooking can be removed simply by an electrical outlet. Mould and mildew can be controlled and even allergies to dust mites can be helped.
Ozone in Fruit and Vegetable Washing and Storage
- Ozone water is a convenient way to wash fruits and vegetables. The effect of ozone is independent of the pH of the water. Ozone does not leave any residue on the product that could affect taste or shorten shelf life. Ozone has no ongoing chemical purchase or disposal costs. Ozone doesn't leave any residue in the water, so just filter and reuse. The use of gaseous ozone can also extend the shelf life of refrigerated products. Ozone in the air in the refrigerator can retard the growth of microorganisms in the air and on the surface of agricultural products.
COMPREHENSIVE PROTECTION
Powerful ozone generators
are designed for any equipment
Related Products
Certifications
Production Flow
YOU MAKE REQUESTS, WE DO THE REST.
For more than 20 years，we support Global partners with our experience and our qualified, multilingual staff. Partnership and long-term cooperation are very important to us.
We work closely with our partners to ensure that we understand and understand the needs of the market and are able to provide a quick solution to your needs. You too can benefit from an effective partnership with AMBOHR.
Values Driven
Integrity in all our dealings Respect for team(s) and people Contributing to the success of our customers Risk-taking, innovation and learning Long-term perspective 100% accountability / 0 excuses.
Integrated Manufacturing
Vertical integration is the cornerstone of AMBOHR as it places innovation, development, design, manufacturing, testing, and shipping all within our control. With Everything Under Control, we can ensure the highest quality and customer satisfaction.
Limited Lifetime
Warranty With total control over engineering and manufacturing, we are able to
guarantee the highest quality products on the market—products free of defects in material, workmanship, and design.
Packing&Shipping
Your Request - My Responsibility
We support all kinds of transportation, whether by air, sea, land, etc.
We choose standard export packing cases to ensure that the goods are delivered to you in good condition.
Whatever requirements you may have, we will do our best to do it well.
FAQ
Q1: What's your warranty ?
A1: The warranty is 1 years and we deliver new and faultless products. Also, we are responsible to repair and replace the defective ones in the warranty period, meanwhile we provide life-long free technical support and maintenance.
Q2: How to proceed an order Ozone Generator?
A2: Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production.
Q3: What's the standard of package?
A3: Inner box and out carton are made as per international standard and we can make special design according to customer's need. And if necessary,goods will be packed by pallet to avoid any damage.
Q4: Could you do OEM for us?
A4: Sure,OEM is acceptable, and please supply with the brand letter of Authorization.
Q5: What is the payment terms?
A5: T.T,Western Union and L/C is acceptable. Moreover, you can place order on Alibaba though Trade Assurance.
Q6: What' your advantages?
A6: 1. We can provide the most comprehensive Ozone Generator products.
2. We have the professional engineer team which can provide free consultation and design services. the customize will be according to your drawings or samples.
3. Your inquire will be replied within 6 hours any time.
4. Our Freight forwarders are faster,safer,and more convenient, and we can make sure the delivery on time.
