Quick Details
-
Brand Name:
-
HRUI
-
Model Number:
-
HR-SWG1080
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-

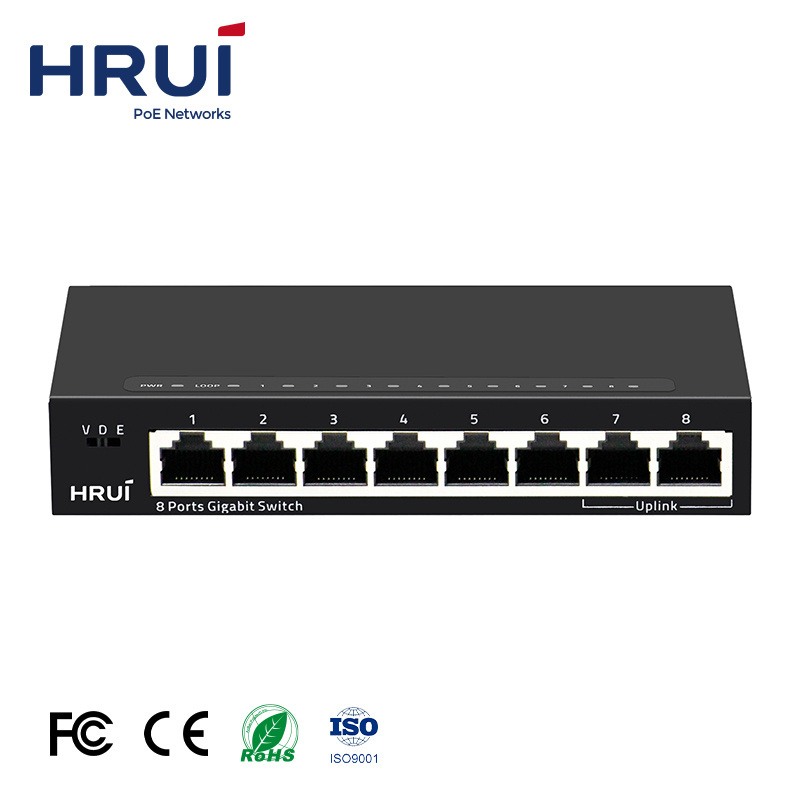

8 Ports Gigabit Intelligent Ethernet Switch
-
Ethernet Port:
-
8 Gigabit RJ45 Ports
-
Power Voltage:
-
AC 100-240 V
-
DIP Switch:
-
VLAN / Default / Extend
-
Bandwidth:
-
16Gbps
-
Throughput:
-
11.9Mpps
-
Working Temperature:
-
-10~50°C
-
Dimensions (W x D x H):
-
137*77*25mm
-
Weight:
-
0.3KG
-
Certification:
-
CE FCC RoHs
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
16Gbps
-
Brand Name:
-
HRUI
-
Model Number:
-
HR-SWG1080
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
8 Ports Gigabit Intelligent Ethernet Switch
-
Ethernet Port:
-
8 Gigabit RJ45 Ports
-
Power Voltage:
-
AC 100-240 V
-
DIP Switch:
-
VLAN / Default / Extend
-
Bandwidth:
-
16Gbps
-
Throughput:
-
11.9Mpps
-
Working Temperature:
-
-10~50°C
-
Dimensions (W x D x H):
-
137*77*25mm
-
Weight:
-
0.3KG
-
Certification:
-
CE FCC RoHs
Products Description
The 8 ports Gigabit intelligent Ethernet switch adopts high-quality and high-speed network ICs,
8*RJ45 10/100/1000Mbps Ports
, can provide seamless connection for 10/100/1000M Ethernet, supports three working modes, one-key smart switch, supports VLAN, Default, extend three modes, support auto MDI/MDIX, support Loop alarm, easy to manage and maintain, panel indicators to monitor working status and help fault analysis the product can be widely used in security network video surveillance, hotel, campus, small and medium-sized enterprise network engineering and other occasions.
Product Paramenters
|
I/O Interface
|
|
|
|
|
||||
|
Power
|
DC 5V
|
|
|
|
||||
|
Ethernet
|
8*RJ45 10/100/1000Mbps Ports
|
|
|
|
||||
|
Performance
|
|
|
|
|
||||
|
Switching Capacity
|
16Gbps
|
|
|
|
||||
|
Throughput
|
11.9Mpps
|
|
|
|
||||
|
Packet Buffer
|
2.5M
|
|
|
|
||||
|
MAC Address
|
1K
|
|
|
|
||||
|
Jumbo Frame
|
2K
|
|
|
|
||||
|
Transfer Mode
|
Store and forward
|
|
|
|
||||
|
MTBF
|
100000
|
|
|
|
||||
|
Standard
|
|
|
|
|
||||
|
Network Protocol
|
IEEE802.3 (10Base-T)
IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
|
|
|
||||
|
Industry Standard
|
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)、 EN61000-4-4 (EFT) EN61000-4-5(Surge) |
|
|
|
||||
|
Network Medium
|
10Base-T : Cat3,4,5 or above UTP(≤100m)
100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or aboveUTP(≤100m) |
|
|
|
||||
|
Protection
|
|
|
|
|
||||
|
Certificate
|
CE, FCC, RoHS
|
|
|
|
||||
|
Environment
|
|
|
|
|
||||
|
Working Environment
|
Working Temperature: -10~50°C
Storage Temperature: -40~70°C Working Humidity: 10%~90%，non-condensing Storage Temperature:5%~90%，non-condensing Working Height: Maximum10,000 feet Storage heigh: Maximum 10,000 feet |
|
|
|
||||
|
Physical Features
|
|
|
|
|
||||
|
Dimension
|
Product Size：137*77*25mm
Package Size：175*120*63mm Product Net-Weight：0.3kg Product Gross-Weight：0.5kg |
|
|
|
||||
|
Packing Info
|
MEAS：505*320*400mm
Packing Qty：40 unit Packing weight：21KG |
|
|
|
||||
|
Power Voltage
|
Power Input Voltage ：AC 100-240 V
Switch Input Voltage:：DC 5 V1A |
|
|
|
||||
|
Package List
|
Switch 1 pcs
Power Adpater 1 pcs
User manual 1 pc
Warranty card 1 pc
|
|
|
|
||||
|
Indication
|
|
|
|
|
||||
|
DIP Switch
|
VLAN: Port Isolation, 1-4 ports are isolated each other, all communicate with uplink port 5;
Default: Default mode, all ports communicate with each other; Extend: Monitor Mode, 1-4 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode, port 5 as uplink port; |
|
|
|
||||
|
LED Indicators
|
PWR、Loop、Link
|
|
|
|
||||
