Quick Details
-
Output Speed:
-
0.3~140rpm
-
Weight (KG):
-
35 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KINGEAR
-
gear arrangement:
-
cycloidal
-
Material of gear:
-
20CrMnTi with high precision grinding
-
gear surfcae finishing:
-
between16.-3.2μm
-
Material of shaft:
-
40Cr with carburizing and quenching
-
Warranty:
-
12months
-
Input format:
-
IEC flange, direct with motor, shaft input
-
Mounting Position:
-
Horizontal (foot mounted) or Vertical (flange mounted)
-
Gear Ratio:
-
11,17,23,29,35,43,59,71, 87
-
OEM service:
-
available
-
Application:
-
packing machine, food process, lift, crane, agitator, feeder
Quick Details
-
Gearing Arrangement:
-
Cycloidal
-
Output Torque:
-
up to 20000Nm
-
Input Speed:
-
<2000rpm
-
Output Speed:
-
0.3~140rpm
-
Weight (KG):
-
35 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KINGEAR
-
gear arrangement:
-
cycloidal
-
Material of gear:
-
20CrMnTi with high precision grinding
-
gear surfcae finishing:
-
between16.-3.2μm
-
Material of shaft:
-
40Cr with carburizing and quenching
-
Warranty:
-
12months
-
Input format:
-
IEC flange, direct with motor, shaft input
-
Mounting Position:
-
Horizontal (foot mounted) or Vertical (flange mounted)
-
Gear Ratio:
-
11,17,23,29,35,43,59,71, 87
-
OEM service:
-
available
-
Application:
-
packing machine, food process, lift, crane, agitator, feeder
Product Description

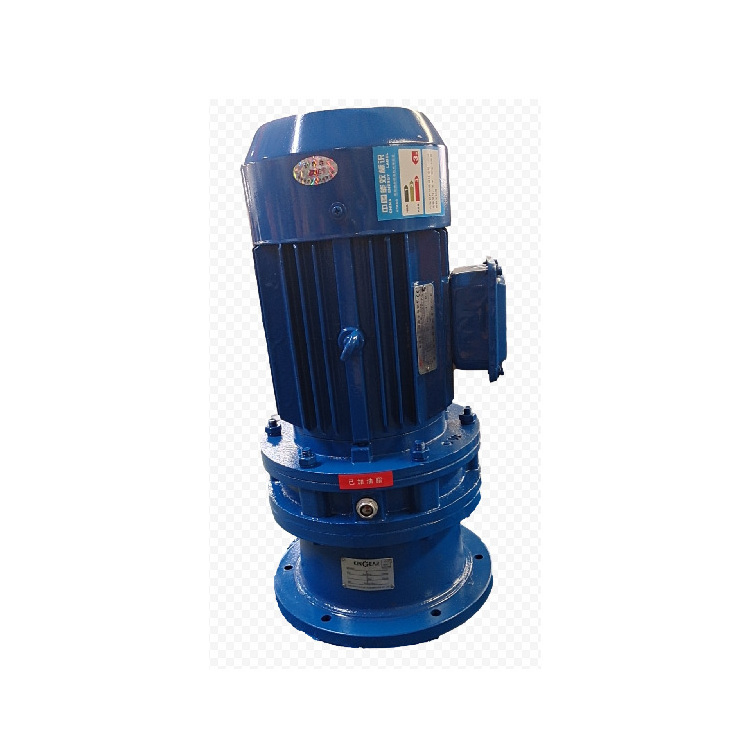

Cycloidal gearbox
Cycloid reducer is a cycloid needle teeth meshing planetary transmission principle drive models, is an ideal transmission with many advantages:
|
Houshing:
|
Casting Iron
|
|
|
|
Gearset:
|
Cycloid wheel & Pin wheel
|
|
|
|
Input Configurations:
|
Equipped with Electric Motors (AC Motor, Brake Motor, Explosion-proof Motor, Regulated Speed Motor, Hydraulic Motor)
|
IEC-normalized Motor Flange, Keyed Solid Shaft Input
|
|
|
Output Configurations:
|
Keyed Solid Shaft Output
|
|
|
|
|
|
|
|
Feature One
Economic but High efficiency, the average efficiency is over 90%
Large reduction ratio, 1-stage ratio 9~87, 2-stage ratio 121~1849, larger reduction ratio is available by 3-stage or multistage
combinations.
combinations.
1 Stage Ratio: 9, 11, 17, 23, 29, 35, 43, 59, 71, 87
2 Stage Ratio: 121, 187, 289, 385, 473, 595, 731, 989, 1225, 1849
Low speed, low frequency: mainly used for heavy load, low speed and no frequent work place
1 Stage Ratio: 9, 11, 17, 23, 29, 35, 43, 59, 71, 87
