- Product Details
- {{item.text}}
Quick Details
-
Range of Spindle Speed(r.p.m):
-
40 - 1400 r.p.m
-
Width of bed (mm):
-
360
-
Max. Turned Length (mm):
-
1000 mm
-
Spindle Motor Power(kW):
-
5.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Model Number:
-
C6250
-
Voltage:
-
110V/220V/380V/415V
-
Dimension(L*W*H):
-
2400*1140*1650mm
-
Weight (KG):
-
1350 KG
-
Marketing Type:
-
Hot Product 2022
-
Name:
-
metal lathe for sale craigslist C6250 dalian lathe machines
-
Max.Swing over bed:
-
500mm
-
Max. rotating diameter:
-
300mm
-
Spindle hole:
-
52mm
-
Spindle tap:
-
MT6
-
Metric threads range(Kinds):
-
0.5-14mm (18 Kinds)
-
Inch threads range(Kinds):
-
2-40/inch (28 Kinds)
-
Compound rest travel:
-
150mm
-
Dia.of tailstock sleeve:
-
75mm
-
Travel of tailstock sleeve:
-
5.5V
Quick Details
-
Max. Length of Workpiece (mm):
-
1000
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
52
-
Range of Spindle Speed(r.p.m):
-
40 - 1400 r.p.m
-
Width of bed (mm):
-
360
-
Max. Turned Length (mm):
-
1000 mm
-
Spindle Motor Power(kW):
-
5.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Model Number:
-
C6250
-
Voltage:
-
110V/220V/380V/415V
-
Dimension(L*W*H):
-
2400*1140*1650mm
-
Weight (KG):
-
1350 KG
-
Marketing Type:
-
Hot Product 2022
-
Name:
-
metal lathe for sale craigslist C6250 dalian lathe machines
-
Max.Swing over bed:
-
500mm
-
Max. rotating diameter:
-
300mm
-
Spindle hole:
-
52mm
-
Spindle tap:
-
MT6
-
Metric threads range(Kinds):
-
0.5-14mm (18 Kinds)
-
Inch threads range(Kinds):
-
2-40/inch (28 Kinds)
-
Compound rest travel:
-
150mm
-
Dia.of tailstock sleeve:
-
75mm
-
Travel of tailstock sleeve:
-
5.5V

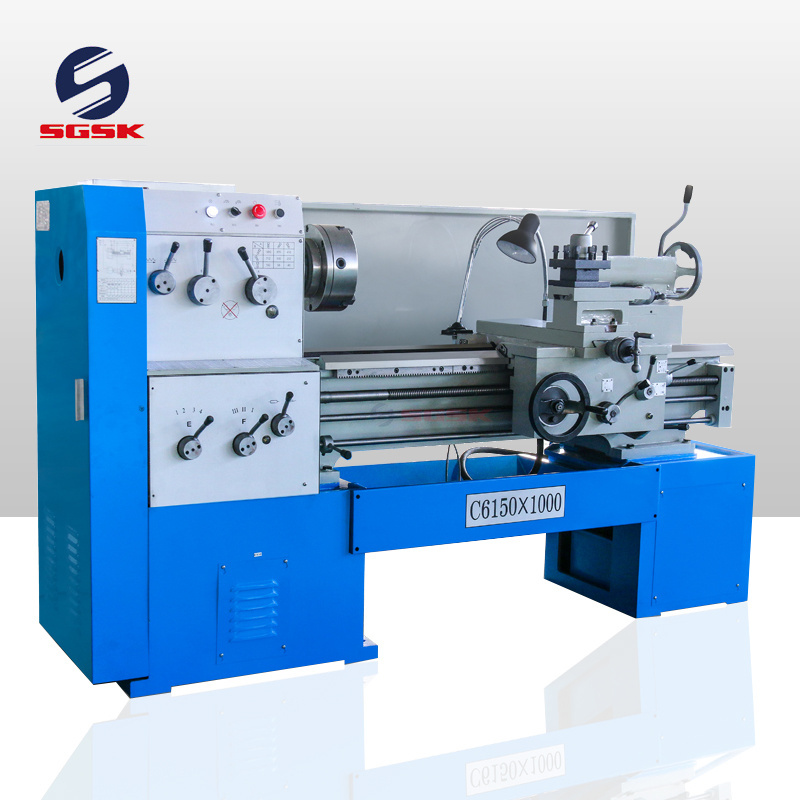

Metal lathe for sale craigslist C6250 dalian lathe machines
Products Description
Details Display
Product description:
1.Bed rail by super audio quenching and precision grinding.
2.Precision grinding of the main shaft box, low noise.
3.More thread type.
4.Electrical safety performance is good, high reliability.
5.With electromagnetic brake, the color of available options.
|
Specifications
|
|
C6250
|
|
|
Capacity
|
Max.Swing over bed
|
500mm
|
|
|
|
Max. rotating diameter
|
300mm
|
|
|
|
Center distance
|
750、1000、1500、2000mm
|
|
|
|
Spindle hole
|
52mm
|
|
|
Spindle
|
Spindle nose
|
ISO-C6
|
|
|
|
Spindle tap
|
MT6
|
|
|
|
Spindle speeds(Number)
|
36-1400rpm (12 Steps)
|
|
|
Feed
|
Metric threads range（Kinds）
|
0.5-14mm (18 Kinds)
|
|
|
|
Inch threads range(Kinds)
|
2-40/inch (28 Kinds)
|
|
|
|
Moudle threads range(Kinds)
|
0.25-3.5mπ (17 Kinds)
|
|
|
|
Compound rest travel
|
150mm
|
|
|
|
Cross slide travel
|
180mm
|
|
|
|
Cross-section size of toolshank
|
20×20mm2
|
|
|
Tailstock
|
Dia.of tailstock sleeve
|
75mm
|
|
|
|
Taper of tailstock sleeve
|
MT5
|
|
|
|
Travel of tailstock sleeve
|
160mm
|
|
|
Main motor power
|
|
5.5KW
|
|
|
Machine size
(L*W*H mm) |
Overall dimensions for750mm
|
2100×1150×1550mm
|
|
|
|
Overall dimensions for1000mm
|
2350×1150×1550mm
|
|
|
|
Overall dimensions for1500mm
|
2850×1150×1550mm
|
|
|
|
Overall dimensions for2000mm
|
3350×1150×1550mm
|
|
|
Weight(kg)
|
Weight for 750mm
|
1700kg
|
|
|
|
Weight for 1000mm
|
1800kg
|
|
|
|
Weight for 1500mm
|
2000kg
|
|
|
|
Weight for 2000mm
|
2200kg
|
|
