Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Daier
-
Model Number:
-
DS-12B-L
-
Item:
-
DS-12B-L
-
Material:
-
Metal
-
Function:
-
Latching
-
Button Type:
-
Dome
-
Terminal type:
-
2 Pin Terminals
-
Certificate:
-
CE,Rohs
-
Electrical Life:
-
100,000Cycles
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP65, IP65
-
Max. Current:
-
2A, 2A
-
Max. Voltage:
-
36VDC, 36VDC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Daier
-
Model Number:
-
DS-12B-L
-
Item:
-
DS-12B-L
-
Material:
-
Metal
-
Function:
-
Latching
-
Button Type:
-
Dome
-
Terminal type:
-
2 Pin Terminals
-
Certificate:
-
CE,Rohs
-
Electrical Life:
-
100,000Cycles
-
Certification:
-
CE
|
Model
|
DS-12B-L
|
|
Rating
|
2A 36V
|
|
Function
|
Latching ON-OFF
|
|
Sealing/Protection
|
IP65
|
|
Button Shape
|
Dome Button
|
|
Contact Mode
|
1 NO
|
|
Terminal
|
2 Pin Solder Terminal
|
|
Terminal Size
|
2x0.5mm
|
|
Thread
|
M12x0.75mm
|
|
Material
|
Plastic
|
|
Operating Temperature Range
|
-20℃ ~+55℃
|
|
Contact resistance
|
50mΩ MAX.
|
|
Insulation resistance
|
1000MΩ MIN.@500VDC
|
|
Electrical life
|
Operating ≥50,000 cycles
|
Sealed 12 Volt Ring Lighted 12mm OFF-(ON) IP67 Metal Push Button Switch SPST 1NO Flat Top Solder Termianl Push Button Switch
Size

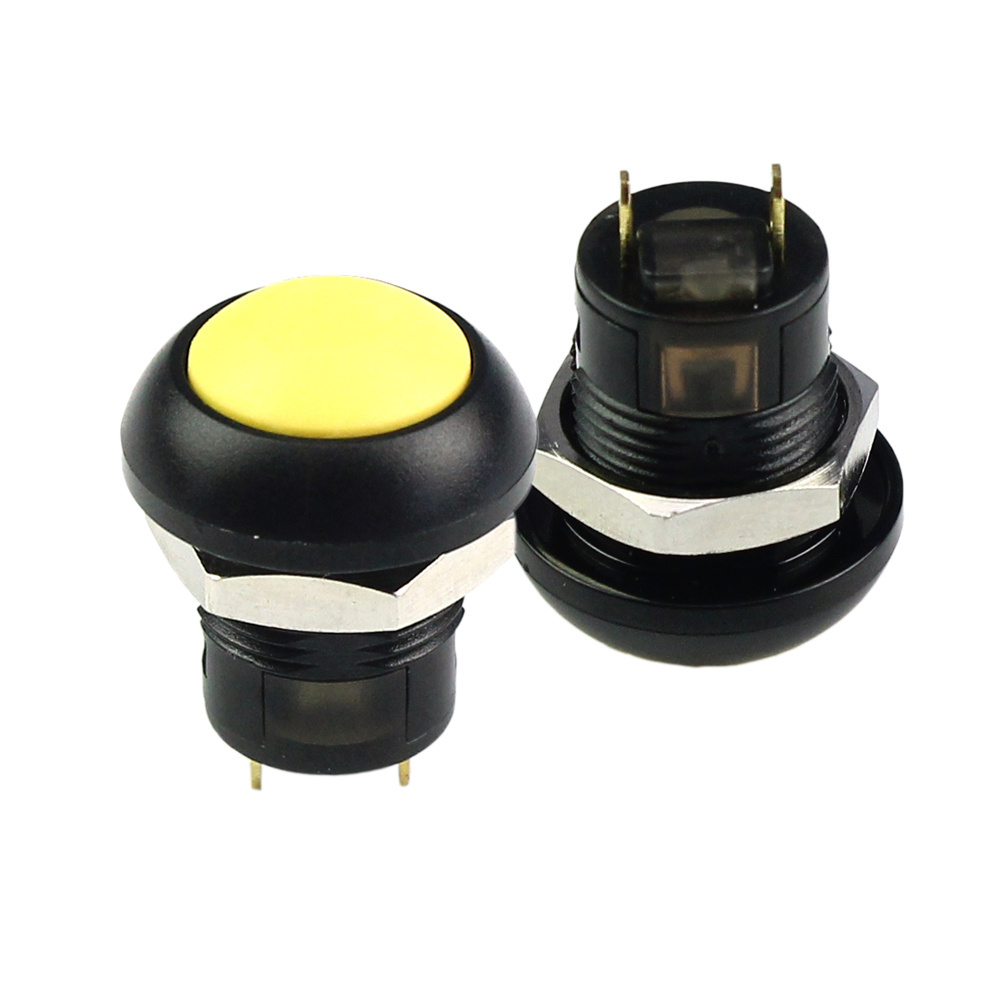

The DS-12B-L switch is 12mm mounting size, M12x0.75mm thread, with dome button, 2 pins
Function
The switch is ON-OFF latching function, when you push switch ON, when you push again switch OFF.
Separate Parts
Switch
consist of switch, waterproof rubber O-ring and hex nut.
CHARACTERISTIC
IP65 Waterproof
As it is full metal appearance and with a rubber ring, the switch achieves IP65 waterproof degree. It can used in wet environment, such as boat control panel, kitchen, outdoors etc. Note that this switch can be used under water.
Long Work Life
The metal shell and push part is not easy to damage.
The Mechanical work Life is 100,000 times
The switch use Silver Alloy contact to make the Electrical Work Life more than 20,000 times.
Pure Led Lights
Switch use Light-lasting lamp beads, bright and dazzling brightness, long service life.
The work life of the led light is more than 40,000 hours.
APPLICATION
Door Bell Push Button
It can use as a door bell, entrance guard push button switch in the outdoors. As it is IP65, it can work relatively harsh environment.
Household Applicances Control
I
t is also a good choice to use it as a replacement switch of household Appliances. Such as coffee machine, table lamp switch, PC switch, Audio switch.
Auto Refit
Use this switch to replace the light switch, horn switch or other control switches in the cars/ boats/ trucks. Bright and comfortable Led
and metal appearance make the switch very cool.
