Quick Details
-
Showroom Location:
-
China mainland
-
Voltage:
-
380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAPENG
-
Dimension(L*W*H):
-
1650*1450*1300mm
-
Weight:
-
1800 KG
-
Max feeding width:
-
1600mm
-
Speed:
-
60M/min
-
Main engineer power:
-
3kw
-
Feeding diameter:
-
800mm
-
Rewinding diameter:
-
450mm
-
Presicion:
-
+/_0.1mm
-
Computerized:
-
Yes
-
Power(W):
-
3KW
Quick Details
-
Packaging Type:
-
Film, Foil
-
Packaging Material:
-
Paper, Plastic
-
Driven Type:
-
Electric
-
Showroom Location:
-
China mainland
-
Voltage:
-
380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAPENG
-
Dimension(L*W*H):
-
1650*1450*1300mm
-
Weight:
-
1800 KG
-
Max feeding width:
-
1600mm
-
Speed:
-
60M/min
-
Main engineer power:
-
3kw
-
Feeding diameter:
-
800mm
-
Rewinding diameter:
-
450mm
-
Presicion:
-
+/_0.1mm
-
Computerized:
-
Yes
-
Power(W):
-
3KW

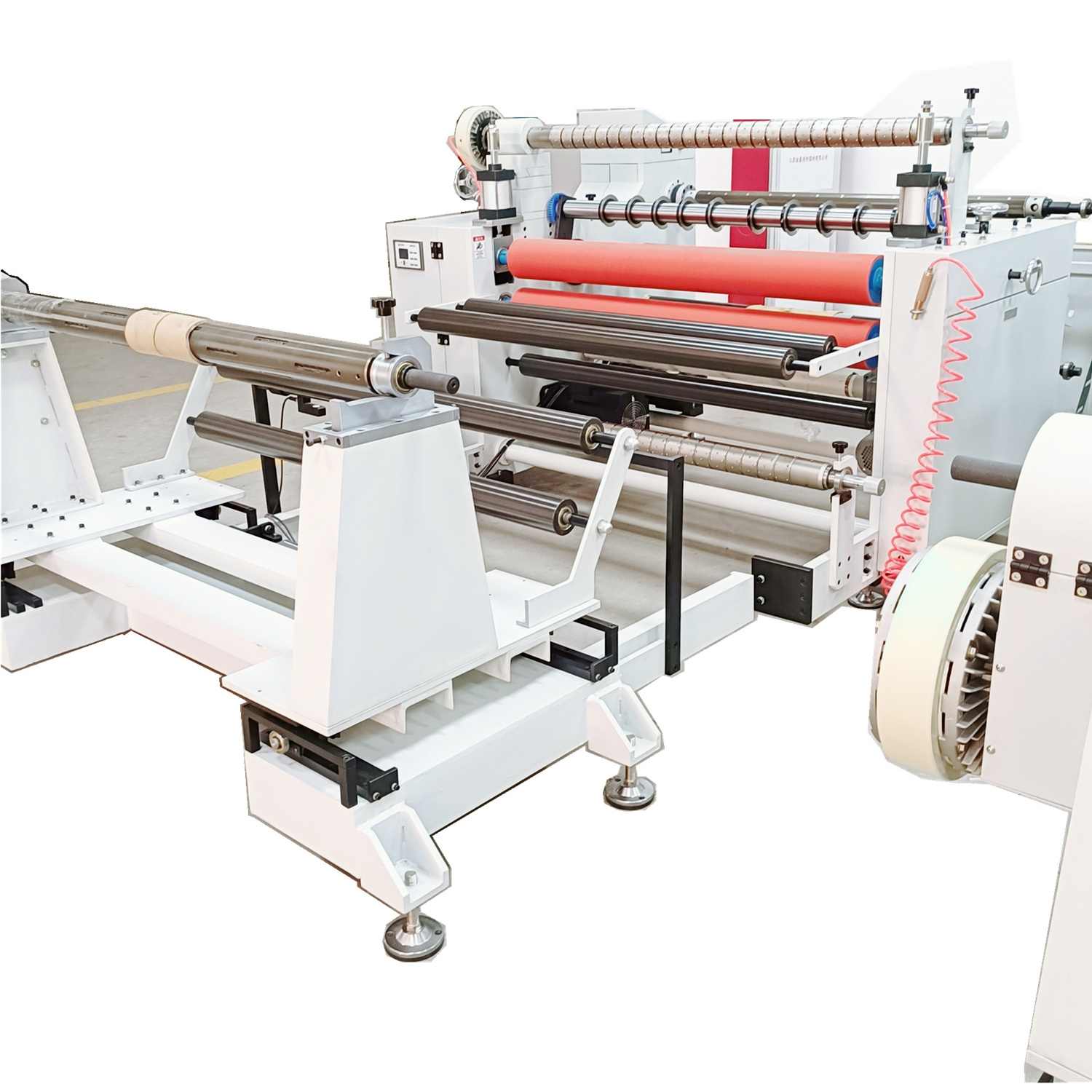

DP-1600 Adhestive Tape and Protective Film Laminating Machine
Functional characteristics:
Electric Laminating machine Complex for the sticking of material withou tbase glue and other materials .
This machine is applicable to the Laminating of material of wide breadth ,and characterized by automatic powder brake controlling over the unreeing tension ,frequency change stepless regulation ,and magnetic power braken's constant torque controlling over the winding ension ,and therefore ,it is fast in lamination speed and simple to operate,hence a necessary equipment matching the lable printing machine.
| Model | 1600 laminating slitting machine |
| Max Feeding Width ( mm ) | 1600 |
| Main Engineer Power | 10 HP |
| Laminating max degree | 200 degree |
| Speed (M/M ) | 0-45M |
| Size ( mm ) | 2600*2200*15300 |
| Weight (kg) | 1200 |
| Feeding diameter ( mm ) | 800 |
| laminating film diameter | 400mm |
| Rewinding diameter ( mm ) | 450 |
| precision ( mm ) | ±0.10 |
| Power | 380V 50HZ |
Funcional characteristics:
This machine is sticking slitting equipment of high precision and high sensitivity,
with inflatable bearing is used for feeding and receiving materials.
Imported magnetic powder clutch is adopted to control the tension.
Imported gas sensitive device is adopted to detect the rectification of rolling,
It is characterized by accurate laminating , fast lamianting speed, ease of operation and maintenance, etc.
Purpose:
It is applicable for the laminating tooling of industrial adhesive tape, cellophane tape,
protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet,fabric, thin foam, cloth, etc.
This mahcine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
