- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Automatic Nozzle Fuel Dispenser With Flow Meter for Service Station
-
Keywords:
-
Fuel Dispenser
-
Fuel Dispenser:
-
5-50L/min
-
Voltage:
-
AC220V/380V, 50Hz/60Hz
-
Min. Measured:
-
5L
-
Motor Power:
-
750w or 1000w
-
Ambient Temp.:
-
-25℃~+55℃
-
Noise:
-
≤70dB(A)
-
Oil Medium:
-
Gasoline, Diesel, Kerosene
-
Ex-proof:
-
Ex db mb II B T4 Gb
Quick Details
-
Place of Origin:
-
Henan
-
Brand Name:
-
Leader Energy
-
Model Number:
-
LD32
-
Product name:
-
Automatic Nozzle Fuel Dispenser With Flow Meter for Service Station
-
Keywords:
-
Fuel Dispenser
-
Fuel Dispenser:
-
5-50L/min
-
Voltage:
-
AC220V/380V, 50Hz/60Hz
-
Min. Measured:
-
5L
-
Motor Power:
-
750w or 1000w
-
Ambient Temp.:
-
-25℃~+55℃
-
Noise:
-
≤70dB(A)
-
Oil Medium:
-
Gasoline, Diesel, Kerosene
-
Ex-proof:
-
Ex db mb II B T4 Gb

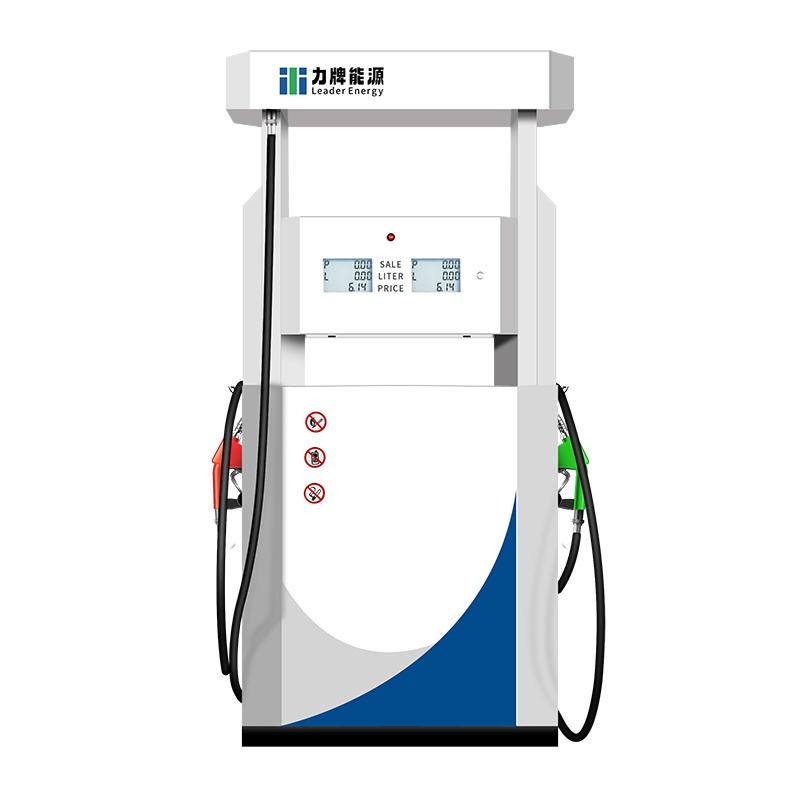

Automatic Nozzle Fuel Dispenser With Flow Meter for Service Station
Products Description
LD Series offers functional and reliable models in single and dual configurations. There are suction type and submersible type, which use rugged components, making them dependable even in harsh field conditions.
|
Flow Range
|
5-50L/min
|
|
Measuring Accuracy
|
±0.3%
|
|
Min. Measured
|
5L
|
|
Noise
|
≤70dB(A)
|
|
Inlet Vacuum
|
≥54KPa
|
|
Applicable Media
|
Gasoline, Diesel, Kerosene, etc
|
|
Unit Price Range
|
0-99.99 price/L
|
|
Single Count Range
|
Volume: 0-9996.00 L
Amount: 0-9996.00 Price
|
|
Cumulative Count Range
|
Volume: 0-99999999.99 L
Amount: 0-99999999.99 Price
|
|
Power Supply
|
AC 380v/220V; 60Hz/50Hz
|
|
Rated Power of Motor
|
750W or 1000W
|
|
Ambient Temperature
|
-25°~+55°
|
|
Relative Humidity
|
≤95%
|
|
Ex-proof Sign
|
Ex db mb II B T4 Gb
|
|
Ex-proof Certificate No.
|
CE22.5196X
|
Product Paramenters
|
PRODUCT SPECIFICATION
|
|
|
|
|
|
|
||||||
|
Model
|
Pump
|
Nozzle
|
Oil Product
|
Display
|
Hose Size
|
Voltage
|
||||||
|
LD32Z111
|
Suction Type
|
1
|
1
|
2
|
3/4"
|
220V/380V, 50Hz/60Hz
|
||||||
|
LD32Z212
|
Suction Type
|
2
|
1
|
4
|
3/4"
|
220V/380V, 50Hz/60Hz
|
||||||
|
LD32Z222
|
Suction Type
|
2
|
2
|
4
|
3/4"
|
220V/380V, 50Hz/60Hz
|
||||||
|
LD32Q111
|
Submersible Type
|
1
|
1
|
2
|
3/4"
|
220V/380V, 50Hz/60Hz
|
||||||
|
LD32Q212
|
Submersible Type
|
2
|
1
|
4
|
3/4"
|
220V/380V, 50Hz/60Hz
|
||||||
|
LD32Q222
|
Submersible Type
|
2
|
2
|
4
|
3/4"
|
220V/380V, 50Hz/60Hz
|
||||||
Please kindly supply us with the bellowing information when sending us an inquiry.
1. Voltage of the motor you need, 220V or 380V?
2. How many types of fuel need to be fueling? 1 product, 2 products, or 3 products.
3. With how many nozzles?
4. Would you like Tatsuno, Tokheim, or Bennett flow meter and pump?
5. How many sets you may need?
