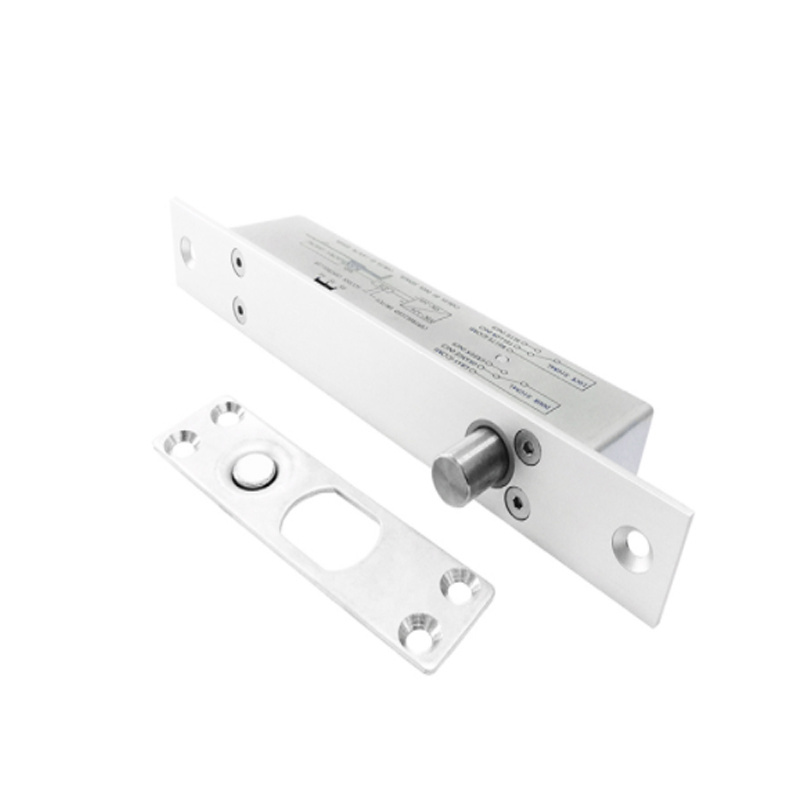

this Bolt is Locked when energizedIn order to meet with special security standard . The bolt is made of 304 stainless steel solid
bar by CNC lathe and with burglary resistant design .Able to worked in the temperature of 60 ℃ or -40 ℃
- Product Details
- {{item.text}}
Quick Details
-
Strike:
-
90Lx25Wx2H(mm)
-
Start Current:
-
900mA
-
Input Voltage:
-
DC12V ( DC24V need order)
-
Autolock Time Delay:
-
0,3,6,9sec
-
Induction Distance:
-
8mm
-
Operating Temp:
-
-20℃~+55℃(-4-131°F)
-
Special Designed:
-
Tested to 500000 cycles
-
Face place material:
-
High Aluminum
-
Weight:
-
1KG
Quick Details
-
Door Type:
-
Glass door, Wood door, Steel door, Stainless Steel door
-
Place of Origin:
-
China
-
Size:
-
192Lx25WX37H(mm)
-
Strike:
-
90Lx25Wx2H(mm)
-
Start Current:
-
900mA
-
Input Voltage:
-
DC12V ( DC24V need order)
-
Autolock Time Delay:
-
0,3,6,9sec
-
Induction Distance:
-
8mm
-
Operating Temp:
-
-20℃~+55℃(-4-131°F)
-
Special Designed:
-
Tested to 500000 cycles
-
Face place material:
-
High Aluminum
-
Weight:
-
1KG
this Bolt is Locked when energizedIn order to meet with special security standard . The bolt is made of 304 stainless steel solid
bar by CNC lathe and with burglary resistant design .Able to worked in the temperature of 60 ℃ or -40 ℃
Product Feature:
2. Low Power, Environmental Protection.
3. Special photoelectricity control,three steps current application.
4. Long Life with 500000 cycles.
5. MOV Provides Reverse Current Protection.
6. Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
7. Double protection for loading current.
8. Photoelectricity Control,Low Temperature,
A:The Low Current is Changed immediately;
B:When door frame doesn`t coincide with doorleaf ,door leaf against the bolt,then the electricbolt will start the low-power
function to bring low temperature.
C:The Photoelectricity Control Technology, prevent the machanical defect.
Specification
|
Product Parameter
|
Parameter Description
|
|
Feature
|
Fail Safe/fail secure
|
|
Face Plate
|
192Lx25WX37H(mm)
|
|
Strike
|
90Lx25Wx2H(mm)
|
|
Bolt
|
16mmDIA,stainless steel 13mm throw
|
|
Voltage
|
12VDC(24VDC need order)
|
|
Start Current
|
960mA
|
|
Standby Current
|
180mA
|
|
Autolock Time Delay
|
0,3,6,9sec
|
|
Solid Bolt Holding Force
|
1000Kg
|
|
Suitable For
|
Wooden Door,Glass Door,Metal Door,PVC Door
|
|
Door statue signal output contact
|
NO/COM
|
|
Surface Temp
|
Low Temperature
|
|
Induction Distance
|
8mm
|
|
LED
|
Light on indicates locked, light off indicates unlocked
|
|
Special Designed
|
Tested to 500000 operations
|
|
Weight
|
1kg
|
