Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Power:
-
5.5-40kw
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
yuandong
-
Dimension(L*W*H):
-
3-10m*1.2m*1.2m, 3-10m*1.2m*1.2m
-
Product name:
-
Road Paver Leveling Machine
-
Application:
-
Straight Road Paving
-
Type:
-
Vibratory Road Paver
-
Paving Width:
-
customized
-
Voltage:
-
380V Three-phase
-
Engine:
-
Electric Motor
-
Paving Speed:
-
0-12M/MIN
-
power:
-
5.5-40kw
-
MAXIMUM PAVING THICKNESS:
-
150-310mm
Quick Details
-
Max. Paving Thickness:
-
150-310mm
-
Weight:
-
1100 kg
-
Engine Brand:
-
Robin
-
Marketing Type:
-
Hot Product 2022
-
Power:
-
5.5-40kw
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
yuandong
-
Dimension(L*W*H):
-
3-10m*1.2m*1.2m, 3-10m*1.2m*1.2m
-
Product name:
-
Road Paver Leveling Machine
-
Application:
-
Straight Road Paving
-
Type:
-
Vibratory Road Paver
-
Paving Width:
-
customized
-
Voltage:
-
380V Three-phase
-
Engine:
-
Electric Motor
-
Paving Speed:
-
0-12M/MIN
-
power:
-
5.5-40kw
-
MAXIMUM PAVING THICKNESS:
-
150-310mm

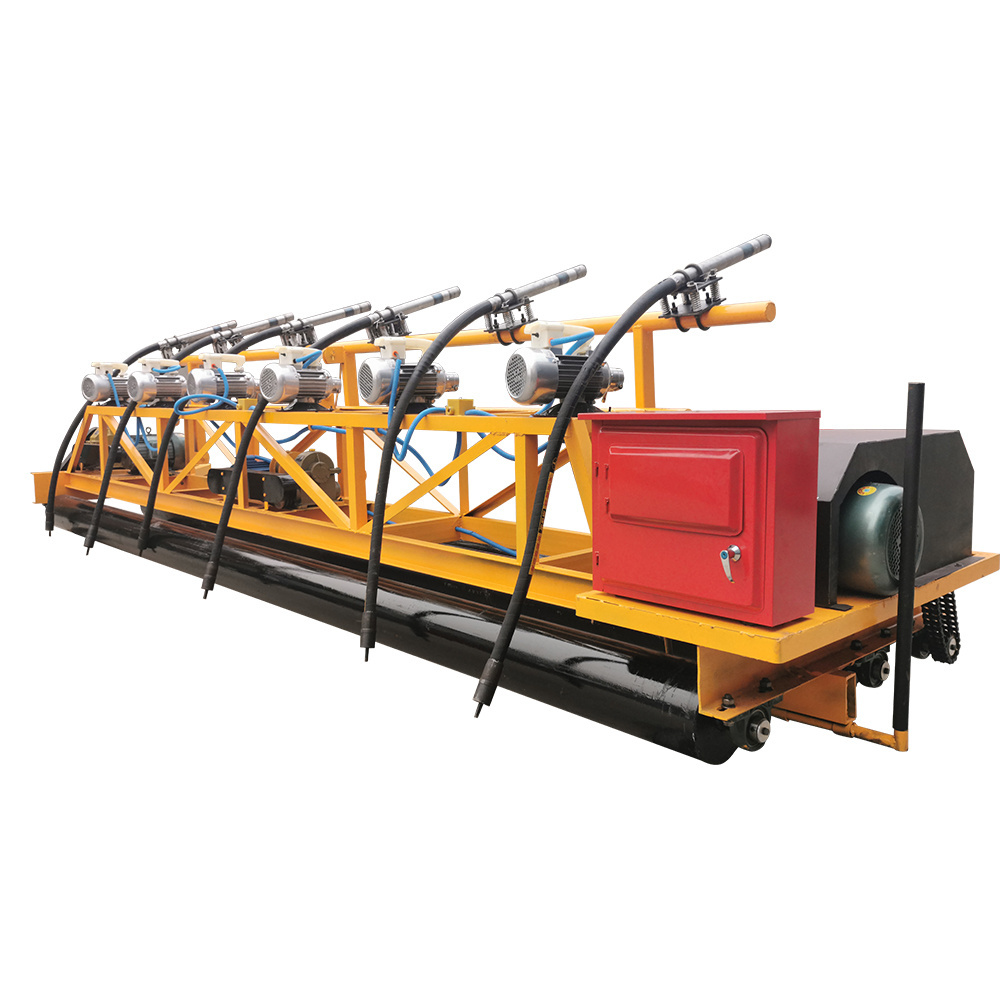

CONCRETE ROLLER PAVER WITH PLUG-IN VIBRATOR
This is a pavement paving and concrete vibration tamping machine, a stroke can complete vibration, slurry lifting, compaction,leveling, high efficiency, excellent effect. Use common components and special bolts to connect to a single unit. If you need to arch Radian, you can easily adjust Radian 5-10°, construction can also use vibrator, concrete will be more dense. The effect of the all-in-one machine with 3-roller version and 4-roll version is better.
Road Paver
Product Description
Various Models
Dynamic configuration: concrete roller paver
Engine motor power: High quality copper motor 4KW 5.5 KW 7.5 KW.
Plug-in vibration motor 1.5KW concrete roller screed paver
Configuration length: concrete pavement paver cement road hand roller
3-14 meters length can be customized, each half meter is a specification, when customers order, please choose 0.5 meters wider than the road surface of construction machinery. For example, if the width of the road is 10 meters, the 10.5 meter wide specification should be used.
Engine motor power: High quality copper motor 4KW 5.5 KW 7.5 KW.
Plug-in vibration motor 1.5KW concrete roller screed paver
Configuration length: concrete pavement paver cement road hand roller
3-14 meters length can be customized, each half meter is a specification, when customers order, please choose 0.5 meters wider than the road surface of construction machinery. For example, if the width of the road is 10 meters, the 10.5 meter wide specification should be used.
Specification
|
Model
|
PZ-2
|
PZ-3
|
PZ-4
|
||
|
Weight
|
600-1000KG
|
900-1300KG
|
1100-1600KG
|
||
|
Roller length
|
Customized
|
Customized
|
Customized
|
||
|
Number of Roller
|
2
|
3
|
4
|
||
|
Control system
|
Semi automatic
|
|
|
||
|
Power
|
7-11KW
|
9.5-19.5KW
|
12-23.5KW
|
||
|
Speed
|
8-12m/min
|
9-13m/min
|
8-10m/min
|
||
|
Vibration force
|
1000N
|
1200N
|
1400N
|
||
