Quick Details
-
Voltage:
-
380V
-
Power:
-
7.7KW
-
Dimension(L*W*H):
-
3850*692*1360mm.
-
Weight:
-
1000 kg
-
Machine type:
-
Pocket Tissue Machine
-
Machine for:
-
Handkerchief Tissue Making
-
Finished Products:
-
Pocket Tissue
-
Raw material:
-
Virgin Pulp
-
Application:
-
Household Tissue Paper Production
-
Usage:
-
Pocket Tissue Folding Cutting
-
Function:
-
Processing Tissue
-
Control system:
-
PLC+Touch Screen
-
Speed:
-
600-800 pcs/min
-
Advantage:
-
Easy Operation Auto Counting
Quick Details
-
Production Capacity:
-
800 pcs/min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XieHeCheng
-
Voltage:
-
380V
-
Power:
-
7.7KW
-
Dimension(L*W*H):
-
3850*692*1360mm.
-
Weight:
-
1000 kg
-
Machine type:
-
Pocket Tissue Machine
-
Machine for:
-
Handkerchief Tissue Making
-
Finished Products:
-
Pocket Tissue
-
Raw material:
-
Virgin Pulp
-
Application:
-
Household Tissue Paper Production
-
Usage:
-
Pocket Tissue Folding Cutting
-
Function:
-
Processing Tissue
-
Control system:
-
PLC+Touch Screen
-
Speed:
-
600-800 pcs/min
-
Advantage:
-
Easy Operation Auto Counting
Products Description

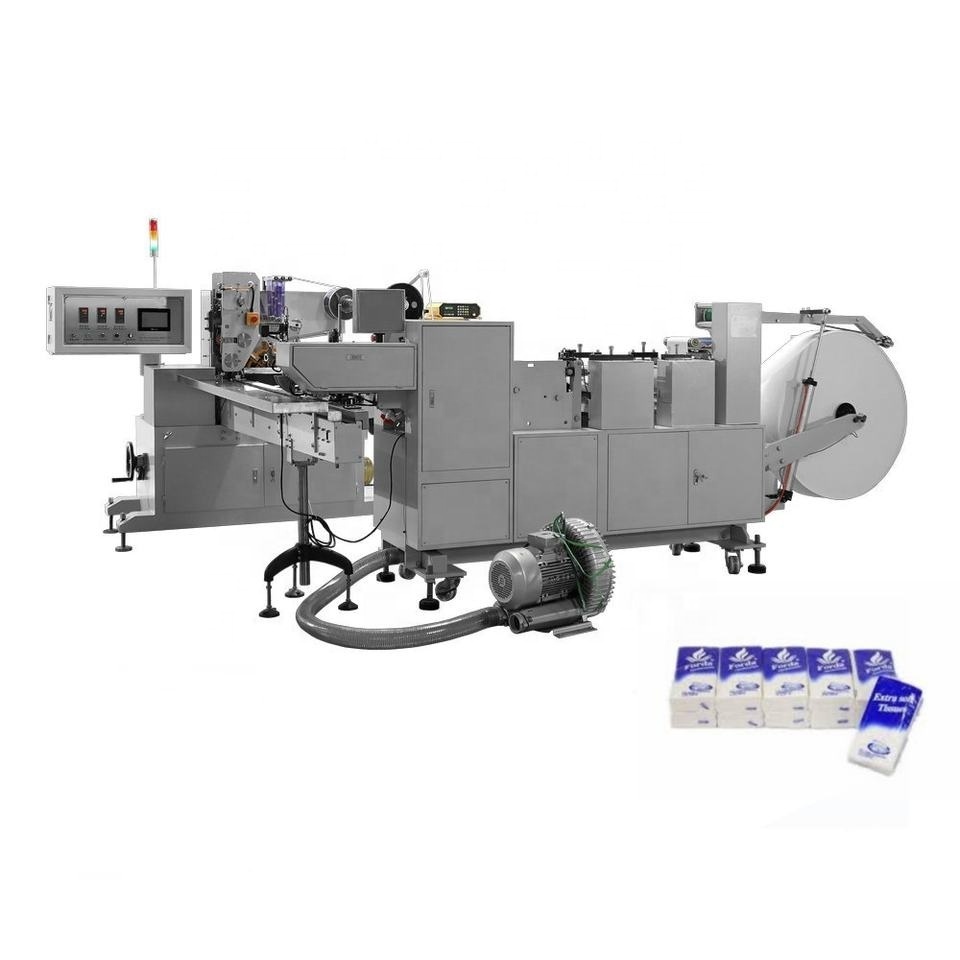

Handkerchief Pocket Tissue Folding Machine Introduction
1：
Raw material：13-25gm 1-3 layers.
2： Programming Controller & controller: Frequency Converter.
3： Separator: Full Automatic .
4： Braking：Pneumatic.
5： Main transmission：chain and chain wheel transmission.
6： Counter: automatic electronic counter.
2： Programming Controller & controller: Frequency Converter.
3： Separator: Full Automatic .
4： Braking：Pneumatic.
5： Main transmission：chain and chain wheel transmission.
6： Counter: automatic electronic counter.
7：
Embossing unit：steel to rubber/wool.
8 :
Touche screen operation.
Specification
|
Machine Name
|
Handkerchief Pocket Tissue Folding Machine
|
|
Width of Jumbo Roll Paper
|
180~210 mm
|
|
Dia. Of Jumbo Raw Paper
|
≤ 1200mm
|
|
Dia. Of Core
|
76.2 mm
|
|
Embossing
|
Steel to Rubber/Wool
|
|
Making Speed
|
800 sheets/min
|
|
Separating Quantity
|
8/9/10 sheets per time
|
|
Machine Size
|
L3850*W692*H1360mm
|
|
Machine Weight
|
About 1000 KGS
|
|
Power Source
|
380V 50HZ
|
|
Air Pressure
|
0.5-0.7MPA(Supplied by the user)
|
|
Total Power
|
7.7 KW
|
