SD SUNCO Front Linkage and Front PTO
Description of front linkage and front PTO:
SUNCO Front-PTO and Front Linkage provides power delivery to the highest technical
standards. The PTO and linkage features an internal oil immersed
multi-plate clutch. Engagement of the clutch is controlled by a proportional and adjustable
engagement system. This guarantees a smooth uptake of power to the front mounted
implements.
Features of front linkage and front PTO :
1.The optional Hydraulic Top-link enables the operator to adjust the implement angle from the tractor seat,reduce down-time.
2.Connecting the linkage to the clutch housing,the push bar is an essential reinforcing equipment in the support of front linkage.
Application of front linkage and front PTO :
SUNCO Front-PTO and linkage for tractor is widely used in farm, grazing land, forestry work etc,
mainly in the conditons that the farm implements should be put and mounted in the front side of tractor.
Our company:
As a comprehensive provincial mechanism for the scien ce and technology development and technical support services of agriculture machinery industry, Shandong Sunco Agricultural Equipment Technology Co.,Ltd is a multi-disciplinary comprehensive research and manufacture company which supplies advanced and applicable equipment for agriculture and rural economy, and integrates with development and test of new product and technique, trial test and information exchange. It is one of the key research units in the trade of agricultural machinery over China.
Specifications of front linkage and front PTO:
1 Matched Tractors from 20hp to 180hp
2 Double Acting Cylinders
3 Strong Hydraulic Hoses and Mechanical Parts
|
Model |
XG07 |
XG10 |
XG15 |
XG20 |
XG30 |
XG40 |
|
Matching Tractor(hp) |
20-50 |
40-70 |
60-90 |
80-130 |
120-180 |
>180 |
|
Lifting power at catch hook kN (kg) |
7(700) |
10(1000) |
15(1500) |
20(2000) |
30(3000) |
40(4000) |
|
Lifting Height H (mm) |
620 |
720 |
750 |
800 |
||
|
Double-acting Cylinders |
standard |
|||||
|
Type of Catch Hooks |
Cat.2 |
Cat. 3 |
||||
|
Type of Top link |
Cat.2 |
|||||
|
Weight (kg) |
140 |
160 |
280 |
350 |
550 |
700 |
|
Reversing Value |
Option |
|||||
|
Hydraulic Lock |
Option |
|||||
|
Shock Eliminator System |
No |
Option |
||||
|
Front PTO |
No |
No |
Option |
|||
|
Max. PTO power (hp) |
80 |
150 |
||||
|
Front PTO shaft speed (rpm) |
1000/540 |
540 |
||||
|
Direction of rotation (from cab seat) |
option |
anti-clockwise |
||||
|
PTO shaft profile (DIN 9611) |
1 ’ 3/8 ’’ -6 splines |
|||||

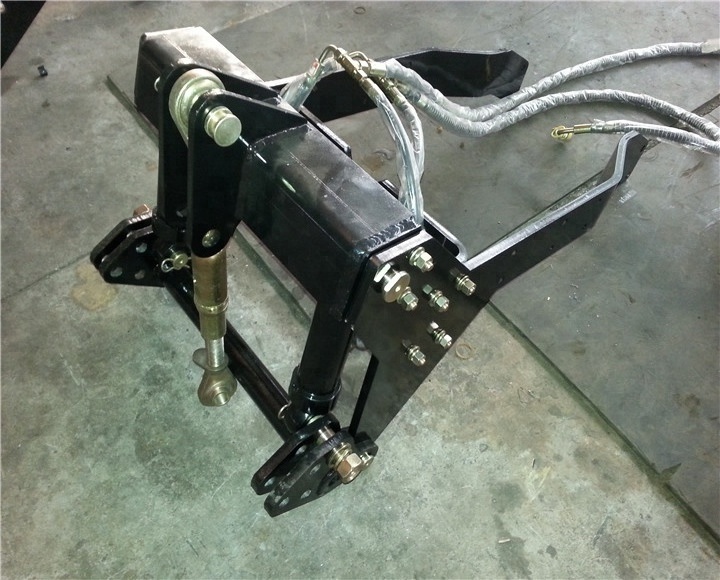

Photos of front linkage and front PTO:
