1.Replaceable weld-on wear strips
2.Simple installation-easily interchanges with bucket
3.Can be linked with quick coupler
4.Will work with any existing manual or hydraulic thumb.

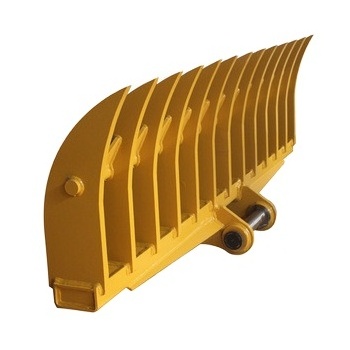

A great tool for land clearing, the rake easily removes roots and stumps to clear land quickly.
The thick cutting edge of the teeth greatly increases the durability of the rake and curved tines offer maximum force projection.
Raking space 150mm, 30mm thick tine, an extreme duty made.
We design, OEM, manufacturing excavator/loader attachments for high-end clients.
A.Rectangular cross beam
Ransun root rake is
B.Solid crossbar
Strengthen the root rakes' structure
C.Stronger raking tine
Stronger rake teeth design
D. Triangular gusset
Enhance the root rake's structure
E.Extra hard face
It is optional for a customer, it's structure can protect the root rake teeth
|
Size
|
Model
|
Width(mm)
|
Number of Tine
|
Distance between tines(mm)
|
Thickness of tine(mm)
|
Weight(kgs)
|
|
1-3T
|
RSER-01
|
700
|
6
|
125
|
12
|
72
|
|
3T
|
RSER-03
|
850
|
7
|
123
|
16
|
118
|
|
|
|
1000
|
8
|
125
|
16
|
136
|
|
5T
|
RSER-05
|
1000
|
8
|
125
|
16
|
150
|
|
|
|
1200
|
9
|
132
|
16
|
176
|
|
8-12T
|
RSER-08
|
1500
|
9
|
165
|
20
|
266
|
|
|
|
1800
|
11
|
158
|
20
|
305
|
|
12-15T
|
RSER-12
|
1800
|
10
|
172
|
25
|
558
|
|
|
|
1800
|
11
|
152
|
25
|
587
|
|
20T
|
RSER-20
|
1600
|
11
|
127
|
30
|
780
|
|
|
|
2000
|
11
|
167
|
30
|
890
|
|
25T
|
RSER-25
|
2000
|
10
|
180
|
35
|
1010
|
|
30T
|
RSER-30
|
2200
|
10
|
200
|
40
|
1220
|
|
30-40T
|
RSER-40
|
2200
|
11
|
154
|
60
|
2439
|
|
Packing
|
|
|
|
size
|
250(L) * 200 (W) * 200 (D)
|
|
|
weight
|
2150kg
|
|
|
packing detail
|
The normal package is International standard pallet or packing wooden box(Size: L*W*H) and Welded frame with steel pipe. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
|
|
|
|
|
|
|
|
