Quick Details
-
Model:
-
rotary potentiometers switch
-
Technical materia:
-
thumb wheel
-
Company type:
-
factory
-
Producing experience:
-
17 years
-
Certificate:
-
ISO9001,TUV,ROHS
-
with swtich:
-
can with swtich
-
OEM service:
-
available
-
Rated power:
-
0.1W
-
OEM:
-
Yes
-
ODM:
-
Yes
-
Power (Watts):
-
0.1W
-
Rated Power:
-
0.1W
-
D/C:
-
2021
-
Max. Operating Voltage:
-
500V(DC or AC peak value)
-
Resistance Tolerance:
-
±20%
-
Description:
-
RV16S
-
Operating Temperature:
-
-25℃~+75℃
-
Resistance:
-
100Ω~1MΩ
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
BONENS
-
Model Number:
-
RV16S
-
Model:
-
rotary potentiometers switch
-
Technical materia:
-
thumb wheel
-
Company type:
-
factory
-
Producing experience:
-
17 years
-
Certificate:
-
ISO9001,TUV,ROHS
-
with swtich:
-
can with swtich
-
OEM service:
-
available
-
Rated power:
-
0.1W
-
OEM:
-
Yes
-
ODM:
-
Yes
-
Power (Watts):
-
0.1W
-
Rated Power:
-
0.1W
-
D/C:
-
2021
-
Max. Operating Voltage:
-
500V(DC or AC peak value)
-
Resistance Tolerance:
-
±20%
-
Description:
-
RV16S
-
Operating Temperature:
-
-25℃~+75℃
-
Resistance:
-
100Ω~1MΩ

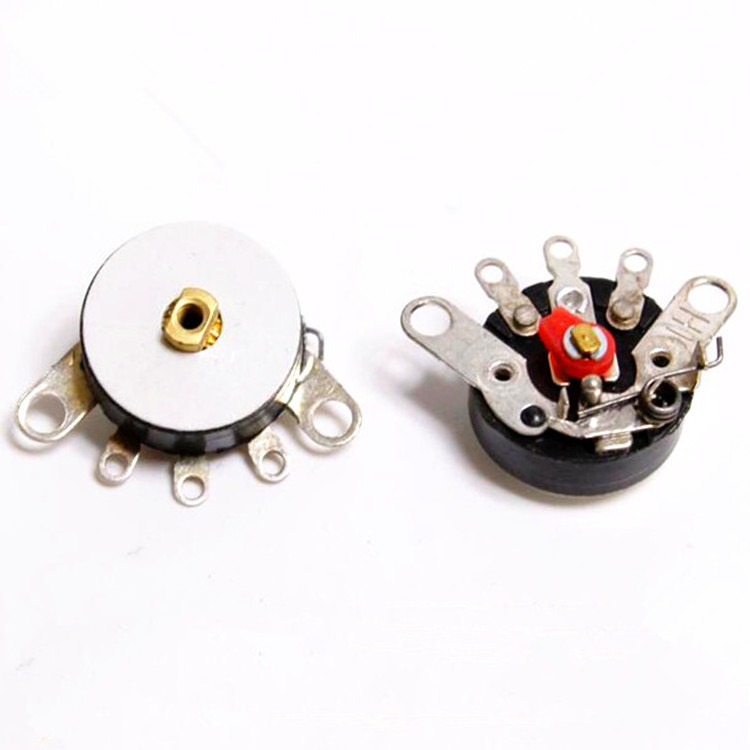

16mm switch 5k Thumbwheel potentiometer
RV16 thumbwheel potentiometer Drawing:
RV16 thumbwheel potentiometer parameters:
| Electronical Characteristics | Total Resistance | 100-1MΩ |
| Total Resistance Tolerance | ±20% | |
|
Resistance of temperature
change character |
20°C~-75°C:ΔR/R
≤
±5%R
-25°C~-20°C:ΔR/R ≤ ±4.5%R |
|
| Resistance taper | B | |
| Residual resistance |
Term 1~2: less than 10Ω
Term 2~3: less than 20Ω |
|
| Rated power | 0.1 W | |
| Max. operating voltage | AC 200V | |
| Rotational noise | Less than 47mV | |
| Insulation resistance | More than 50MΩ at DC500V | |
| Withstand voltage | 1 minute at: AC500V | |
| Switch contact resistance | / | |
| Switch rated power | / | |
| Mechanical Characteristics | Rotation angle | 260 °±10° |
| Rotation torque | 20~150gf. Cm | |
| Pull-push strength | 1Kgf,cm | |
| Rotational stop-end torque | 2Kgf,cm | |
| Resistance or soldering heat | 260 ±5°C and less than 3 seconds | |
| Switch rotational angle | / | |
| Switch action | / | |
| Durability | Rotation life | 10.000cycles |
