Quick Details
-
Power:
-
7600
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KERISE
-
Maximum Digging Height:
-
2400mm
-
Maximum Digging Depth:
-
1650 mm
-
Machine Weight:
-
827 kg
-
Max Digging Radius:
-
1500 mm
-
Rated Speed:
-
2km/h
-
Climbing gradient:
-
30°
-
Size:
-
2220*1000*2200mm
-
Volume:
-
4.884m ³
-
Engine power:
-
13.5HP
Quick Details
-
Operating Weight:
-
1.2ton
-
Bucket capacity:
-
0.03m³
-
Engine Brand:
-
Briggs & Stratton
-
Power:
-
7600
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KERISE
-
Maximum Digging Height:
-
2400mm
-
Maximum Digging Depth:
-
1650 mm
-
Machine Weight:
-
827 kg
-
Max Digging Radius:
-
1500 mm
-
Rated Speed:
-
2km/h
-
Climbing gradient:
-
30°
-
Size:
-
2220*1000*2200mm
-
Volume:
-
4.884m ³
-
Engine power:
-
13.5HP
Specification

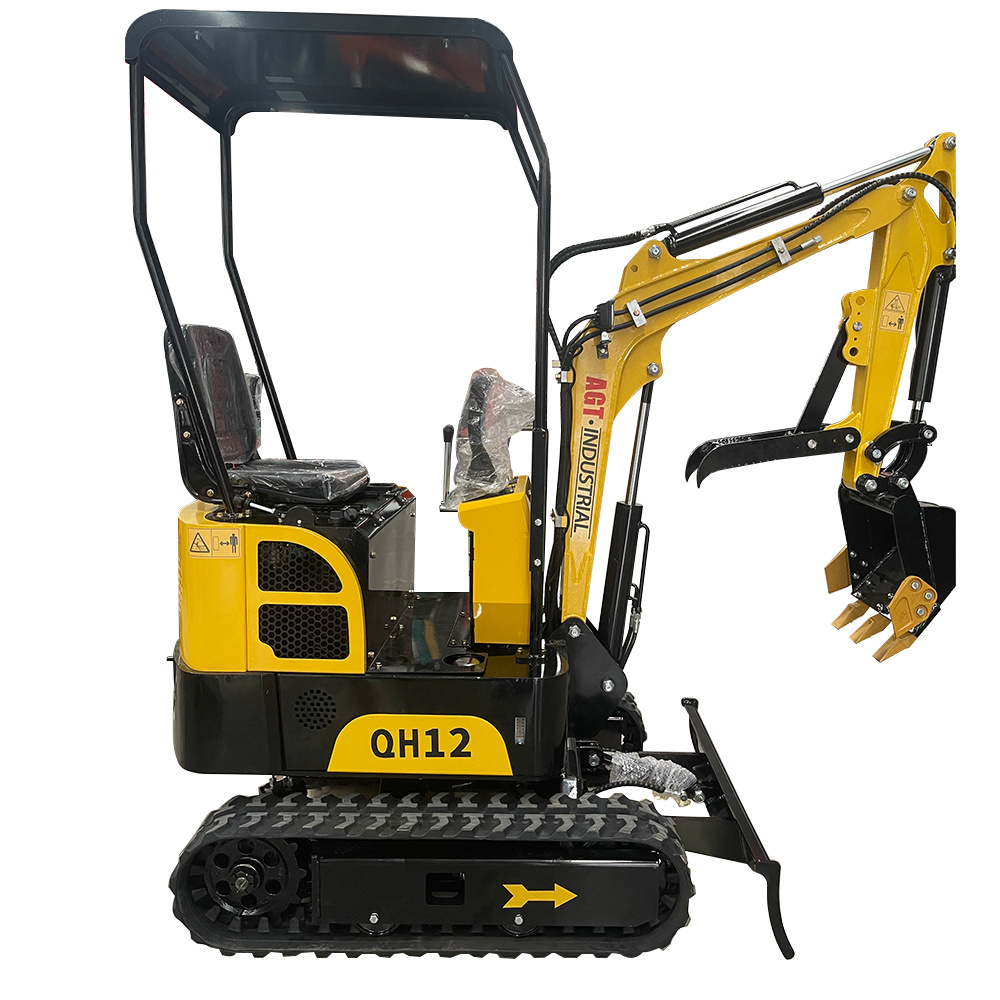

QH12 :B&S engin QH12R :Rato engin
H12 :B&S engin or Rato engin
L12 :KOOP &B&S engin L12R :Rato engin
Please contact us for more details and factory pictures, we will be glad to help you to solve problems.
Prices vary by engine, just contact us for the latest price.
|
Model Information
Configuration Status √Standard, △Optional ,×None Abnormal data in red |
|
12 SERIES
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
||||||
|
|
|
H12
|
QH12
|
QH12R
|
L12
|
L12R
|
QS12R
|
||||||
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
||||||
|
Basic
Performance Parameters |
Working Weight(kg)
|
855
|
830
|
830
|
900
|
900
|
845
|
||||||
|
|
Bucket capacity(m³)
|
0.025
|
0.03
|
0.03
|
0.03
|
0.03
|
0.025
|
||||||
|
|
Travel speed low/high speed(Km/h)
|
0-1.8
|
0-1.8
|
0-1.8
|
0-1.8
|
0-1.8
|
0-1.5
|
||||||
|
|
Climbing ability(%)
|
30
|
30
|
30
|
30
|
30
|
30
|
||||||
|
|
A Maximum Digging Height(mm)
|
2550
|
2550
|
2550
|
2750
|
2750
|
2350
|
||||||
|
|
B Maximum Unloading Height(mm)
|
1780
|
1780
|
1780
|
1960
|
1960
|
1600
|
||||||
|
|
C Maximum Digging Depth(mm)
|
1644
|
1644
|
1644
|
1630
|
1630
|
1300
|
||||||
|
|
E Max. digging radius(mm)
|
2960
|
2960
|
2960
|
2900
|
2900
|
2460
|
||||||
|
|
Side Swing
|
×
|
×
|
×
|
×
|
×
|
×
|
||||||
|
|
Side Swing Angle (L/R)
|
×
|
×
|
×
|
×
|
×
|
×
|
||||||
|
|
undercarriage expansion
|
×
|
×
|
×
|
×
|
×
|
×
|
||||||
|
Body
|
J Overall Length(mm)
|
2240
|
2895
|
2895
|
2200
|
2200
|
2430
|
||||||
|
|
K Overall Width(mm)
|
958
|
958
|
958
|
930
|
930
|
720
|
||||||
|
|
L Overall Height(mm)
|
2200
|
2200
|
2200
|
2250
|
2250
|
1390
|
||||||
|
|
Bulldozer Width/Height
|
907/210
|
907/400
|
907/400
|
180/210
|
180/210
|
907/400
|
||||||
|
Engine
|
Engine Brand
|
B&S
|
B&S
|
Rato
|
Koop
|
Rato
|
Rato
|
||||||
|
|
Engine Model
|
13.5HP
|
13.5HP
|
R420D
|
KD192F
|
R420D
|
R420D
|
||||||
|
|
Max. power(Kw)
|
9.8
|
9.8
|
8.6
|
7.6
|
8.6
|
8.6
|
||||||
|
|
Max. speed(rpm)
|
3600
|
3600
|
3600
|
3600
|
3600
|
3600
|
||||||
|
|
Cylinders
|
1
|
1
|
1
|
1
|
1
|
1
|
||||||
|
|
Cooling method
|
fan cooling
|
fan cooling
|
fan cooling
|
water cooling
|
fan cooling
|
fan cooling
|
||||||
|
|
Engine oil change quantity(L)
|
1.1
|
1.1
|
1.1
|
1.1
|
1.1
|
1.1
|
||||||
|
|
Fuel Type
|
Gasoline
|
Gasoline
|
Gasoline
|
Diesel
|
Gasoline
|
Gasoline
|
||||||
|
|
Fuel Grade
|
92#
|
92#
|
92#
|
|
92#
|
92#
|
||||||
|
|
Theoretical fuel consumption(L/h)
|
0.5-1.2
|
0.5-1.2
|
0.5-1.2
|
1-1.6
|
0.5-1.2
|
0.5-1.2
|
||||||
|
Hydraulic
system |
Main pump type/model
|
gear pumps/06
|
gear pumps/06
|
gear pumps/06
|
gear pumps/06
|
gear pumps/06
|
gear pumps/06
|
||||||
|
|
Main pump brand
|
(Tianjin Xingzou)
|
(Tianjin Xingzou)
|
(Tianjin Xingzou)
|
(Tianjin Tianji)
|
(Tianjin Tianji)
|
(Tianjin Xingzou)
|
||||||
|
|
Rated set pressure(Mpa)
|
23.5
|
16
|
16
|
23.5
|
23.5
|
16
|
||||||
|
|
Maximum flow rate of main pump(L/min)
|
21.6
|
21.6
|
21.6
|
21.6
|
21.6
|
18
|
||||||
|
|
Multi-way valve
|
8 manually operated multi-way valves
|
8 manually operated multi-way valves
|
8 manually operated multi-way valves
|
8 manually operated multi-way valves
|
8 manually operated multi-way valves
|
8 manually operated multi-way valves
|
||||||
|
|
Brand of Multi-way valve
|
(Hua Sheng)
|
(Tai Heng)
|
(Tai Heng)
|
(Bei Fang)
|
(Bei Fang)
|
(Tai Heng)
|
||||||
|
|
Rated Set Pressure(Mpa)
|
16
|
16
|
16
|
16
|
16
|
16
|
||||||
|
|
Hydraulic Linear Motor type
|
BM6-310
|
BM6-315
|
BM6-315
|
BM6-310
|
BM6-310
|
BM6-315
|
||||||
|
|
Linear Motor Brand
|
(Li Yuan)
|
(Li Wo)
|
(Li Wo)
|
(Li Yuan)
|
(Li Yuan)
|
(Li Wo)
|
||||||
|
|
Hydraulic Servo Motor type
|
BM2-250
|
BM2-315
|
BM2-315
|
BM2-250
|
BM2-250
|
BM2-315
|
||||||
|
Excavator tracks
|
△-Rubber (bandwidth*pitch*number of sections)
|
180*72*37
|
180*72*37
|
180*72*37
|
180*72*37
|
180*72*37
|
180*72*37
|
||||||
|
Configuration
|
Cab
|
×
|
×
|
×
|
×
|
×
|
×
|
||||||
|
|
Roof
|
√
|
√
|
√
|
√
|
√
|
√
|
||||||
|
|
Handrail
|
√
|
√
|
√
|
√
|
√
|
√
|
||||||
|
|
Thumb Clip
|
√
|
√
|
√
|
√
|
√
|
√
|
||||||
|
|
Counterweight
|
√
|
√
|
×
|
√
|
√
|
√
|
||||||
|
|
Tensioning Forms
|
Mechanical tensioning
|
Mechanical tensioning
|
Mechanical tensioning
|
Mechanical tensioning
|
Mechanical tensioning
|
Mechanical tensioning
|
||||||
|
|
Air Conditioning
|
×
|
×
|
×
|
×
|
×
|
×
|
||||||
|
Fuel tank
|
Fuel tank(L)
|
6.6
|
6.6
|
6.6
|
10
|
10
|
6.6
|
||||||
|
|
Hydraulic oil tan（L）
|
12
|
12
|
12
|
16
|
16
|
12
|
||||||
Products Description
We can also meet the diversified needs of buyers, such as adding a cab, or needing to add a side swivel pilot function, etc. Contact us to recommend the right model for you.We also have a large variety of mini digger attachments!
