Name
|

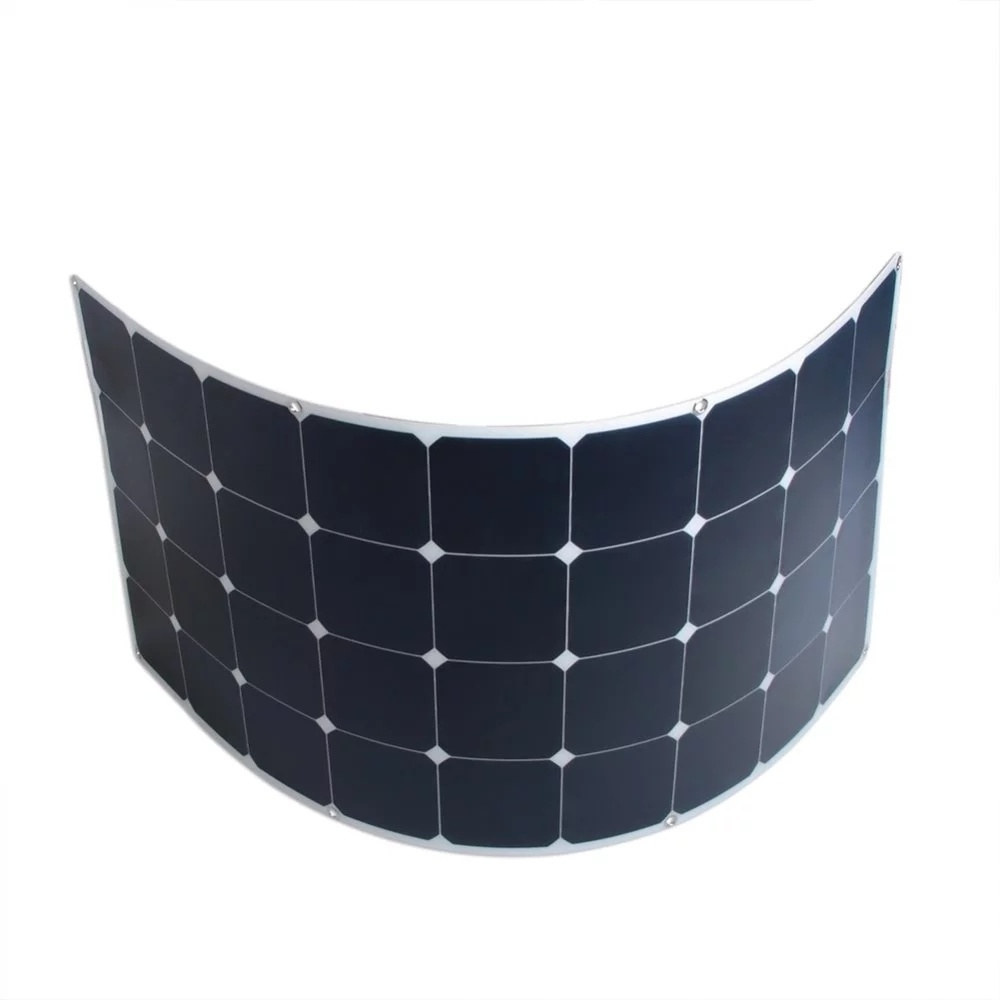

Mono Flexible Solar Panels
|
|
Power
|
180W
|
|
Size
|
1470*670*3MM
|
|
Effectiveness
|
18.2%
|
|
Maximum working voltage
|
18V
|
|
Maximum working current
|
10A
|
|
Open circuit voltage
|
21.6 V
|
|
Open circuit current
|
10.56 A
|
|
System voltage
|
600 V
|
|
Flexible Solar Panel Date Sheet
|
|
|
|
|
|
|||||
|
Model
|
Power (w)
|
Voltage (v)
|
Material
|
Weight (kg)
|
Size (mm)
|
|||||
|
T15W-F
|
15W
|
18V
|
PET/ETFE
|
0.8kg (1.76 lbs)
|
380*280*3mm
|
|||||
|
T20W-F
|
20W
|
18V
|
PET/ETFE
|
1.0kg (2.20 lbs)
|
580*280*3mm
|
|||||
|
T30W-F
|
30W
|
18V
|
PET/ETFE
|
1.0kg (2.20 lbs)
|
525*345*3mm
|
|||||
|
T50W-F
|
50W
|
18V
|
PET/ETFE
|
1.4kg (3.08 lbs)
|
630*540*3mm
|
|||||
|
T60W-F
|
60W
|
18V
|
PET/ETFE
|
1.9kg (4.19 lbs)
|
1040*340*3mm
|
|||||
|
T75W-F
|
75W
|
18V
|
PET/ETFE
|
1.9kg (4.18 lbs)
|
830*515*3mm
|
|||||
|
T80W-F
|
80W
|
18V
|
PET/ETFE
|
2.2kg (4.85 lbs)
|
1000*515*3mm
|
|||||
|
T90W-F
|
90W
|
18V
|
PET/ETFE
|
2.5kg (5.51 lbs)
|
1050*540*3mm
|
|||||
|
T100W-F
|
100W
|
18V
|
PET/ETFE
|
2.8kg (6.17 lbs)
|
1180*540*3mm
|
|||||
|
T120W-F
|
120W
|
18V
|
PET/ETFE
|
3.0kg (6.61lbs)
|
1330*520*3mm
|
|||||
|
T150W-F
|
150W
|
18V
|
PET/ETFE
|
4.3kg (9.48 lbs)
|
1470*670*3mm
|
|||||
|
T180W-F
|
180W
|
18V
|
PET/ETFE
|
4.3kg (9.48 lbs)
|
1470*670*3mm
|
|||||
|
T200W-F
|
200W
|
36V
|
PET/ETFE
|
5.6kg (12.35 lbs)
|
1580*808*3mm
|
|||||
|
T250W-F
|
250W
|
36V
|
PET/ETFE
|
5.6kg (12.35 lbs)
|
1320*990*3mm
|
|||||
|
