Quick Details
-
Color:
-
white grey or customized
-
Door:
-
Steel Security Door
-
Window:
-
PVC Sliding Window or customized
-
Floor:
-
18mm Fiber Cement Board
-
Ceiling:
-
integrated color steel sheet
-
Roof:
-
Sandwich Panel+ Decoration Ceiling
-
Size:
-
L 6055mm* W 2435*H 2896
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DONGCHUANG
-
Wall:
-
Sandwich Panel Wall
-
Color:
-
white grey or customized
-
Door:
-
Steel Security Door
-
Window:
-
PVC Sliding Window or customized
-
Floor:
-
18mm Fiber Cement Board
-
Ceiling:
-
integrated color steel sheet
-
Roof:
-
Sandwich Panel+ Decoration Ceiling
-
Size:
-
L 6055mm* W 2435*H 2896
Consult now for free design drawings
1. We are the manufacturer, the layout, color, size and so on can be customized.
2. The sandwich wall panel uses fire-retardant materials. The thickness of wall panel is 75mm-100mm, It has good insulation, can be used in extremely cold areas
3. Excellent waterproof performance,no leakage of rain.
4.Professional installation personnel can go to the designated area to install or guide the installation
5.40+ countries have set up agency points and after-sales service centers
6. Structural beams and other plates are made of thickened raw materials and molded by stamping process, with a service life of 35 years. More than 15 years than ordinary container house service life.
7. The surface adopts electrostatic spraying process.
Products Description
|
Container House Parameters
|
|
|
||
|
Size
|
L 6055mm* W 2435*H 2896
|
|
||
|
Life span
|
More than 20 years
|
|
||
|
Steel Frame |
Main Beam For Floor And Bottom
|
Galvanized formed beam
|
||
|
|
|
Thickness:3.0mm,2.5mm,2.3mm
|
||
|
|
Top Frame |
C shape steel:C80*1.3mm,galvanized
|
||
|
|
|
Square tube: 20*20*1.0mm,galvanized
|
||
|
|
|
Insulation:75mm fiber glass wool with sliver paper,density:14kg/m³
|
||
|
|
Bottom Frame |
Square tube: 50*100*1.2mm,galvanized
|
||
|
|
|
Insulation:75mm fiber glass wool with sliver paper,density:14kg/m³
|
||
|
|
Column
|
Galvanized steel Column
|
||
|
|
|
Thickness:3.0mm,2.5mm,2.3mm
|
||
|
|
Corner fitting
|
Galvanized steel
|
||
|
|
|
Thickness:3.5mm
|
||
|
Wall system
|
75mm Sandwich Panel
|
75mm rock wool board,density≥80kg/m3
|
||
|
Floor |
Fiber Cement Board
|
Thickness :18mm
|
||
|
|
Vinyl flooring
|
Thickness:1.6mm/2.0mm
|
||
|
Roof
|
Ceiling
|
V-831 type,0.4mm Integrated Color Steel Sheet
|
||
|
Window
|
Sliding Window
|
925mm*1100mm
|
||
|
Door
|
Steel Security Door
|
840mm*2035mm
|
||
|
Electrical Device |
CEE industrial plug, socket voltage 220V- 250V, 2P32A, Fixed in explosion-proof box at the top beam of the short side; Using IP44
standard power distribution box. |
|
||
|
|
main power cable is 6 mm², AC cable is 4 mm², socket cable is 2.5 mm², lighting & switch cable is 1.5 mm².
Four sockets, 1pc AC socket of three holes 16A, 3pcs socket of five holes 10A. 1pc single connection switch, 2pcs LED light, 2*15W. |
|
||
|
Accessories
|
Screw ,Blot, Silicon sealant,etc
|
|
||
OUR ADVANTAGES
|
ADVANTAGES
|
|
1 Fast installation four workers can install one unit within two hours
|
|
2 . Environmental protection , can be reused many times and no construction waste
|
|
3 . Durable , service life up to 30 years
|
|
4.Heat insulation, windproof, shockproof, moisture-proof, waterproof, leakage proof, environmental protection, reliable, fast and easy to be moved, flexible combination.
|
|

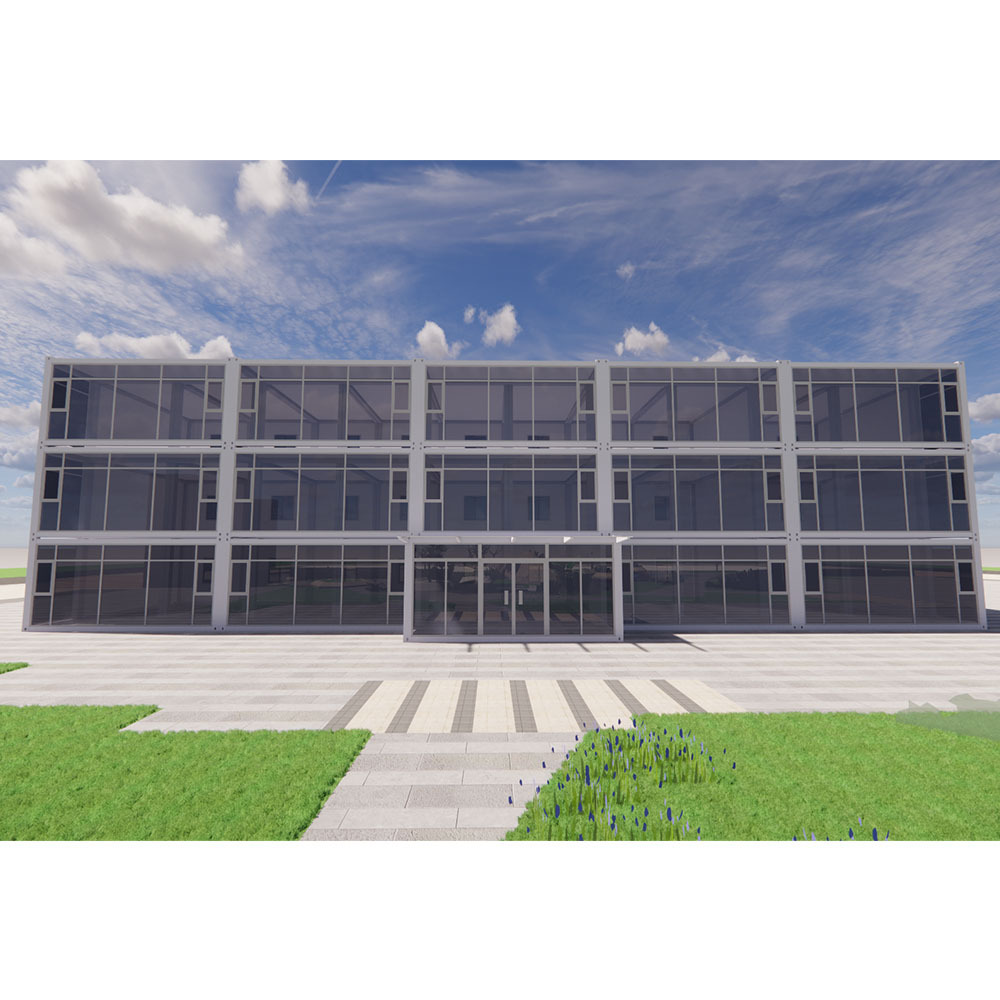

5 . Modular building , Can be used in office building , workers dormitories , hotels , hospitals , warehousing,classrooms etc
|
