Quick Details
-
Brand Name:
-
TIANRUI
-
Model Number:
-
Battery Switch
-
Max. Current:
-
300A
-
Product Name:
-
Boat Marine RV Battery Switch
-
Rated Current:
-
300A
-
Rated Voltage:
-
48V DC
-
Style:
-
Selector 2 4 Position
-
Application:
-
Boat Marine, etc
-
Operation:
-
Off-ON
-
Intermittent Rating:
-
450A (5 min)
-
Cranking Rating 30 sec:
-
675A
-
Stud Material:
-
Tinned Copper
-
Terminal Stud Size:
-
3/8" - 16 (M10)
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
48V DC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TIANRUI
-
Model Number:
-
Battery Switch
-
Max. Current:
-
300A
-
Product Name:
-
Boat Marine RV Battery Switch
-
Rated Current:
-
300A
-
Rated Voltage:
-
48V DC
-
Style:
-
Selector 2 4 Position
-
Application:
-
Boat Marine, etc
-
Operation:
-
Off-ON
-
Intermittent Rating:
-
450A (5 min)
-
Cranking Rating 30 sec:
-
675A
-
Stud Material:
-
Tinned Copper
-
Terminal Stud Size:
-
3/8" - 16 (M10)

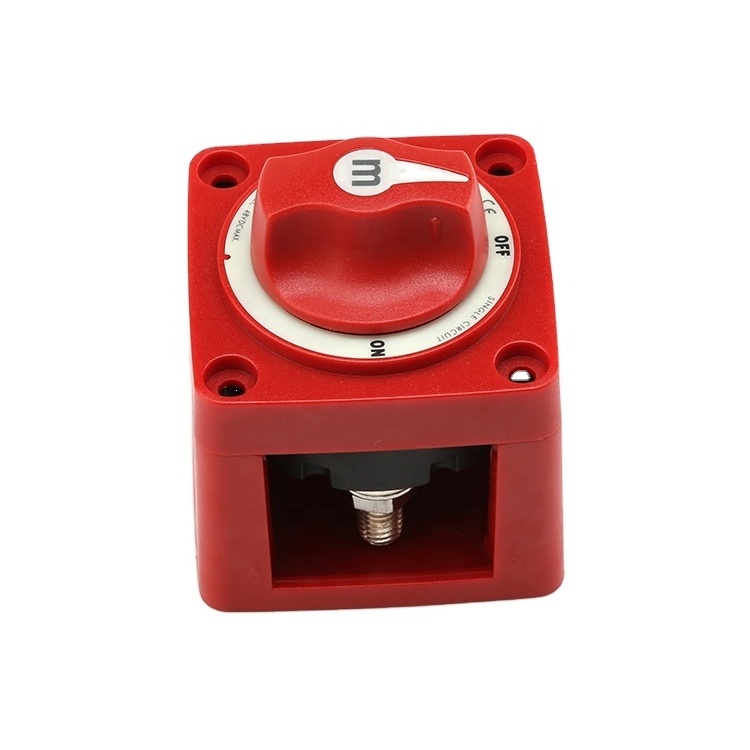

2 4 Position Cut Off 32V 48V DC Marine Boat Yacht RV Battery Isolator Switch Disconnect Switch
|
Switch Type
|
Selector 4 Position
|
|
Color
|
Red
|
|
Operation
|
Off-ON
|
|
Maximum Voltage
|
32V DC
|
|
Continuous Rating
|
300A
|
|
Intermittent Rating
|
450A (5 min)
|
|
Cranking Rating 30 sec
|
675A
|
|
Cable Clearance For 4/0 AWG Cables
|
1.10in (27.94 mm)
|
|
Cable Size to Meet Ratings
|
4/0 AWG (120mm²)
|
|
Mounting Holes
|
Accept 1/4" (M6) Screw
|
|
Stud Material
|
Tinned Copper
|
|
Terminal Stud Size
|
3/8" - 16 (M10)
|
Description of 2 4 Position Cut Off 32V 48V DC Marine Boat Yacht RV Battery Isolator Switch Disconnect Switch
This product is suitable for passenger cars, trucks, tractors, professional racing cars, and now it has been applied to many ordinary RVs abroad. At present, this kind of modification combination switch is used in many coastal cities in China, and the installation is simple.
Function of 2 4 Position Cut Off 32V 48V DC Marine Boat Yacht RV Battery Isolator Switch Disconnect Switch
Prevent leakage, protect the power supply, disconnect the battery safely
Application of 2 4 Position Cut Off 32V 48V DC Marine Boat Yacht RV Battery Isolator Switch Disconnect Switch
The product has a wide range of uses and can be used as the on/off key for various electrical equipment added inside and outside the car (such as: strobe lights, chassis lights, fog lights, dome lights. Instantaneous power failure, etc.)
