Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JW
-
Dimension(L*W*H):
-
101*76*156 cm
-
Weight (KG):
-
200 KG
-
Core Components:
-
laser source/lens/galvanometer
-
Product name:
-
High quality Ultraviolet Maker UV Laser Marking Machine
-
Laser source:
-
JPT
-
Laser Power:
-
3w/5w/10W
-
Keywords:
-
uv laser machine
-
Marking Speed:
-
7000mm/second
-
Marking Depth:
-
according the materails
-
Control system:
-
EZCAD
-
Certification:
-
ce/ISO
-
After Warranty Service:
-
Video technical support
Quick Details
-
Engraving Area:
-
110*110mm/200*200mm
-
Laser Type:
-
uv laser
-
Engraving Speed:
-
12000mm/m
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JW
-
Dimension(L*W*H):
-
101*76*156 cm
-
Weight (KG):
-
200 KG
-
Core Components:
-
laser source/lens/galvanometer
-
Product name:
-
High quality Ultraviolet Maker UV Laser Marking Machine
-
Laser source:
-
JPT
-
Laser Power:
-
3w/5w/10W
-
Keywords:
-
uv laser machine
-
Marking Speed:
-
7000mm/second
-
Marking Depth:
-
according the materails
-
Control system:
-
EZCAD
-
Certification:
-
ce/ISO
-
After Warranty Service:
-
Video technical support

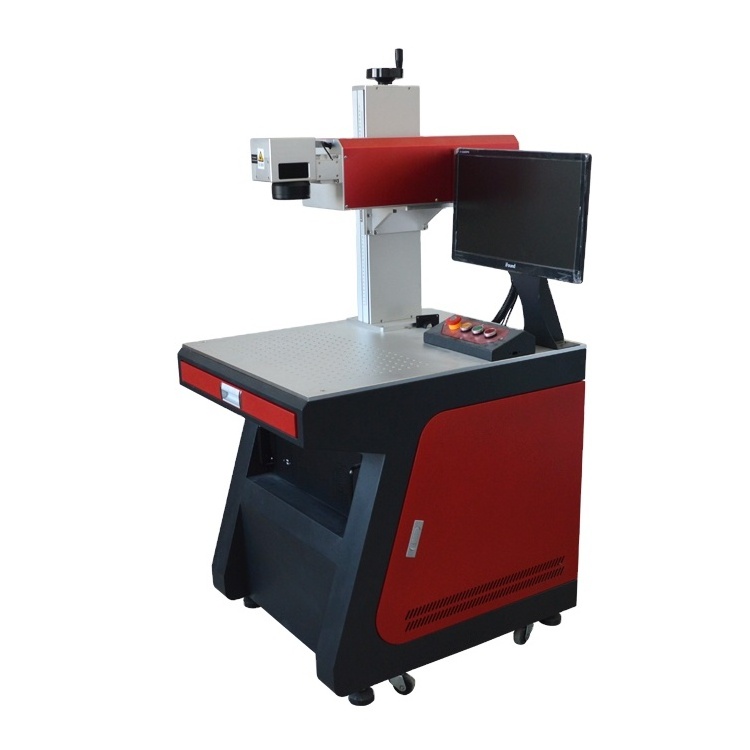

High quality Ultraviolet Maker UV Laser Marking Machine for Glass PCB metal wood
|
M odel |
J w-uv 5/3/10 |
|
Laser power |
JPT 3 w/50W/10W |
|
Beam quality |
<1.0 |
|
Wave |
355nm |
|
Laser repeat frequency |
20KHz~100KHz |
|
Marking Range |
1 5 0×1 5 0mm /100*100mm |
|
Mainbrand |
BJJCZ |
|
Software |
EZCAD |
|
Marking speed |
800mm/s |
|
Minimum line width |
0.012mm |
|
Minimum Character |
0.15mm |
|
Repeated precision |
±0.003mm |
|
Cooling mode |
Air and water cooling |
|
I ndicate |
Red dot |
|
Whole power consumption |
500W |
|
power supply |
220V /110v |
|
Size |
65 * 75 * 135 0mm |
|
warranty |
1 years |
Applicable Industry and Material:
(1) It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.
(2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.
(3) Pharmaceutical, food, beverage and cosmetics industry.
(4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.
(5) It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc..
It can also be applied in the following area:
1.Electrical Engineering and Electrical part and component,
2.Mobile (Cover,battery,keyboard, I Phone Case), plastic case ,
3.Jewellery(Ring,pedeant,bracelet), eyeglass, clocks and craft,
4.Building materials, PVC pipe, Car industry(motor spare parts),
5.Insturment and meters and cutting tool, hardware fitting and accessory,
6.sanitary appliance, food and beverage, Medicine package and surgical instruments.
