- Product Details
- {{item.text}}
Quick Details
-
CPU:
-
1.8GHz Quad-Core ARM Cortex-A53
-
RAM:
-
2 GB
-
SSD:
-
16GB
-
Operation System:
-
Android 11
-
Compatible Devices:
-
Android
-
printer technology:
-
THERMAL
-
Sheet Size:
-
58MM
-
Place of Origin:
-
Guangdong, China
-
Display:
-
6.0 inch TFT IPS LCD, resolution 1440*720
-
Keys:
-
Physical keys: Power on/off, Volume + /-, Scan
-
Input:
-
Chinese/English, and supports handwriting and soft keyboard
-
Radio Communication:
-
WIFI, BT, 4G, 3G, 2G
-
Payment:
-
Magcard reader, Smart Card reader, Contactless Card reader
-
Printer:
-
High-Speed Thermal Printer; 58mm printing paper; 40mm paper roll
-
Rear Camera:
-
5MP camera with LED flash and auto-focus function
-
LEDS:
-
3 colors are used to indicate
-
Audio:
-
Speaker, Microphone, Buzzer
-
Warranty:
-
1 Year
Quick Details
-
Model Number:
-
Z500
-
Country of Origin:
-
CHINA
-
Brand Name:
-
HCCTG
-
CPU:
-
1.8GHz Quad-Core ARM Cortex-A53
-
RAM:
-
2 GB
-
SSD:
-
16GB
-
Operation System:
-
Android 11
-
Compatible Devices:
-
Android
-
printer technology:
-
THERMAL
-
Sheet Size:
-
58MM
-
Place of Origin:
-
Guangdong, China
-
Display:
-
6.0 inch TFT IPS LCD, resolution 1440*720
-
Keys:
-
Physical keys: Power on/off, Volume + /-, Scan
-
Input:
-
Chinese/English, and supports handwriting and soft keyboard
-
Radio Communication:
-
WIFI, BT, 4G, 3G, 2G
-
Payment:
-
Magcard reader, Smart Card reader, Contactless Card reader
-
Printer:
-
High-Speed Thermal Printer; 58mm printing paper; 40mm paper roll
-
Rear Camera:
-
5MP camera with LED flash and auto-focus function
-
LEDS:
-
3 colors are used to indicate
-
Audio:
-
Speaker, Microphone, Buzzer
-
Warranty:
-
1 Year
Products Description

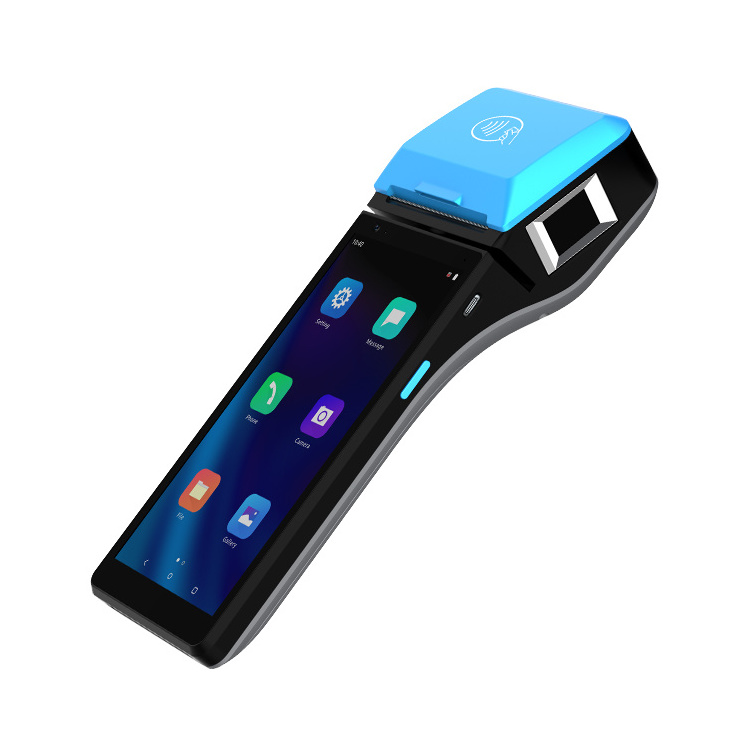

The Z500 is the cutting-edge secure electronic payment terminal powered by safe-Android 11.0 operation system.
Product Paramenters
|
OS
|
Safedroid OS (based on Android 11.0) GMS certified
|
|
CPU
|
1.8GHz Quad-Core ARM Cortex-A53
|
|
ROM
|
16GB ROM EMMC
|
|
RAM
|
2GB RAM LPDDR
|
|
Display
|
6.0 inch TFT IPS LCD, resolution 1440*720
|
|
Panel
|
Ultra sensitive capacitive touch screen, can work with gloves and wet fingers
|
|
Dimensions
|
224mm X 84mm X 18mm (max 51mm)
|
|
Weight
|
410g (Battery included)
|
|
Keys
|
Physical keys: Power on/off, Volume + /-, Scan
|
|
Input
|
Chinese/English, and supports handwriting and soft keyboard
|
|
WIFI
|
IEEE 802.11 a/b/g/n/ac, support 2.4GHz and 5GHz
|
|
BT
|
BT 5.0 and earlier
|
|
4G
|
European version(Default):
FDD-LTE: B1/B3/B7/B8/B20/B28 TDD-LTE: B38/B40/B41 |
|
3G
|
European version(Default):
WCDMA: B1/B8 |
|
2G
|
European version(Default):
GSM/GPRS/EDGE: 900/1800MHz |
|
Magcard reader
|
Supports ISO7811/7812/7813, and supports triple track (tracks 1/2/3), bi-directional
|
|
Smart Card reader
|
Supports ISO7816 standard
|
|
Contactless Card reader
|
Supports 14443A/ 14443B
|
|
Printer
|
High-Speed Thermal Printer;
58mm printing paper; 40mm paper roll |
|
Rear Camera
|
5MP camera with LED flash and auto-focus function
|
|
Satellite Positioning
|
Support GPS(A-GPS)/ Bei-Dou/ Glonass or Galileo
|
|
LEDS
|
3 colors are used to indicate
|
|
Audio
|
Speaker, Microphone, Buzzer
|
|
Interfaces
|
Micro SD Card Slot*1, SIM Card Slot*2, PSAM Card Slot*2, Type C USB*1
|
|
Battery
|
Li-ion battery, 7.6V/2600mAh
|
|
Charging Port
|
Type C USB Port, 5V DC/2A
|
|
Operating Temperature
|
-10°C to 50°C
|
|
Storage Temperature
|
-20°C to 70°C
|
|
Humidity
|
5% to 95% Relative Humidity, Non-Condensing
|
|
Electromagnetic
|
CE, RoHS, FCC
|
