Quick Details
-
Model Number:
-

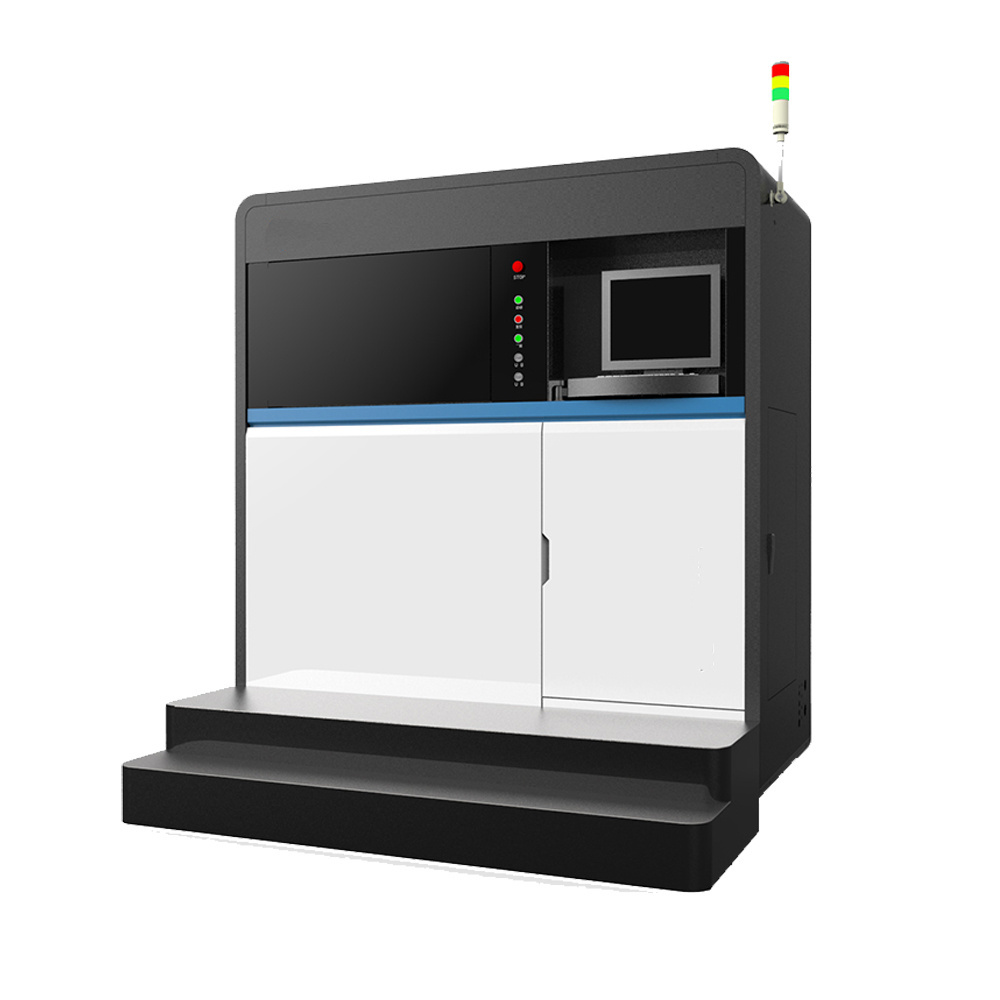

HYT-A062X, HYT-A062X Laser 3D Printing
-
Brand Name:
-
HOYITE
-
Processing Type:
-
Laser 3D Printing
-
Tolerance:
-
0.005-0.01mm
-
Scanner:
-
Scanlab
-
Diameter of laser beam:
-
80 - 120 μm
-
Exposure speed:
-
Up to 7m/s
-
Layer thickness:
-
20 - 60 μm
-
OEM / ODM:
-
Welcome
Quick Details
-
CNC Machining or Not:
-
Cnc Machining
-
Material Capabilities:
-
Aluminum, Bronze, Hardened Metals, Precious Metals, Stainless steel
-
Place of Origin:
-
Tianjin, China, Tianjin of China(Mainland)
-
Model Number:
-
HYT-A062X, HYT-A062X Laser 3D Printing
-
Brand Name:
-
HOYITE
-
Processing Type:
-
Laser 3D Printing
-
Tolerance:
-
0.005-0.01mm
-
Scanner:
-
Scanlab
-
Diameter of laser beam:
-
80 - 120 μm
-
Exposure speed:
-
Up to 7m/s
-
Layer thickness:
-
20 - 60 μm
-
OEM / ODM:
-
Welcome
Product Description
HOYITE has a strong strength in the research and development, sales, technical support and other aspects of laser melting equipment, multi-directional, omni-channel to provide customers with stable and efficient advanced equipment and technical support.And can be modified and customized according to customer needs.
Specification
|
Net Building Size
|
Single laser, 260x260x400mm
Dual laser, 260x400x400mm |
|
Laser
|
IPG 500W fiber laser
|
|
Scanner
|
Scanlab
|
|
Diameter of laser beam
|
80 - 120 μm
|
|
Exposure speed
|
Up to 7m/s
|
|
Layer thickness
|
20 - 60 μm
|
|
Building precision
|
±0.06mm (XY direction)
|
|
Repeatability of position
|
0.005mm(z-axis)
|
|
Protective gas
|
Nitrogen/Argon
|
|
Voltage / Power
|
380V, 50hz, 15kw
|
|
Dimensions
|
2.1x1.4x2.4 meters (WXDXH)
|
|
Weight
|
Approx. 2500KG
|
Advantages
Advantages of equipment
1, High reliability,
HYT - A062X
core parts are all selected from domestic and foreign top suppliers, high precision, reliable performance, high degree of automation, easy installation and debugging, good man-machine interaction.
2. High efficiency and stability， HYT - A062X has outstanding effects in forming efficiency, process optimization and smoke filtration, reducing inert gas consumption and purifying filter life up to 1500 h.
3. High openness，HYT - A062X opens different application interfaces for different use requirements of factories, schools and research institutes, so as to obtain the best use effect in different fields.
4, Modular structure，the overall structure is compact, the layout is reasonable, the appearance is beautiful and generous, with good operability and maintenance, easy to disassemble, installation, debugging, maintenance.
5. Comprehensive solution，providing solutions from raw materials, powder treatment, processing technology, process analysis, and post-treatment methods.
2. High efficiency and stability， HYT - A062X has outstanding effects in forming efficiency, process optimization and smoke filtration, reducing inert gas consumption and purifying filter life up to 1500 h.
3. High openness，HYT - A062X opens different application interfaces for different use requirements of factories, schools and research institutes, so as to obtain the best use effect in different fields.
4, Modular structure，the overall structure is compact, the layout is reasonable, the appearance is beautiful and generous, with good operability and maintenance, easy to disassemble, installation, debugging, maintenance.
5. Comprehensive solution，providing solutions from raw materials, powder treatment, processing technology, process analysis, and post-treatment methods.
Functional Features
Functional features
1. IPG is adopted to produce water-cooled fiber laser with rated power of 500W. In addition, HYT-A062X has a variety of lasers to choose from: 400W, 700W and 1000W.
2. The volume of the forming bin reaches: 260×260×430mm, and the forming size of the equipment of the same level is 250×250×325mm, with a year-on-year increase of 40%!
3. The multi-stage gas filtration solution can increase the service life by more than two times, reduce the cost and greatly reduce the manual replacement frequency.
Application
University
Aerospace Military
Medical
Mould
Vehicle
Artwork
Quality Control
Parts for nuclear power plant case
Application: Parts for nuclear power plant
Value: using lase cladding process to repair the worn parts.
The repaired parts, with multi gradient materials, can even get better performance than the original parts.
Fuel spray rod case
Application: Fuel spray rod
Traditional Design: welding with 14 seams, very low quality passing rate. Value: Integrated design without welding seams, 6 parts/time on HYT-A062X, 100% quality passing rate.
Factory Photos
HOYITE Group currently has more than 600 employees, including 157 technical R&D teams, mainly from Tsinghua University, Peking University, Beijing Aviation University, Beijing Institute of Technology, Beijing Institute of Technology, USTB, Huazhong University of Science and Technology, Beijing University of Chemical Technology and other national key universities, as well as some overseas talents and team members. More than 70% have more than 10 years of experience in this field. T Using their own advantages, and group with several scientific research institutes to carry out the 3 d printing technology cooperation, to undertake a large number of national key type structure in the field of high-end manufacturing products development and production tasks, the product has been applied in more than 30 aircraft, rockets, missiles, satellites, spacecraft, the space station, ships, nuclear power and other equipment, breaking a number of foreign technology monopoly and filling the domestic gap.
