Quick Details
-
Power:
-
4kw
-
Min. Lifting Height:
-
1.76m
-
Table Size:
-
2.27*1.12m
-
Overall Dimensions:
-
2.44*1.39*1.76m
-
Weight:
-
2420 kg
-
Color:
-
Customers' Requirements
-
Material:
-
High Strength Steel
-
Voltage:
-
110v 220v 240v 380v Optional
-
Type:
-
mechanical scissor lift on tracks
-
Feature:
-
electric scissor lift on tracks
-
Application:
-
Aerial Work
-
Usage:
-
Higher Level
-
Product name:
-
street light lift hydraulic man crawler scissor lift platform
-
Grade ability:
-
25%
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XINJUXIN
-
Power:
-
4kw
-
Min. Lifting Height:
-
1.76m
-
Table Size:
-
2.27*1.12m
-
Overall Dimensions:
-
2.44*1.39*1.76m
-
Weight:
-
2420 kg
-
Color:
-
Customers' Requirements
-
Material:
-
High Strength Steel
-
Voltage:
-
110v 220v 240v 380v Optional
-
Type:
-
mechanical scissor lift on tracks
-
Feature:
-
electric scissor lift on tracks
-
Application:
-
Aerial Work
-
Usage:
-
Higher Level
-
Product name:
-
street light lift hydraulic man crawler scissor lift platform
-
Grade ability:
-
25%
4-14M Outside Hydraulic Electric Tracked Crawler Scissor Lifting Platform Table for Tough Terrain Road Construction Building
Products Description

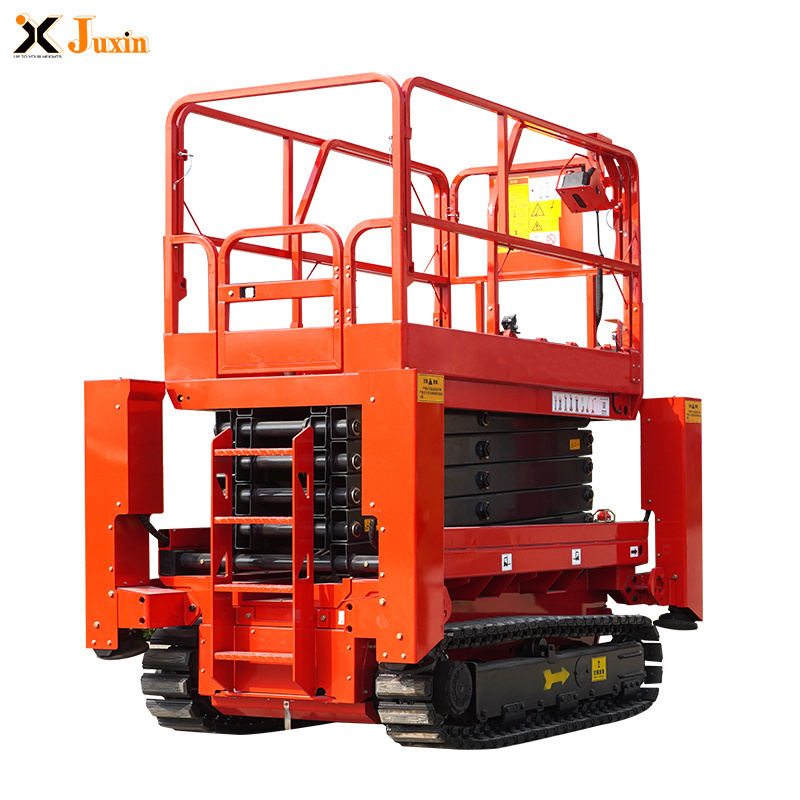

Crawler Scissor Lift with Outrigger
(1)Intelligent Internet:
Intelligent human-computer interaction system, easy to obtain equipment status (location, working condition information, abnormal warning, etc.), intelligent interconnection, automatic display of fault codes, and effective operation management.
(2)Run efficiently:
Great battery life.
Breaking the traditional operating mode of crawler equipment, it uses a single handle to control steering and walking, which can achieve in-situ steering, good maneuverability and simpler operation.
(3)Reliable performance:
Matching overload sensor, high safety factor.
Lift proportional valve control is precise and flexible, greatly improving the smoothness of the action.
The scissor arms are made of Q500D material, which has high strength, low weight, safety and reliability.
(4)Strong off-road capability:
Driven by a high-power AC motor, it has strong power, high efficiency and long endurance.
Hydraulic outriggers, one-click leveling, convenient and reliable, suitable for road operations such as mud, sand, Gobi gravel,etc.
(5)low maintenance cost:
Integrated drawer-type tray for easy maintenance.
Self-lubricating composite fiber bushing, maintenance-free.
The same series adopts universal and modular design. The universal rate of scissor forklifts is more than 80%, and the parts of the same type of equipment are common.
(2)Run efficiently:
Great battery life.
Breaking the traditional operating mode of crawler equipment, it uses a single handle to control steering and walking, which can achieve in-situ steering, good maneuverability and simpler operation.
(3)Reliable performance:
Matching overload sensor, high safety factor.
Lift proportional valve control is precise and flexible, greatly improving the smoothness of the action.
The scissor arms are made of Q500D material, which has high strength, low weight, safety and reliability.
(4)Strong off-road capability:
Driven by a high-power AC motor, it has strong power, high efficiency and long endurance.
Hydraulic outriggers, one-click leveling, convenient and reliable, suitable for road operations such as mud, sand, Gobi gravel,etc.
(5)low maintenance cost:
Integrated drawer-type tray for easy maintenance.
Self-lubricating composite fiber bushing, maintenance-free.
The same series adopts universal and modular design. The universal rate of scissor forklifts is more than 80%, and the parts of the same type of equipment are common.
Specification
|
Model
|
Platform Height(m)
|
Working Height(m)
|
Platform Size(m)
|
Load
(kg) |
Overall Dimension
(l*w*h) |
Lifting Motor
(V/kw) |
Weight
(kg) |
|
GTJZ0615LDS
|
6
|
8
|
2.27*1.12
|
450
|
2.782*1.581*1.745
|
48/4
|
2800
|
|
GTJZ0710LDS
|
6.7
|
9
|
1.859*0.81
|
230
|
2.4*1.01*1.83
|
24/2.2
|
1940
|
|
GTJZ0815LDS
|
8
|
10
|
2.27*1.11
|
450
|
2.767*1.5*1.9
|
48/4
|
3014
|
|
GTJZ1015LDS
|
9.75
|
12
|
2.27*1.11
|
320
|
2.767*1.5*2.025
|
48/4
|
3300
|
|
GTJZ1215LDS
|
11.75
|
14
|
2.27*1.11
|
320
|
2.767*1.5*2.18
|
48/4
|
3480
|
|
GTJZ1415LDS
|
13.75
|
16
|
2.64*1.11
|
230
|
2.977*1.5*2.285
|
48/5
|
4880
|
Product Details
Self-propelled Track Crawler Scissor Lifts are electric drive, 24v or 48v optional. Our tracked scissor lifts are
construction•oriented, and can increase operator productivity on demanding outdoor worksites, having advantages such as strong capacity, convenient operation, safety, reliability and good quality.
Our electric powered scissor Lifts are energy-saving and environmentally-friendly with less noise and no emission. With the maximum working height of 6m to 12m, it is suitable for rough terrain outdoor working environment. Crawler self propelled scissor lift can work without being limited by the road conditions. This kind of scissor lift is perfectly suitable for bad road conditions, such as muddy, snowy, sandy road. With stable and secure structure, it is widely used for wild jungle, prairie,field...
construction•oriented, and can increase operator productivity on demanding outdoor worksites, having advantages such as strong capacity, convenient operation, safety, reliability and good quality.
Our electric powered scissor Lifts are energy-saving and environmentally-friendly with less noise and no emission. With the maximum working height of 6m to 12m, it is suitable for rough terrain outdoor working environment. Crawler self propelled scissor lift can work without being limited by the road conditions. This kind of scissor lift is perfectly suitable for bad road conditions, such as muddy, snowy, sandy road. With stable and secure structure, it is widely used for wild jungle, prairie,field...
