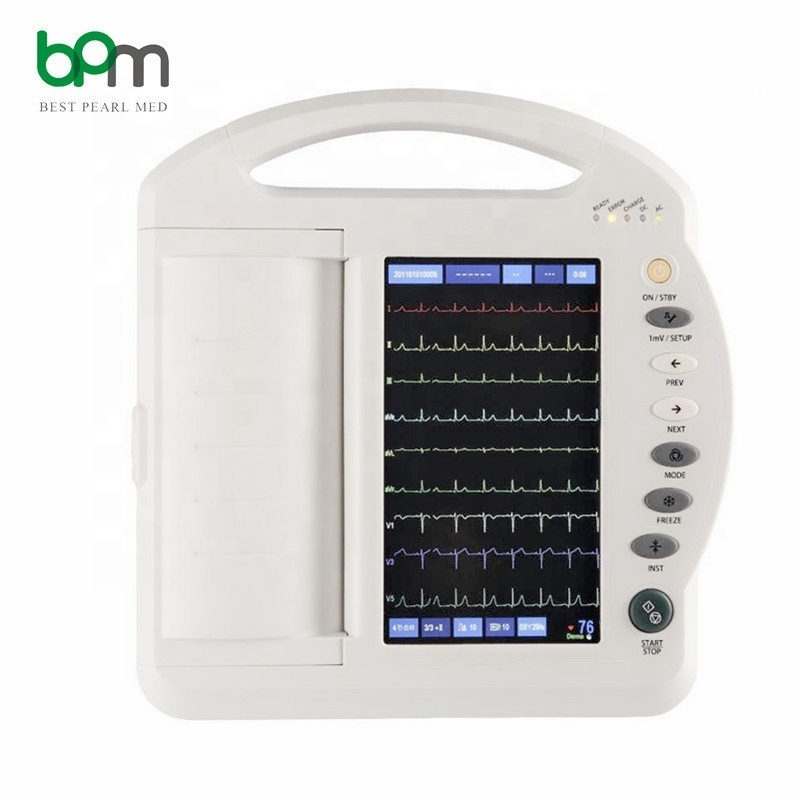

BPM-E1204 Touch screen ECG Machine 12 Channel

BPM-E1204 Touch screen ECG Machine 12 Channel

FOB Reference Price: Get Latest Price

≥1 Pieces

US $500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: BPM

Model Number:: BPM-E1204

Type:: Pathological Analysis Equipments

Lead:: 12 leads

Screen:: 10 inches, Color Touch screen LCD

Simultaneous acquisition:: 12-lead simultaneous acquisition

Operation modes:: Manual/Auto/Arrhythmia Analysis Modes

Rhythm:: 12-channel recording with a rhythm lead

Filter:: Digital filters eliminate EMG, AC, Baseline Drift interference

Built-in battery:: Built in rechargeable Li-ion battery, 3 hours continuous working

Print speed:: 5; 6.25; 10; 12.5; 25' 50mm/s±2%

Save:: 250 patients save/replay

Quick Details

Warranty:: 1 Year

After-sale Service:: Free spare parts

Place of Origin:: Henan, China

Brand Name:: BPM

Model Number:: BPM-E1204

Type:: Pathological Analysis Equipments

Lead:: 12 leads

Screen:: 10 inches, Color Touch screen LCD

Simultaneous acquisition:: 12-lead simultaneous acquisition

Operation modes:: Manual/Auto/Arrhythmia Analysis Modes

Rhythm:: 12-channel recording with a rhythm lead

Filter:: Digital filters eliminate EMG, AC, Baseline Drift interference

Built-in battery:: Built in rechargeable Li-ion battery, 3 hours continuous working

Print speed:: 5; 6.25; 10; 12.5; 25' 50mm/s±2%

Save:: 250 patients save/replay

Contact for price

Ms. Nandy Wu

WhatsApp: 0086- 13598095446

WeChat: 0086-13598095446

Email: nandy @ bpmedicals.com

Skype: nandy wu

Tel: 0086-371-57181877

www.bpmedicals.com

BPM-E1204 Touch screen ECG Machine 12 Channel

Features:

1024*600 10inch color touchscreen display
12 channel ECG machine with interpretation
12-lead ECG simultaneous acquisition
Multiple operation modes: Manual/Auto/Arrhythmia Analysis Modes
12-channel recording with a rhythm lead
Digital filters eliminate EMG, AC, Baseline Drift interference
Built in rechargeable Li-ion battery, 3 hours continuous working
Adapt 110-240V, 50/60Hz AC power supply
250 patients save/replay
Built in USB/RS232 interface

Specification:

Power Supply	100-120V or 220-240V, 50/60Hz or internal rechargeable battery with lifetime of 60 minutes
Safety	Class I, type CF
LCD display	Backlit high resolution 1024 x 600 10 inch touchscreen display 12 channel ECG waveform simultaneously
Leads	12 STANDARD or CABRERA leads
Defibrillation protection	Internal, according to current regulations
Recording modes	Manual, automatic sequential, automatic simultaneous, Rhythm lead selectable
Print Channels	12 channels , Rhythm lead selectable
Writing system	High-resolution thermal printer (8 dots/mm); Horizontal 40 dots/mm
Thermal paper	216mm wide 20M thermal paper in Z-fold packers or in rolls
Paper speed	5 - 6.25 - 10 - 12.5 - 25 - 50mm/s ± 3%
Recording sensitivity	Auto or Manual: 1.25 - 2.5 - 5 - 10 - 20 - 40mm/mV ±3%
Input dynamics	±500 mV @ 0 Hz ± 10 mV in the pass band
Input impedance	50 MΩ DC
Power requirements	AC220V/50Hz
Common-mode rejection	> 90 dB
Frequency response	0.05 to 150 Hz
Time constant	>3.3 s
Data acquisition	12 bits; 1000 samples/sec/channel when printing, filtering and computing
Fuse Specification	2Φ5x20mm
Case storage	150 cases at least, can be stored on external SD card
Patient Cable	standard 10 leads
Resolution	3.125 uV/bit
Filters	Low pass filter off 75 Hz, 100 Hz, 150 Hz
	Muscle filter: 25 or 35 Hz digital filters (-3 dB/oct)
	AC filter: digital notch filters 50 or 60 Hz selectable, - 20 dB or better
	Drift filter: 0.5 Hz high pass linear phase digital filter
Net weight	3.7kg (8.14 lb)
Gross weight	5.2kg (11.44lb)

ecg machine 12 channel

Accessories:

1		Patient Cable
2		Chest Electrodes
3		Limb Electrodes
4		Grounding Cable
* Power cable, Printing paper and English manual are also included.

About BPM

BPM has devoted to OR equipment production for over 12 years. With professional R&D, Production, Sales and Services departments, BPM is serving customers from more than 128 countries. We keep upgrading our products in accordance with customers’ feedback and latest technologies, cost-effective and user-friendly product is always our final aim.

FAQ

1. Are you the manufacturer or trading company?	We are the original manufacturer with over 12 years production experience. Welcome to visit our factory at anytime.
2. How to guarantee customers’ rights and interests?	We offer up to $10000 US dollars compensation if any problems on our side, we accept Trade Assurance Orders of Alibaba.
3. Can you customize the products?	Yes, we have our own R&D department, which makes us can do OEM for you
4. How long is the warranty period ?	Depends on different products, from 1 year to 3 years etc.
5. How about the delivery time?	Usually 3~10 days. We will send out your goods within 2 days if we have stock.
