Quick Details
-
Dimension(L*W*H):
-
9300*2900*3300mm
-
Weight:
-
3500kg
-
Paper size (A*B):
-
200-830mm
-
Paper width:
-
120-480mm
-
Cardboard thickness:
-
80-300g
-
Position precision:
-
≤0.1mm
-
Edge folding depth:
-
Rmin 20mm Rmax 100mm
-
Production speed:
-
0-35 boxes/min
-
Heater power:
-
13kw
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Peru, Mexico
-
Marketing Type:
-
New Product 2020
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Wity
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
9300*2900*3300mm
-
Weight:
-
3500kg
-
Paper size (A*B):
-
200-830mm
-
Paper width:
-
120-480mm
-
Cardboard thickness:
-
80-300g
-
Position precision:
-
≤0.1mm
-
Edge folding depth:
-
Rmin 20mm Rmax 100mm
-
Production speed:
-
0-35 boxes/min
-
Heater power:
-
13kw
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Peru, Mexico
-
Marketing Type:
-
New Product 2020
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Product Description

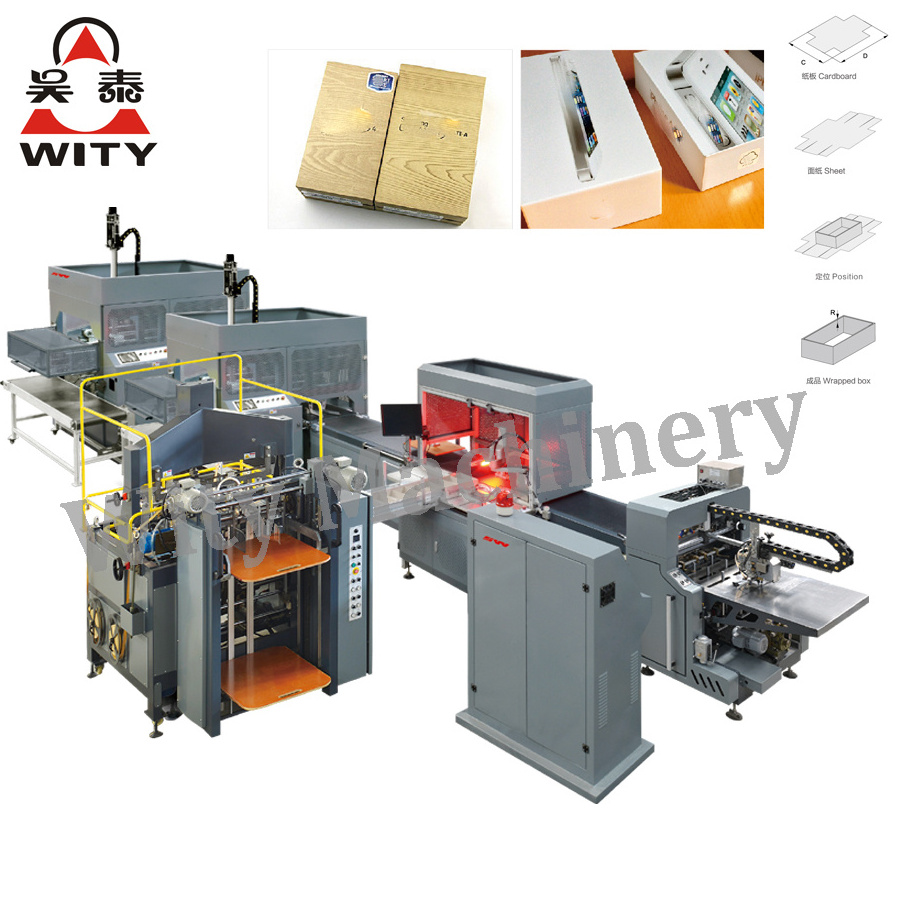

SJ 420YS Automatic rigid box making machine
This machine is mainly used for producing boutique boxes with high requirements, like high grade boxes for iPhone, iPad, Jewelry gift, makeup, etc. It can work with Rigid Box Molding & Folding Machine according to requirement of the boxes.
Specification
|
Model
|
SJ420Y
|
SJ420YS
|
|
Paper size (A*B)
|
200-830mm
|
200-830mm
|
|
Paper width
|
120-480mm
|
120-480mm
|
|
Cardboard thickness
|
80-300g
|
80-300g
|
|
Box size (W*L*H)
|
Wmin 50mm
Wmax 320mm Lmin 100mm Lmax 420mm Hmin 15mm Hmax 150mm |
Wmin 50mm
Wmax 320mm Lmin 100mm Lmax 420mm Hmin 15mm Hmax 150mm |
|
Position precision
|
≤0.1mm
|
≤0.1mm
|
|
Edge folding depth
|
Rmin 20mm
Rmax 100mm |
Rmin 20mm
Rmax 100mm |
|
Production speed
|
0-18 boxes/min
|
0-35 boxes/min
|
|
Heater power
|
13kw
|
13kw
|
|
Power
|
4.5kw
|
4.5kw
|
|
Machine dimensions
|
7300*2900*3300mm
|
9300*2900*3300mm
|
|
Machine weight
|
3000kg
|
3500kg
|
|
Voltage
|
220V/380V
|
220V/380V
|
Feature
1. Adopts paper feeding principle same with automatic rigid box maker, with stable performance.
2. Adopts YAMAHA robot, can automatically fetch the rough box to the required position accurately.
3. Adopts visual positioning system, the positioning accuracy is ≤±0.15mm.
