Quick Details
-
Place of Origin:
-
Henan, China
-
Weight:
-
0.6 kg
-
Electric Energy:
-
0 Wh
-
Product name:
-
Battery Separator for li-ion battery
Quick Details
-
Battery Size:
-
li-ion battery
-
Brand Name:
-
Celgard
-
Model Number:
-
Celgard 2400
-
Place of Origin:
-
Henan, China
-
Weight:
-
0.6 kg
-
Electric Energy:
-
0 Wh
-
Product name:
-
Battery Separator for li-ion battery

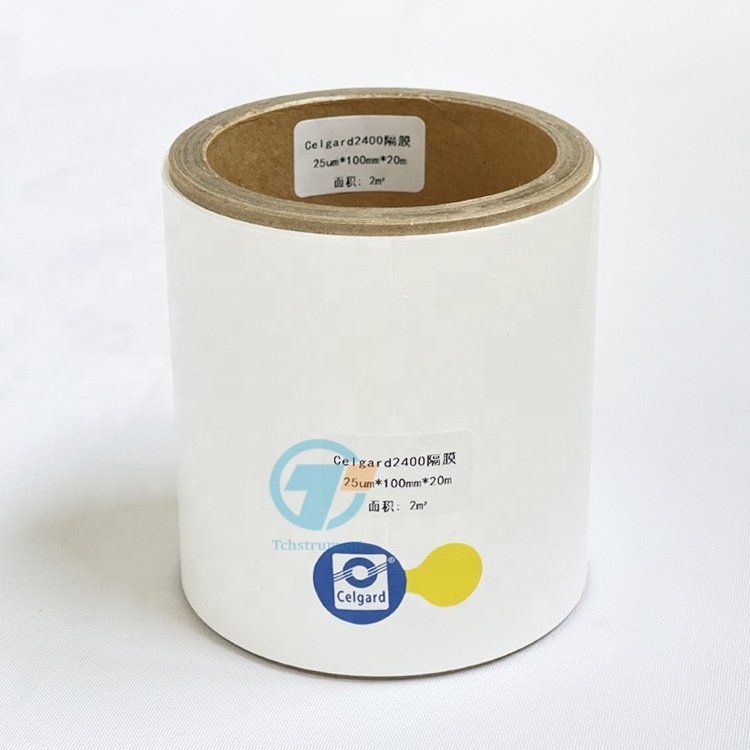

25 um Microporous PP Celgard 2400 Battery Separator 100mm*20m
Description
25 μm Microporous Monolayer Membrane (PP)
Primary Application
Low Temperature Primary Lithium Batteries
Product Features
1. 25 um microporous monolayer membrane (PP)
, Excellent resistance to acids, bases & most chemicals
2. Uniform pore structure with high chemical and thermal stbility
3. Zero TD shrinkage reduces internal shorting and improves high temperature dimensional stability
4. Oxidation resistance for excellent cycling and trickle charge performance
Specification of the 25 um Microporous Celgard 2400 Battery Separator 100mm*20m for li-ion battery
| Basic Film Properties | Unit of Measure | Typical Value Thickness |
| Thickness | μm | 25 |
| Gurley (JIS) | Seconds | 620 |
| Porosity | % | 41 |
| PP pore size(average diameter) | um | 0.043 |
| TD Shrinkage @ 90°C / 1 Hour | % | 0 |
| MD Shrinkage @ 90°C / 1 Hour | % | 5 |
| Puncture Strength, MD | Kg/cm2 | 1420 |
| Tensile Strength, TD | Kg/cm2 | 140 |
| Puncture strength | Grams | 450 |
Size: 100mm*20m
Other Size list for your choice
2400 60mm*10m
2400 60mm*20m
2400 60mm*60m
2400 85mm*10m
2400 85mm*20m
2400 85mm*60m
2500 60mm*10m
2500 60mm*20m
2500 60mm*60m
2500 85mm*10m
2500 85mm*20m
2500 85mm*60m
2325 60mm*10m
2325 60mm*20m
2325 60mm*60m
2325 85mm*10m
2325 85mm*20m
2325 85mm*60m
2400 100mm*20m
2500 100mm*20m
2400 60mm*400m
2400 85mm*400m
2500 60mm*300m
2400/2500/2325 130mm*20m
reference of the 25 um Microporous PP Celgard 2400 Battery Separator 100mm*20m
