Quick Details
-
Model Number:
-
BT022
-
thickness of razor:
-
0.45±0.05mm
-
coil weight:
-
common weight is6kg 7KG 10KG, 12kg,
-
Diameter:
-
2.5mm+-0.1mm
-
Packing:
-
waterproof paper +Woven Bag
-
Application:
-
Protective Construction
Quick Details
-
Material:
-
Steel Wire
-
Place of Origin:
-
Hebei, China, China
-
Brand Name:
-
yongyuan
-
Model Number:
-
BT022
-
thickness of razor:
-
0.45±0.05mm
-
coil weight:
-
common weight is6kg 7KG 10KG, 12kg,
-
Diameter:
-
2.5mm+-0.1mm
-
Packing:
-
waterproof paper +Woven Bag
-
Application:
-
Protective Construction
Products Description

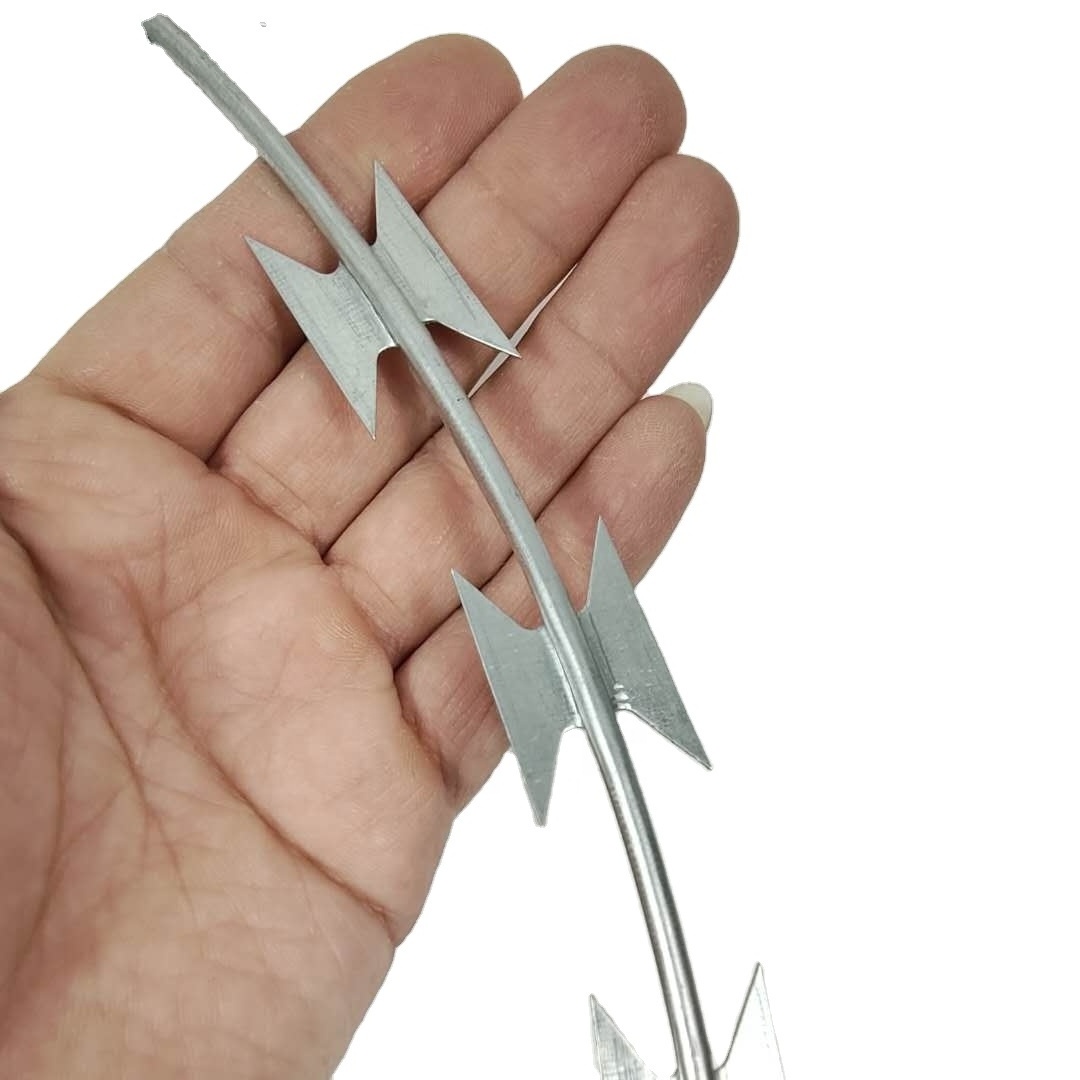

1. Material: Hot Dipped Galvanized sheet Hot Dipped Galvanized Wire / Electro Galvanized sheet Hot Dipped Galvanized Wire
2. Core Wire Diameter: 2.7±0.1mm / 2.5±0.1mm
Razor Barbed sheet thickness: 0.45±0.05mm
3.Razor Barbed Wire per coil weight: Be produced as customers requirements. (common weight is 7KG 10KG, 12kg,14kg)
2. Core Wire Diameter: 2.7±0.1mm / 2.5±0.1mm
Razor Barbed sheet thickness: 0.45±0.05mm
3.Razor Barbed Wire per coil weight: Be produced as customers requirements. (common weight is 7KG 10KG, 12kg,14kg)
Razor Loop Diameter: 600mm Other Coil diameter for u choose: 300mm, 400mm, 450mm, 500mm,
600mm, 700mm, 800mm, 900mm, 1000mm.
450mm(3 clips), 500mm(3 clips), 600mm(3 clips)900mm(5 clips) are the usually sizes
Razor Thickness :0.45±0.05mm
Barb Length:22±1mm
Barb Width :15±1mm
Barb Space :34±1mm
Core Wire Dia. : 2.5±0.1mm
600mm, 700mm, 800mm, 900mm, 1000mm.
450mm(3 clips), 500mm(3 clips), 600mm(3 clips)900mm(5 clips) are the usually sizes
Razor Thickness :0.45±0.05mm
Barb Length:22±1mm
Barb Width :15±1mm
Barb Space :34±1mm
Core Wire Dia. : 2.5±0.1mm
specfication
|
Blade Specification
|
Blade Thickness
|
Core Wire Dia.
|
Blade Length
|
Blade Width
|
Blade Space
|
|
BTO-10
|
0.5±0.05
|
2.5±0.1
|
10±1
|
13±1
|
26±1
|
|
BTO-12
|
0.5±0.05
|
2.5±0.1
|
12±1
|
15±1
|
26±1
|
|
BTO-18
|
0.5±0.05
|
2.5±0.1
|
18±1
|
15±1
|
33±1
|
|
BTO-22
|
0.5±0.05
|
2.5±0.1
|
22±1
|
15±1
|
34±1
|
|
BTO-28
|
0.5±0.05
|
2.5
|
28
|
15
|
45±1
|
|
BTO-30
|
0.5±0.05
|
2.5
|
30
|
18
|
45±1
|
|
CBT-60
|
0.6±0.05
|
2.5±0.1
|
60±2
|
32±1
|
100±2
|
|
CBT-65
|
0.6±0.05
|
2.5±0.1
|
65±2
|
21±1
|
100±2
|
|
Outside Diameter
|
Standard Length per Coil
|
Type
|
Notes
|
|
450 mm
|
8m
|
CBT-65
|
Single coil
|
|
500 mm
|
10m
|
CBT-65
|
Single coil
|
|
700 mm
|
10m
|
CBT-65
|
Single coil
|
|
960 mm
|
13m
|
CBT-65
|
Single coil
|
|
500 mm
|
16m
|
BTO-10.15.22
|
Cross type
|
|
600 mm
|
14m
|
BTO-10.15.22
|
Cross type
|
|
700 mm
|
12m
|
BTO-10.15.22
|
Cross type
|
|
800 mm
|
10m
|
BTO-10.15.22
|
Cross type
|
|
960 mm
|
9m
|
BTO-10.15.22
|
Cross type
|
