Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YILI
-
color:
-
red
-
After Warranty Service:
-
Video technical support
Quick Details
-
Weight (KG):
-
200
-
Type:
-
farm machine
-
Use:
-
ditching
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YILI
-
color:
-
red
-
After Warranty Service:
-
Video technical support

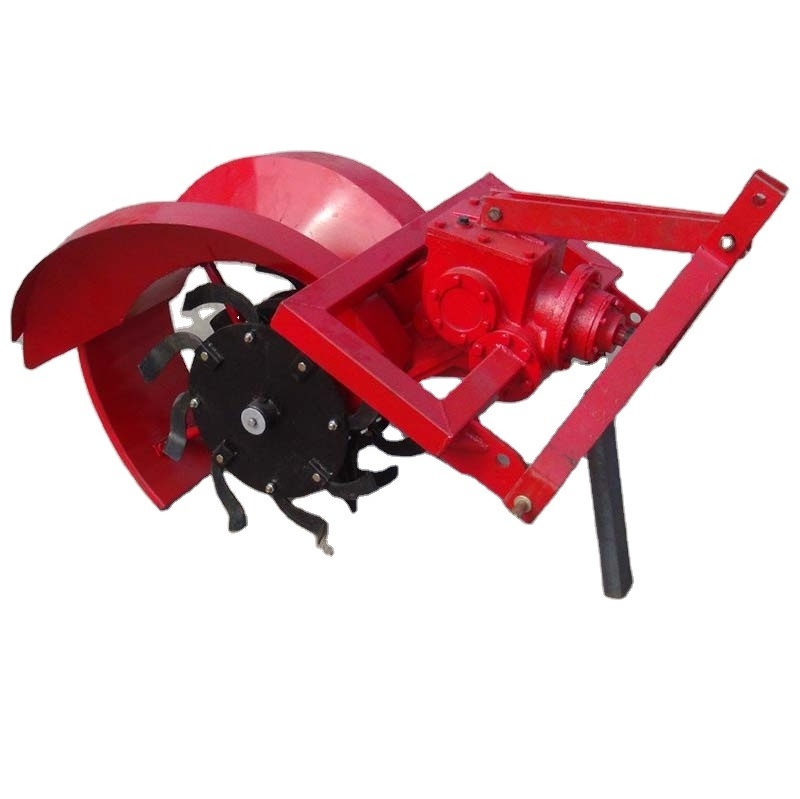

Farm trencher
Series of model 1K-16-26 and 1K-30-20 ditcher is designed by us based on the rotary tiller of model 1G-100 combined with ditching part.
The power is transmitted through power transmission shaft, middle gearbox, shaft –II and side gearbox, finally to ditching part for working.
The machine design is reasonable and easy to be assembled and adjusted.
The features
The dike thereby ditched is straight in configuration, with the wall sloped and the depth and width unanimously, which is out of the capacity of manual power and excavators. The ditcher is mainly applied to the ditching operation for the pavement of underground pipelines for farmland irrigation,tap water pipelines and underground cables.1.5 Compact construct, and some show steady capability, universal fitting
Main Specifications
|
Ditcher model |
1k-16-26 |
1k-30-20 |
||
|
Width of the ditch ( m m) |
Top: 16 0 ; Bottom: 10 0 |
Top: 3 0 0; Bottom: 12 0 |
||
|
Soil throw off range (m m ) |
Right: 1 000 ; Left: 1 000 |
Right: 1 000 ; Left: 1 000 |
||
|
Depth of ditch ( m m) |
26 0 |
20 0 |
||
|
Type and nos |
ditching bent blade |
IT245 , R: 6; L: 6 |
IT245 , R: 8; L: 8 |
|
|
wall cutting blade |
Straight blade, R:2; L: 2 |
Straight blade, R:2; L: 2 |
||
|
Overall dimension( cm ) |
109×125×116 |
109×125×118 |
||
|
Diameter of the blade plate( cm )
|
69 |
60 |
||
|
Total weight( kg ) |
210 |
220 |
||
|
Fitted power(HP) |
18-50 |
|||
|
0Rotary speed of the blade axle (rpm) |
252 |
|||
|
Type of mounting |
3 points mounting |
|||
|
Forwarding speed ( km/h ) |
Ⅰ-Ⅱshift |
|||
Application area :
2.1 Widely used in farm irrigation ditch,the agriculture planting which needs the deep buried
2.2 The laying of cables, optical fiber and other equipments in the communication engineering project
2.3 Can Put the water pipe or other equipments which need deep buried in the finished ditcher
Brief Introduction
Yucheng Yili Machinery Co., Ltd. is a professional company of designing, manufacturing and selling agricultural machinery and farming tools as well as other machineries and spare parts. There are 65 staffs including 15 engineers and technicians and 40 sets of various facilities for machining, cutting, welding and punch pressing, etc.
Main product consists of disc plough, disc harrow, share plough, rotary tiller, rotary stubble crusher, wheat planter, corn planter, cultivator, soil ridger, soil loosener, wheat and rice harvester, wheat and corn thresher, tractor trailer, slasher, gearbox, plough and harrow discs, cultivation chisels and points, hand tools, etc.
Moreover, we also can supply other products according to customer’s drawings and samples. We will satisfy our customers with the best products and services.
5. packing : inor box and according the custoner request packing
6. shipping port :QINGDAO
We sincerely welcome your inquiry, visit and cooperation with us.
