Quick Details
-
Brand Name:
-
CST
-
Use:
-
to link fiber cables
-
Warranty Time:
-
1year
-
Fiber type:
-
Single Mode 9/125, G.652D, G657A
-
Connector Type:
-
SC, ST, LC ,FC, SC/APC, FC/APC, LC/APC
-
Application:
-
Telecommunications FTTX CATV Optical communication system
-
Boot Color:
-
Blue, green , Beige...
-
Materials Ferrule:
-
Zirconia
-
Dust cap:
-
PE (white,or other)
-
Cable:
-
PVC Buffer, LZSH, Aramid yarn, PVC jacket...
-
Length:
-
1~2 meters
-
Certification:
-
RoHS
Quick Details
-
Type:
-
Fiber Pigtails
-
Model Number:
-
pigtail FC ST SC LC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CST
-
Use:
-
to link fiber cables
-
Warranty Time:
-
1year
-
Fiber type:
-
Single Mode 9/125, G.652D, G657A
-
Connector Type:
-
SC, ST, LC ,FC, SC/APC, FC/APC, LC/APC
-
Application:
-
Telecommunications FTTX CATV Optical communication system
-
Boot Color:
-
Blue, green , Beige...
-
Materials Ferrule:
-
Zirconia
-
Dust cap:
-
PE (white,or other)
-
Cable:
-
PVC Buffer, LZSH, Aramid yarn, PVC jacket...
-
Length:
-
1~2 meters
-
Certification:
-
RoHS

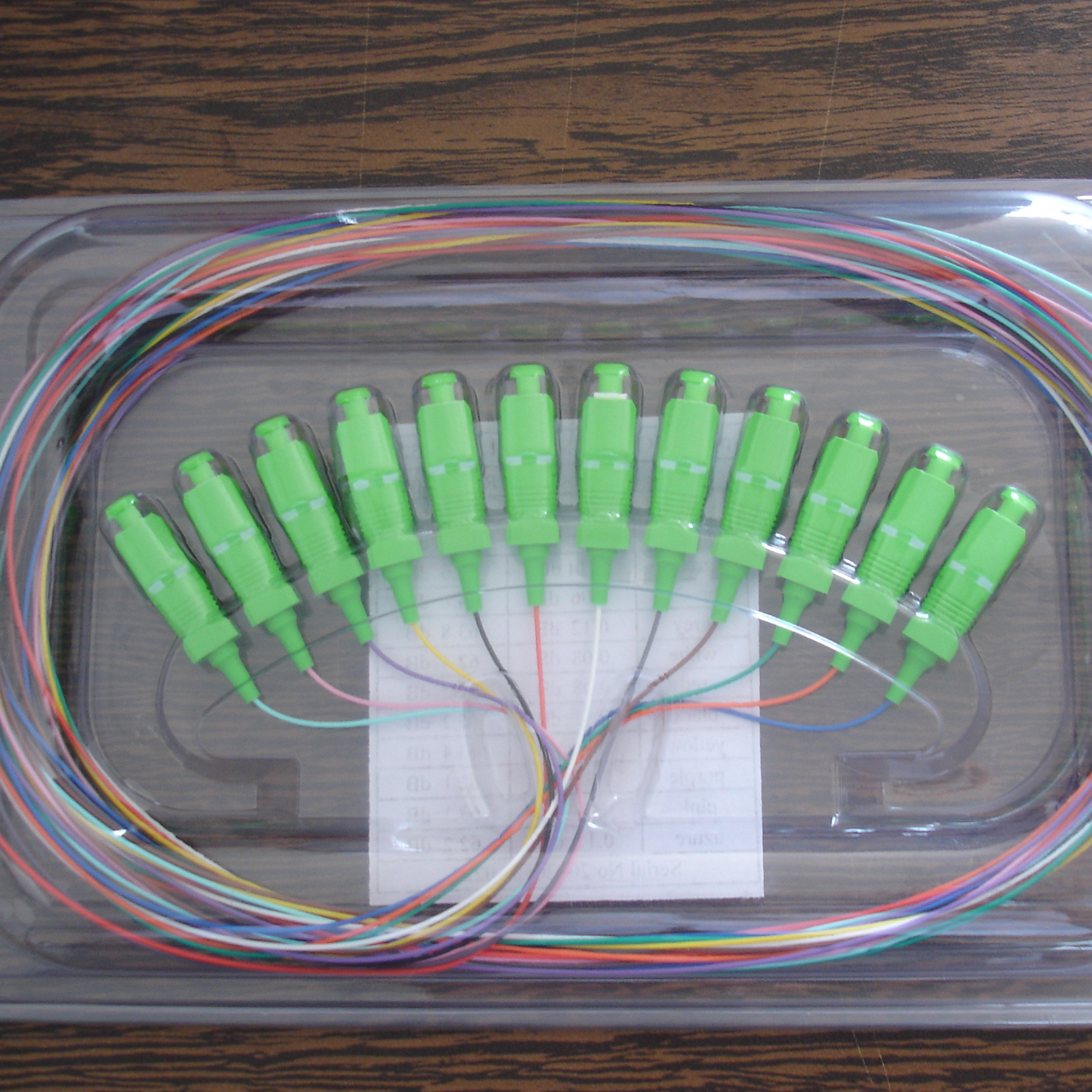

Fiber Optic Pigtail
Fiber optic pigtails the typical use is to link the fiber optic cable with fiber optic equipment, the fiber optic pigtail with connector side is used to link the equipment, while the other side of the pigtail is melted together with the fiber cable, by melting together the fiber glasses, it can reach a minimum insertion loss. Common types of fiber optic pigtails are usually with 0.9mm fiber cable diameter, and usually installed inside ODF unit. Most commonly used types are SC, ST, LC ,FC, SC/APC, FC/APC, LC/APC … fiber optic pigtail.
|
Fiber type |
SM |
9/125, G.652D, G657A |
|
|
MM |
50/125, 62.5/125, OM3 |
|
Connector |
Type |
SC, ST, LC ,FC, SC/APC, FC/APC, LC/APC |
|
|
Boot Color |
Blue, green , Beige... |
|
|
Hood |
Ø 0.9 mm, 2.0mm, 3.0mm |
|
Materials |
Ferrule |
Zirconia |
|
|
Boot |
Beige , black , yellow, green , blue... |
|
|
Dust cap |
PE (white,or other) |
|
|
Cable |
PVC Buffer, LZSH, Aramid yarn, PVC jacket… |
|
Length |
1~2 meters |
|
|
Technical Characteristics |
Insertion Loss |
< 0.3dB |
|
|
Return Loss |
SM:> 45 dB(PC) >50 (UPC), >60(APC); MM:>35 dB |
|
|
Operating Temperature |
-40°C to +85°C |
