Quick Details
-
Power:
-
Depends on capacity
-
Dimension(L*W*H):
-
Various in different models
-
Weight:
-
560 KG
-
Material:
-
SUS304/SUS316/red Copper
-
Thickness:
-
Inner 3mm External 2mm
-
Polishing:
-
0.4-0.6um/Mirror Polished
-
Heating method:
-
Steam/Electric/Gas Directly Fire
-
Control system:
-
PID/PLC/Automatic
-
Type:
-
Top and side manway
-
Keywords:
-
fermentation tank price
-
Jacket:
-
Dimple Plate Jacket,TH:3mm
-
Capacity:
-
100-5000L
-
Function:
-

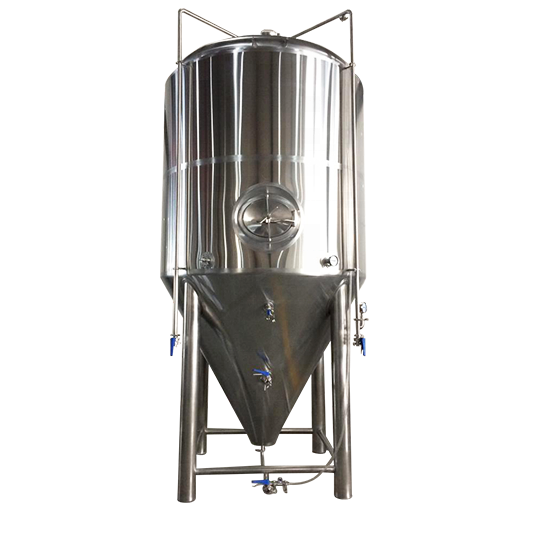

Beer Fermentation Tank
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CBET
-
Voltage:
-
3phase/380v/50Hz or customize
-
Power:
-
Depends on capacity
-
Dimension(L*W*H):
-
Various in different models
-
Weight:
-
560 KG
-
Material:
-
SUS304/SUS316/red Copper
-
Thickness:
-
Inner 3mm External 2mm
-
Polishing:
-
0.4-0.6um/Mirror Polished
-
Heating method:
-
Steam/Electric/Gas Directly Fire
-
Control system:
-
PID/PLC/Automatic
-
Type:
-
Top and side manway
-
Keywords:
-
fermentation tank price
-
Jacket:
-
Dimple Plate Jacket,TH:3mm
-
Capacity:
-
100-5000L
-
Function:
-
Beer Fermentation Tank
|
Effective volume
|
500L
|
800L
|
1000L
|
1500L
|
2000L
|
2500L
|
3000L
|
||||||
|
Total volume
|
650L
|
1050L
|
1300L
|
1950L
|
2600L
|
3250L
|
3900L
|
||||||
|
Size(mm)
|
960*2300
|
1160*2400
|
1260*2500
|
1460×2600
|
1560×3000
|
1760×2900
|
1760×3200
|
||||||
|
Material
|
SUS304/SUS316/red Copper
|
|
|
|
|
|
|
||||||
|
Control system
|
PLC Simens or PID Schneider/ABB brand
|
|
|
|
|
|
|
||||||
|
Power
|
35-120Kw Depends On The Size
|
|
|
|
|
|
|
||||||
|
Voltage
|
3 Phase/380(220, 415,480…)v/50(60)Hz; Single Phase/220(110, 240…)v/50(60)Hz
|
|
|
|
|
|
|
||||||
|
Work pressure
|
Inner Jacket 0.4MPa; Cooling Jacket 0.5Mpa
|
|
|
|
|
|
|
||||||
|
Design pressure
|
Inner Jacket 0.2MPa; Cooling Jacket 0.3Mpa
|
|
|
|
|
|
|
||||||
|
Fermentation System
|
Fermentation tank
|
|
-Pressure:3 Bar-Inner:3mm; outer:2mm; with insulation
-Cooling jackets |
|
|||
|
|
Accessories
|
|
-Yeast Saving Tank;-Dry hop port,-pressuve valve,-safety valve,-hop gun
|
|
|||
|
Cooling System
|
Glycol water tank
|
|
-Inner:3mm; outer:2mm
|
|
|||
|
|
Cold water tank
|
|
-Inner:3mm; outer:2mm
|
|
|||
|
|
Accessories
|
|
Chiller; Glycol water pump; Pipes & Valves
|
|
|||
|
CIP System
|
Acid tank, Caustic tank, Trolley
|
|
-Pump; Pipes & Valves-Accessories of the CIP System
|
|
|||
|
Control System
|
-Automatic/Semi-auto
|
|
|
|
|||
