Beer equipment 2000l steam jacketed brew kettle stainless steel mash tun for sale

ZHBrew- craft beer brewing equipment

Applications area: Beer Bars, Hotels, Restaurants, Micro brewery,etc.

Product features:

1. Appearance clean and generous: The tank is polished by mirror, and the equipment is bright;

2. Good insulation effect: The equipment is divided into two kinds of heat insulation and cold insulation, which is the best to ensure the temperature of the beer brewing process;

3. Visualization operation: the equipment is controlled by PLC, and the fermentation tank is equipped with a glass tube level gauge, which is convenient for visual operation;

4. Low energy consumption: environmental protection, energy saving, low power consumption, saving energy consumption of about 20%;

Detailed Images

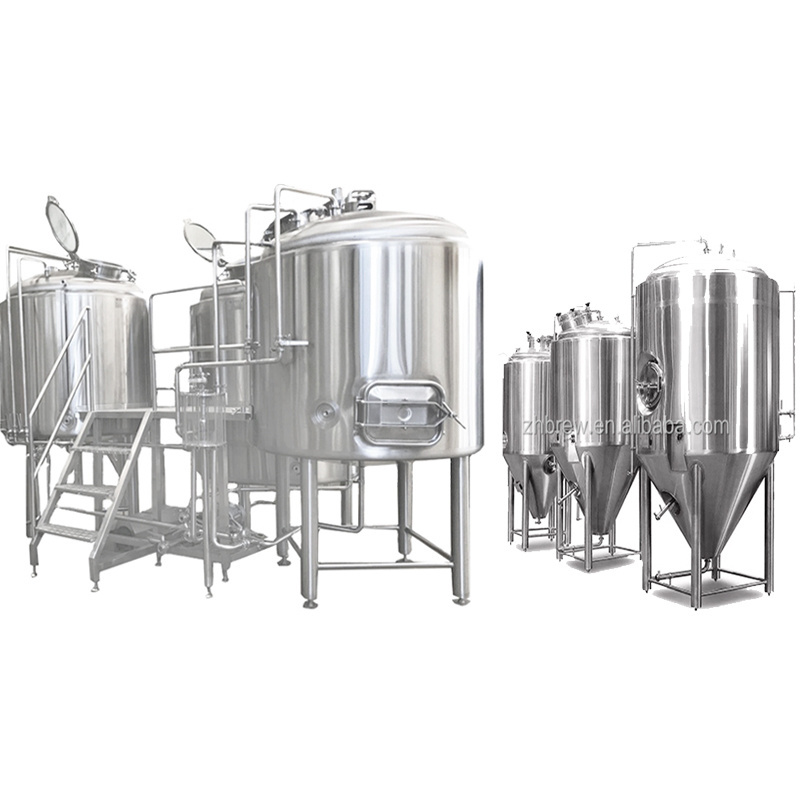

High Quality Complete commercial beer brewery equipment Microbrewery For Sale is the complete brewery project, including the mash tun, lauter tun, boiling/whirlpool tank and hot water tank, fermenters. The heating way is steam heating or direct fire heating system with diferent requirement.  This set of equipment usually used in micro brewery.

1000L 3 vessel brewhouse: mash tun, lauter tank, brew kettle&whirlpool with 2000L hot water tank.

Another brewhouse: mash tun&lauter tank, brew kettle&whirlpool with 2000L hot water tank.

* Good abrasion resistance material

Inner-Jacket(SUS304)thickness: 3.0mm
External-Jacket thickness: 2.0mm
Seal head thickness: 3.0mm
* High quality insulation effect
Polyurethane thickness: 80mm
* Beautiful weld and polish technology
All argon gas protection welding. Polishing precision up to Ra0.6µm.
* Powerful technology supporting
Providing drawing of every tank and drawing the layout of the whole project according with
customer's workshop
* World's top brands' electronic components
For example, we use Siemens PLC and touch screen, Schneider button of circuit breaker, Airtac electromagnetic valves and other pneumatic parts, etc.
* Good aftersales service
Providing abroad installation and training and providing 1 year spare parts in free of charges

Fermenter:

1.Total volume:2660L(25% free space), Effective volume:2000L, dish head and cylinder tank with four legs;

2.Inside surface: SS304, TH:3mm,

Outside surface: SUS304, TH:2mm,

Thermal insulation material: Polyurethane (PU) foam, Insulation thickness: 80MM.

3.Manhole: side manhole on cylinder.

4.Design pressure 3bar, Working pressure: 1.5-2.0bar;

5.Bottom design: 60 degree cone for easy to exist yeast.

6.Cooling method: Dimple cooling jacket, Cooling area:3.6 .

7.Cleaning system: Fixed-round rotary cleaning ball.

8.Control system: PT100, temperature control;

9.Option:Dry hops adding device on the top and Carbination stone.

10.With: CIP arm with spray ball, pressure gauge, Mechanical pressure regulating valve, sanitary sampling valve, breath valve, Ice water solenoid valve, drain valve, etc.

Cooling Unit

-Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing

-Efficiency chillers or refrigerators with fryon to supply cooling energy

-Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger

-All pipes, fitting, insulation materials are included

Controlling Unit

-Electrical controlling cabinet with temperature, on-off controlling for brewhouse

-Electrical controlling cabinet with temperature, on-off controlling for fermenter automatic.

-Temperature controller, thermocouple, solenoid valves etc are included

-PLC with touch screen panel for special request

CIP unit

-Material SS304, Thickness for tank 2mm

-Heating power for Alkali Tank 2KW

-Tank amount 2pcs: Sterilization tank and Alkali liquor tank.

-Half open manhole for easy cleaning and no dead corner.

-Separate control for CIP unit.
