Quick Details
-
Place of Origin:
-
Henan, China, Henan, China
-
Voltage:
-
380V, 380V
-
Power:
-
200kw
-
Dimension(L*W*H):
-
8500*1100*1200mm
-
Weight:
-
2000 KG
-
Machinery Function:
-
potato chips making machine
-
Output product name:
-
Potato chips/Potato Flakes
-
Model Name:
-
DBS-APC100
-
Product name:
-
High temperature frying
-
Function:
-
Frying Food
-
Application:
-
Restaurant Food processing industral
-
Material:
-
Stainless Steel 304
-
After-sales Service:
-
Video technical support
-
Heating type:
-
Electric
-
Other services:
-
Customerised
Quick Details
-
Marketing Type:
-
New Product 2023
-
Warranty of core components:
-
1years
-
Brand Name:
-
DBS
-
Place of Origin:
-
Henan, China, Henan, China
-
Voltage:
-
380V, 380V
-
Power:
-
200kw
-
Dimension(L*W*H):
-
8500*1100*1200mm
-
Weight:
-
2000 KG
-
Machinery Function:
-
potato chips making machine
-
Output product name:
-
Potato chips/Potato Flakes
-
Model Name:
-
DBS-APC100
-
Product name:
-
High temperature frying
-
Function:
-
Frying Food
-
Application:
-
Restaurant Food processing industral
-
Material:
-
Stainless Steel 304
-
After-sales Service:
-
Video technical support
-
Heating type:
-
Electric
-
Other services:
-
Customerised
Products Description
Automatic French Fries/Potato Chips Production Line
This automatic potato chips line
is a perfect line to produce good quality potato chips from washing, peeling, slicing, rinsing, blanching, de-watering, frying, de-oiling, seasoning to packing automatically.
We can customized the line with different capacity as your requirement.
Our potato chips machines will enable you to develop a wide variety of potato chips and produce these with a constant quality guarantee.
Production capacity
We can customized the line with different capacity of 100kg/h, 200kg/h and 300kg/h etc.
Production Flow
Potatoes → Elevator Feeding → Washing and Peeling → Selecting → Elevator Feeding → Slicing → Rinsing → Blanching → De-watering (vibration and air blowing) → Frying → De-oiling (vibration and air blowing) → Seasoning → Automatic Weighing and Packaging
Product Details

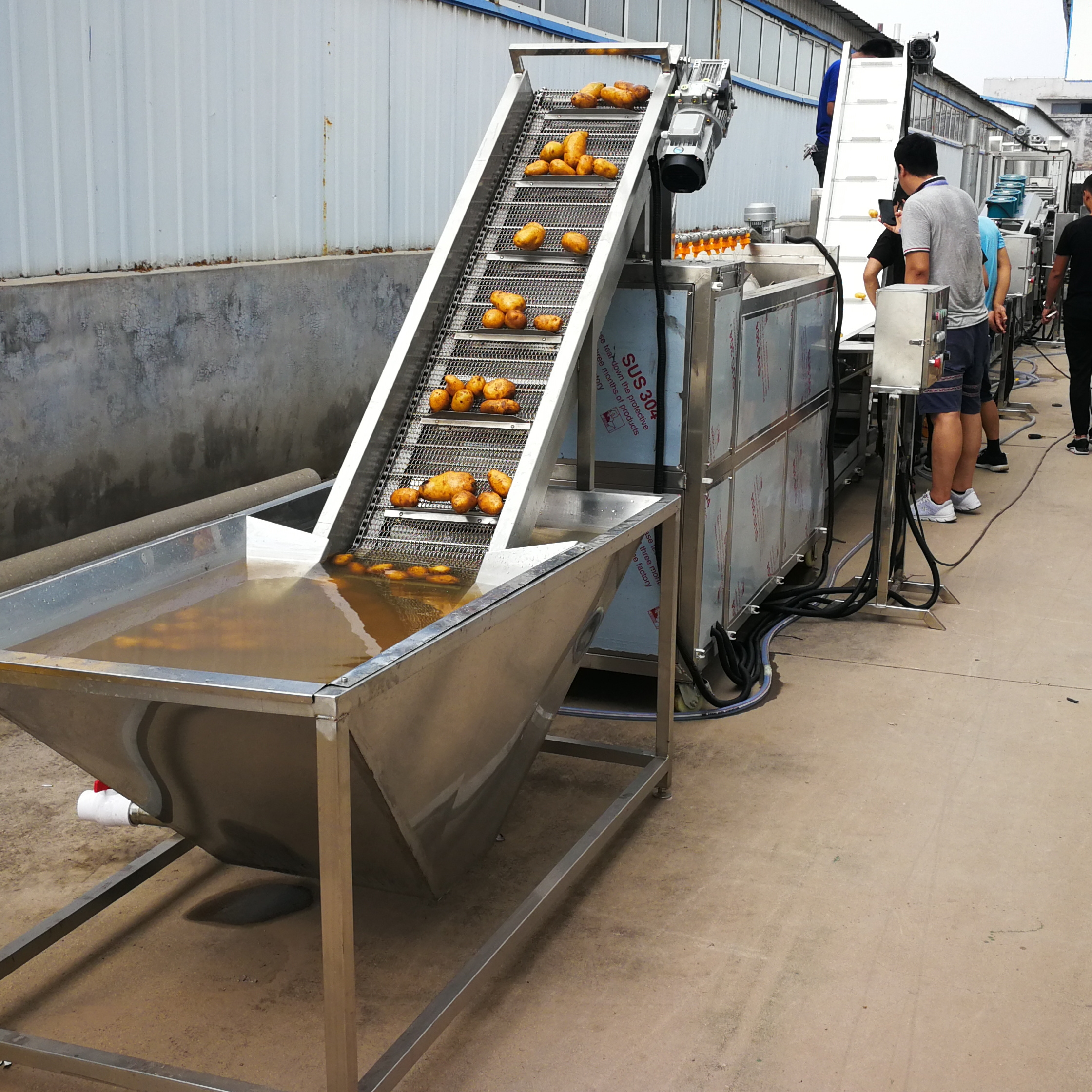

Elevating Conveyor
For elevating and conveying fresh potatoes into the next washing peeling machine
Potato Washing and Peeling Machine
SUS 304 stainless steel, high quality nylon rollers, high efficiency and low cost
Sorting Conveyor
For manually disposing the uncleaned places and selecting the defective potato
Potato Cutting Machine
Cut the potatoes into slices, the thickness and size could be adjusted
Air Bubble Rinsing Machine
Through high pressure waterflow and water bubbles to wash off the potato starch
Blanching Machine
Through 60-95 degree hot water blanching to remove starch and protect the color
Vibrating Dewatering/Deoiling Machine
This machine can fully remove water on the surface of the potato chips under vibration condition
Air Drying Machine
Through high pressure wind blowing for pre-cooling and removing the excess water in short time
Continuous Frying Machine
Suitable for frying different kinds of snacks and the heating method can be customized
Seasoning Machine
seasoning the chips with different flavors
Product Specification
|
Equipment
|
Power
|
Dimension
|
|
Elevator Feeding Machine
|
0.75KW
|
2600*1000*1600mm
|
|
Potato Peeling Machine
|
3.37KW
|
2800*1000*1400mm
|
|
Selecting Conveyor
|
1.50KW
|
3000*800*950mm
|
|
Elevator Feeding Machine
|
0.75KW
|
2000*1000*1800mm
|
|
Potato Slicing Machine
|
1.50KW
|
800*810*750mm
|
|
Rinsing Machine
|
4.5KW
|
4000*1200*1300mm
|
|
Blanching Machine (Gas Heating)
|
3.70KW
|
4000*1200*2200mm
|
|
Vibration Dewatering Machine
|
0.36KW
|
1800*1000*1100mm
|
|
Air Blowing Dewatering Machine
|
6.00KW
|
4000*1200*1400mm
|
|
Elevator Feeding Machine
|
0.75KW
|
2000*1000*1300mm
|
|
Frying Machine (External Gas Heating)
|
5.94KW
|
6000*1200*2200mm
|
|
Oil Storage Tank
|
1.50KW
|
1200*1200*1800mm
|
|
Oil Adding Tank
|
6.00KW
|
1380*600*1580mm
|
|
Oil Filter
|
1.50KW
|
700*700*1000mm
|
|
Air Blowing De-oiling Machine
|
6.00KW
|
4000*1200*1400mm
|
|
Elevator Feeding Machine
|
0.75KW
|
2000*800*2200mm
|
|
Seasoning Machine
|
1.50KW
|
1500*900*1500mm
|
|
Elevator Feeding Machine
|
0.55KW
|
1500*800*1000mm
|
|
Packing Machine
|
6.00KW
|
4500*3000*3750mm
|
Package & Shipping
We provide perfect packaging so that the product can reach the destination safely
