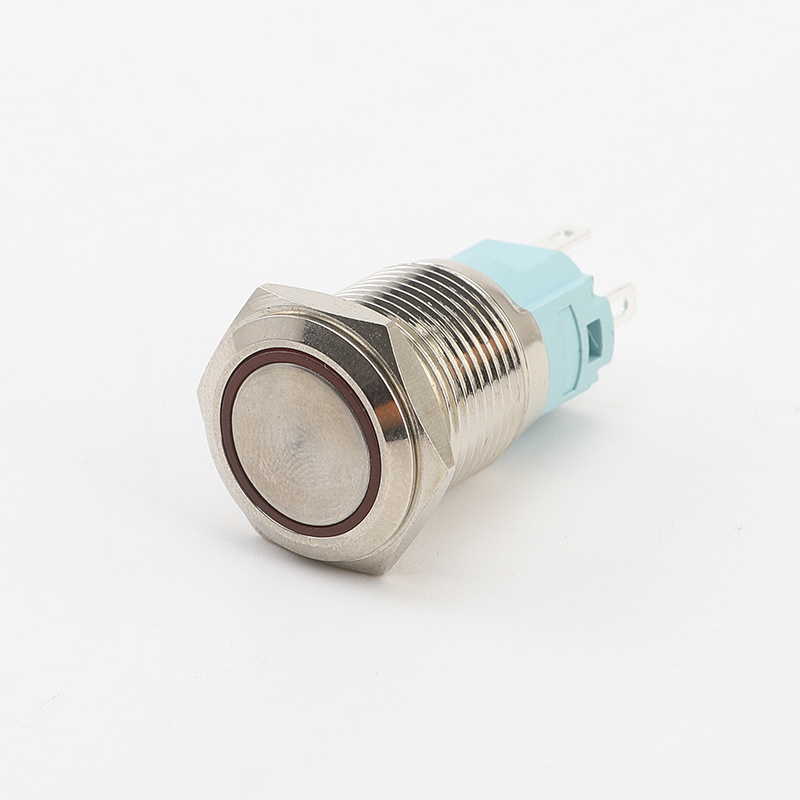

IP65 16mm metal push button switch
Product details
| Operation type | Momentory Latching |
| Material | Stainless Steel/Brass Nickelage |
| Illuminated | YES |
| Color | White/Red/Bule/Green/Yellow |
| Certificate | CE |
| Type | Supplies>>Switches>>Push Button Switches |
| Emitting Type | Dot LED/RING |
| Button color | White/Red/Bule/Green/Yellow |
| Product Keywords | 16mm piezo switch |
Features:
Quality assurance:
IQC, IPQC, PQC, OQC. Inspect for supplied material, production process and final product, including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. All elated raw materials are inspected as Rohs requires.
| Switch Specification | |||
| Rating | 300mA 30VDC | ||
| Contact Resistance | 20mΩ; Max. Initial at 2-4VDC, 100mA | ||
| Insulation Resistance | 100MΩ; Min. | ||
| Dielectric Strength | AC250V(50/60Hz for 1minute) | ||
| Electrically Life | 10,000 Cycles Typical | ||
| Environment temperature | -20°C to 85°C | ||
| Operating Force | Customized | ||
| APPROVALS | |||
| CE | CQC | Rohs | TUV |
Detailed Images
| Materials | |
| Housing | Tin Over Steel |
| Actuator | Acetal |
| Terminal Base | Phenolic |
| Sping | Spring Steel |
| Terminals | Silver Over Brass |
| Contact | Silver Over Phosphor Bronze |
| Waterproof Cap | Available ( If you required) |
|
Application:
They are widely used in TV, VCD, juicer, heater, consumer electronics, household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc. |
|
| Operating force | 2.3±1N |
| Mounting method | PC board |
| Poles | 1 |
| Operation | Latching |
| Terminal type | For PC board |
| Minimum order unit (pcs.) | 4,500 |
| Operating temperature range | -40 °C to +85 °C |
| Rating (max.)/(min.) (Resistive load) | 0.2A 30V DC/50µA 3V DC |
| Electrical performance | |
| Contact resistance (Initial performance/After lifetime) | 20mΩ max./40mΩ max. |
| Insulation resistance | 100MΩ min. 500V DC |
| Voltage proof | 500V AC for 1 minute |
| Mechanical performance | |
| Terminal strength | 5N for 1 minute |
| Actuator strength Operating direction | 30N |
| Resistance to soldering heat | |
| Manual soldering | 350±10°C, 3(+1, 0)s |
| Dip soldering | 260±5°C, 5±1s |
| Durability | |
| Operating life without load |
10,000 cycles 40mΩ max. |
| Operating life with load (Load: as ratings) |
10,000 cycles 40mΩ max. |
| Environmental performance | |
| Cold | -20±2°C for 96h |
| Dry heat | 85 ±2°C for 96h |
| Damp heat | 40 ±2°C 90 to 95%RH for 96h |
