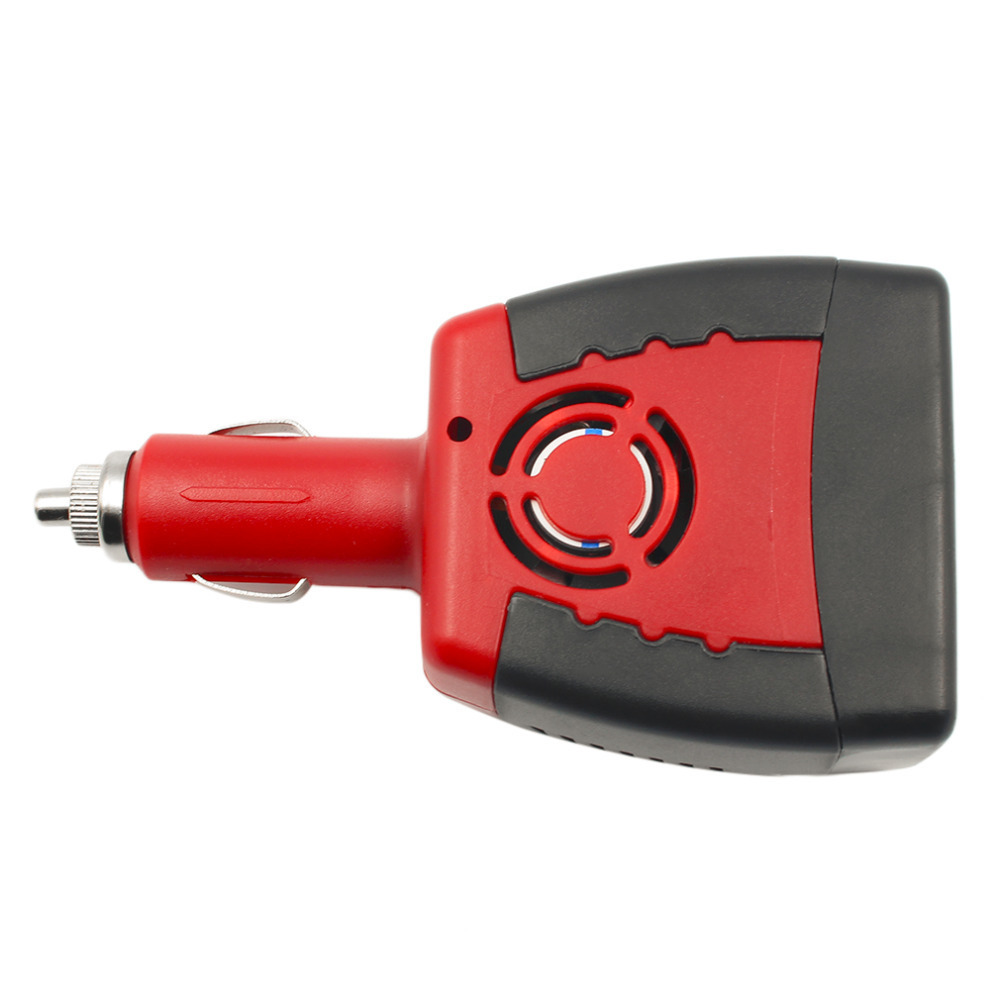

The product can convert DC 12V into AC 220V/AC 110V,
And USB output is DC 5V with 0.5A/2.1A
Rated output power of the product is 150W, which can be widely used in all kinds of electrical equipment, such as mobile phone, TV set fanner, digital equipmnt. It is the best choice for your self-drive, field work, entertainment.
Input Voltage:12V DC 20A MAX
Output waveform: Corrected sine wave
Undervoltage alarm: 12V is 10.4V-11.0V
Low voltage shutdown: 12V is 9.7-10.3
Overvoltage shutdown: 12V is 14.5-15.5V
USB output voltage: 5V,0.5A / 5V,2.1A
Conversion efficiency: >85%
No-load current: <0.3A
Operating humidity range: -5% - 50 %
Storage temperature range: 20-70
Cooling method: 150W : intelligent temperature control
Product size: 65*42*120mm
Protective function:
150W: Short circuit protection Overload protection, high voltage protection, low voltage protection, over temperature protection.
