Quick Details
-
Pressure:
-
100T-200T
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HAILIJU
-
Voltage:
-
220V/380V
-
Weight (KG):
-
8000 KG
-
Power (kW):
-
5.5
-
Dimension(L*W*H):
-
1300*2500
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Size(feet):
-
4*8
-
Max service opening:
-
80-120mm
-
Application:
-
Wood Process
-
Product name:
-
OEM/ODM particle board hot press machine for plywood
-
Keywords:
-
New Condition Automatic Grade wood oil hot press machine
-
Certificate:
-
CE
Quick Details
-
Max.Pressure(T):
-
120
-
Working Table Size(mm):
-
1300×2500
-
Type:
-
HOT PRESS, Hot Pressing
-
Pressure:
-
100T-200T
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HAILIJU
-
Voltage:
-
220V/380V
-
Weight (KG):
-
8000 KG
-
Power (kW):
-
5.5
-
Dimension(L*W*H):
-
1300*2500
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Size(feet):
-
4*8
-
Max service opening:
-
80-120mm
-
Application:
-
Wood Process
-
Product name:
-
OEM/ODM particle board hot press machine for plywood
-
Keywords:
-
New Condition Automatic Grade wood oil hot press machine
-
Certificate:
-
CE

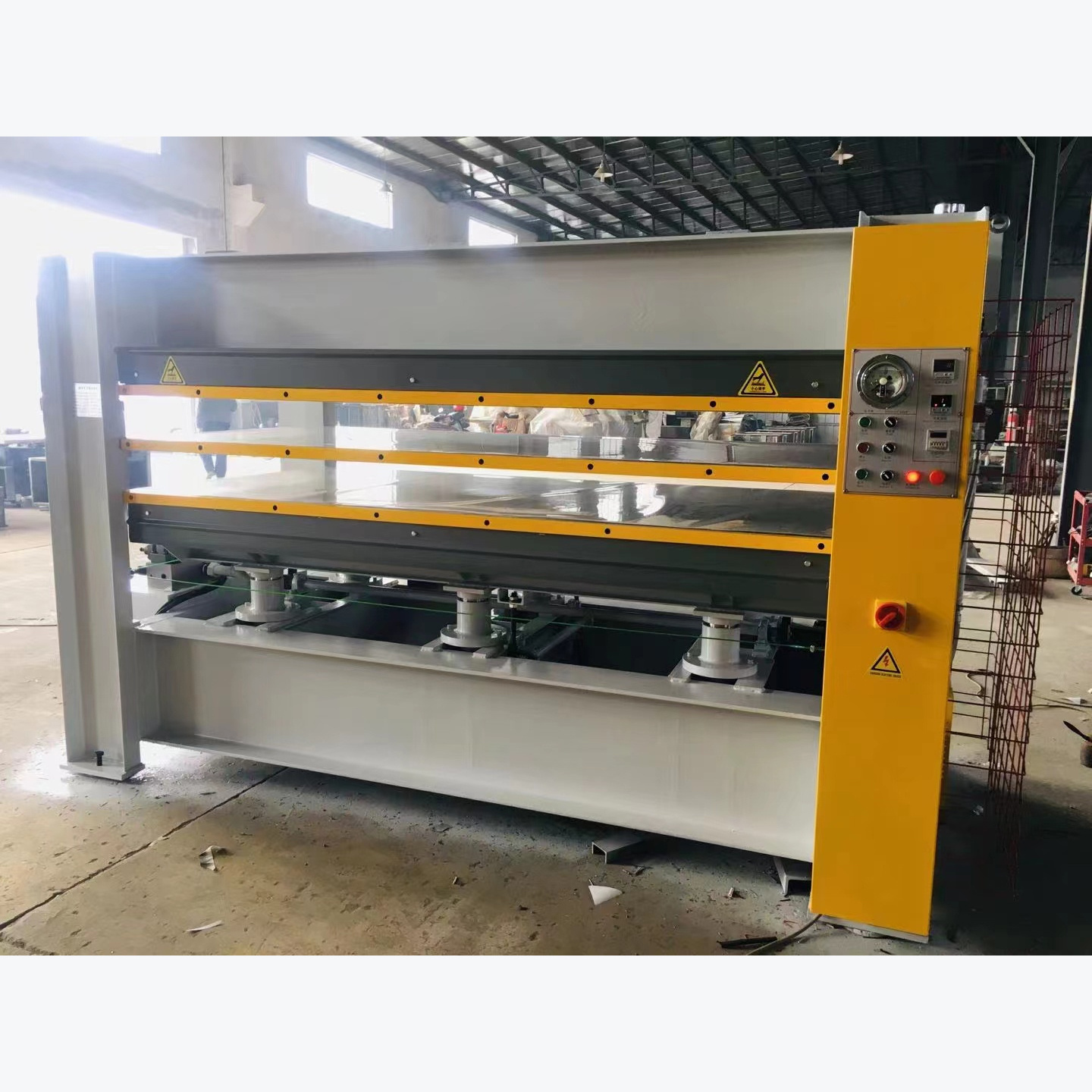

Hot press
Product parameters
|
Product name
|
Three layer hot press
|
|
Nominal total pressure
|
1600Kn
|
|
Quantity and specification of hot plate
|
2 block /2500*1300*42mm
|
|
Unit surface pressure
|
3.12Kg/cm˚
|
|
Number and diameter of oil cylinders
|
8 branch/100mm
|
|
Closing speed
|
40mm/s
|
|
Heating mode and medium
|
Electrothermal medium circulation
|
|
Pressing plate opening mode
|
Electric
|
|
Hot plate spacing
|
100mm
|
Product details
01.Control panel
Push button operation panel,simple operation,equipped with time,temperature control meter,time monitoring machine,one button pneumatic operation,equipped with emergency stop button switch,high safety performance.
02.Hydraulic system
The new integrated hydraulic system is adopted,the accumulator control system is added,and the zero configuration pressure sensor is used to control the use pressure,large capacity oil tank and new direct connected liquid filling device are configured up and down,the forced air cooling system is configured to effectively reduce the working temperature of the hydraulic system.
03.Refined steel cylinder
cylinder,which will not lubricate for a long time,and the quality is guaranteed.
04.Hot pressed panel
The laminate made of high hardness materials is as firm as a rock and can withstand greater pressure and be more stable.
05.All copper motor
The machine adopts high-power all copper core motor,which is safe to use and has a longer service life.
06.Electrical system
All machine electrical appliances adopt high-quality electrical components,and the line layout is reasonable and regular.
07.Heat conducting pipe
The heat conduction pipe has large heat and rapid heat conduction.
08.Safety isolation net
The safety isolation net can protect the electrical safety of the machine and prevent the operator from touching by mistake.
09.Rugged fuselage
The main frame adopts excellent channel steel,and the arcs on both sides are processed by NC boring and milling.After long-time vibration aging treatment,the stress distribution is more uniform and the service life of the frame is longer.
Product packaging
