Quick Details
-
Brand Name:
-
WNK
-
Model Number:
-
AMR15-20
-
MOQ:
-
5
-
Type Of AMR water meter:
-
Wet type/Multi jet velocity
-
Norminal Carliber:
-
DN15,DN20,DN25(1/2",3/4",1")
-
Class Of Water Meter:
-
Class B (or) Class C
-
Water Temperature Resistance:
-
0℃ to (+50℃)
-
Counter Unit (or)recoder Unit Display:
-
365°X5 digit
-
Material:
-
Brass /Iron
-
Product Name:
-
Water Meter Sensor/AMR Water Meter
-
Pressure Range:
-
3.6V
Quick Details
-
Warranty:
-
1 YEAR
-
Type:
-
Prepaid water meters
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
WNK
-
Model Number:
-
AMR15-20
-
MOQ:
-
5
-
Type Of AMR water meter:
-
Wet type/Multi jet velocity
-
Norminal Carliber:
-
DN15,DN20,DN25(1/2",3/4",1")
-
Class Of Water Meter:
-
Class B (or) Class C
-
Water Temperature Resistance:
-
0℃ to (+50℃)
-
Counter Unit (or)recoder Unit Display:
-
365°X5 digit
-
Material:
-
Brass /Iron
-
Product Name:
-
Water Meter Sensor/AMR Water Meter
-
Pressure Range:
-
3.6V

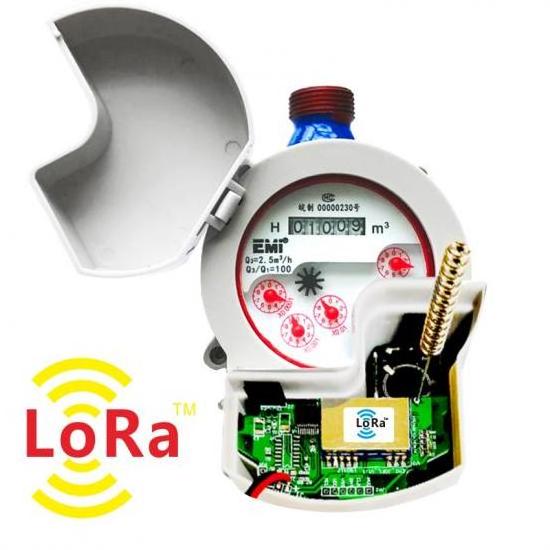

Wireless Multi-Jet Wet Dial AMR Water Meter For Cold Water
Performance characteristics
Electro-mechanical Separate Technique
Wet dial register construction
Specially protected encapsulated digit rollers
High-quality mineral glass inspection window
Optional: UV-resistant plastic
With Internal strainer, inlet strainer
No magnetic effect
Mechanical display (Max: 99999), NOT digital display
Hand-held device could be a option
The battery life span over 6 years at data transmission once a day
Display range from 0.1 L to 99999 cubic meters
No battery consumption at daily work except for meter reading moment
Transparent transmission, high real-time performance
Transmission rate adaptive, no manual setting required
Strong driving capability, drive current up to 500mA
Automatic cut power , with isolation, wide voltage
With transceiver indicator and overload alarm indicator
Technology advantage:
Decimal code disc decoding technology, there is no carry between 0 and 9.
The fully sealed structure is protected from the external humid environment
and has a waterproof performance of Ip68.
Split design, installation and maintenance are simpler and convenient.
It is only necessary to replace the water meter base table after the water meter verification period.
AMR transmission method Special for ROWL
Radio Frequency free private protocol (Lora frequency channel should beconfirmed as to different countries)
Signal coverage can be 1000m ,the farthest distance may be 3000m withhelp of repeaters
AMR transmission method Special for ROWM
Mbus protocol ,wired layout
Accessories
2pcs couplings, 2pcs coupling nuts and 2pcs washers
Applications
For the consumption measuring of cold potable water up to 40° C
Water meter for horizontal and vertical installation
Operating pressure 1 Mpa
Meter Module device features
Frequency:According to buyer's country
Lithium battery powered:3.6 V
Communication range:1000 -1500m
Static current:uA<10
Transmit Power:50mW
Battery life: 6-8 years (read data once da
