QT5-15 Engine Automatic Hydraulic Interlocking Brick Making Machinery/cement Hollow Concrete Block Making Machine Crushed Stone
QT5-15 Engine Automatic Hydraulic Interlocking Brick Making Machinery/cement Hollow Concrete Block Making Machine Crushed Stone
QT5-15 Engine Automatic Hydraulic Interlocking Brick Making Machinery/cement Hollow Concrete Block Making Machine Crushed Stone
QT5-15 Engine Automatic Hydraulic Interlocking Brick Making Machinery/cement Hollow Concrete Block Making Machine Crushed Stone
QT5-15 Engine Automatic Hydraulic Interlocking Brick Making Machinery/cement Hollow Concrete Block Making Machine Crushed Stone
QT5-15 Engine Automatic Hydraulic Interlocking Brick Making Machinery/cement Hollow Concrete Block Making Machine Crushed Stone
QT5-15 Engine Automatic Hydraulic Interlocking Brick Making Machinery/cement Hollow Concrete Block Making Machine Crushed Stone
QT5-15 Engine Automatic Hydraulic Interlocking Brick Making Machinery/cement Hollow Concrete Block Making Machine Crushed Stone

QT5-15 Engine Automatic Hydraulic Interlocking Brick Making Machinery/cement Hollow Concrete Block Making Machine Crushed Stone

FOB Reference Price: Get Latest Price
≥1 Sets
US $18500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brick size:
400*100*200 mm, 400*150*200 mm, Other, 400*200*200 mm
Place of Origin:
Shandong, China
Brand Name:
AIWEI
Voltage:
380 V/220 V/415 V, 3PHASES
Dimension(L*W*H):
3200 MM*2300 MM*2650 MM
Marketing Type:
New Product 2024
Weight (KG):
5000 kg
Block Type:
Hollow Concrete Brick Machine
Product Name:
Automatic Concrete Making Machine
Advantage:
High Efficiency
Color:
Blue Green Orange Gray
Capacity:
9600 PS
Raw material:
Fly Ash Cement Sand Concrete
After Warranty Service:
24 Hours Online
Model:
customer need
Applied Products:
customer need

Quick Details

Type:
Hollow Block Making Machine, Paving Block Making Machine, Curbstone Block Machine
Brick Raw Material:
Cement
Production Capacity (Pieces/8 hours):
Other
Brick size:
400*100*200 mm, 400*150*200 mm, Other, 400*200*200 mm
Place of Origin:
Shandong, China
Brand Name:
AIWEI
Voltage:
380 V/220 V/415 V, 3PHASES
Dimension(L*W*H):
3200 MM*2300 MM*2650 MM
Marketing Type:
New Product 2024
Weight (KG):
5000 kg
Block Type:
Hollow Concrete Brick Machine
Product Name:
Automatic Concrete Making Machine
Advantage:
High Efficiency
Color:
Blue Green Orange Gray
Capacity:
9600 PS
Raw material:
Fly Ash Cement Sand Concrete
After Warranty Service:
24 Hours Online
Model:
customer need
Applied Products:
customer need
Product Overview

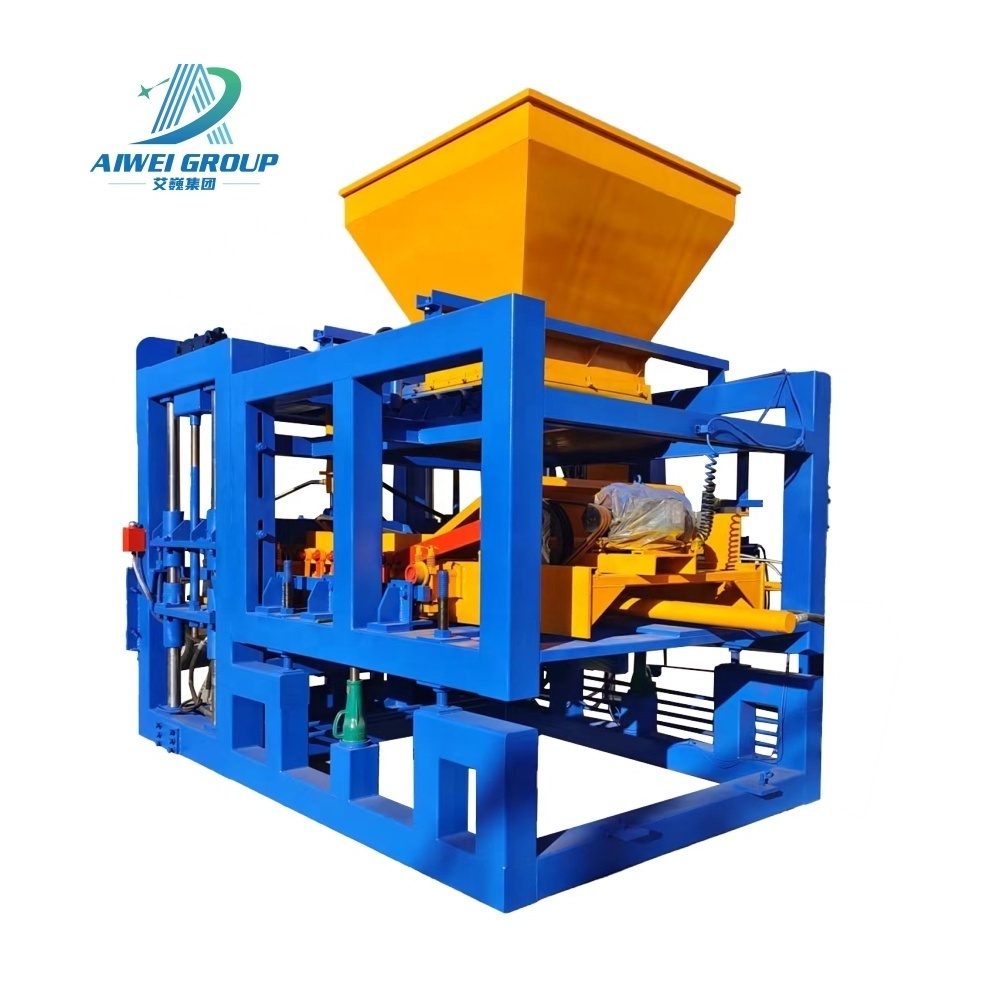

QT 5-15 Automatic block making machine Line

The production line of automatic hydraulic brick-making machine is made up of conveying bin, mixer, JS double horizontal shaft mixer, conveyor, main machine, stacking machine, upper plate machine, etc. A multi-purpose machine, with a secondary distribution device can produce a variety of specifications of road bricks, grass brick, brick slope protection, etc.
FEATURES AT A GLANCE




QT 5-15 Automatic block making machine Line
Right view
Left view
Front view
Teahnique Details
Automatic push-up tray


Automatic push-up tray. Push the pallet to the front mould position automatically and then return to the original position. Safe and reliable, save hiring, save time.

Racking materials equipment

The material raking device can put the material mixture laid down by the hopper even ly into the brick pressing abra sives.

Equipped with shock-resista nt rubber, completely block the pressure head vibration press ure on the main body of the m achine damage.
Siemens PLC Controller
Automatic control of the prod uction line can be realized.

Siemens Schneider contactor


Pressure Indicator.
Show the oil pressure chan ge during the working proce ss of the machine.
The main component of a production line
HOST MACHINE
Technical Parameters
Oversize
3200 MM*2300 MM*2650 MM
Weight
5000KG
Pallet Size
1100 mm*580 mm*20 mm
Total power
37.2KW
Volt
380 v/220 v/415 v, 3 phases
Stacker

The cement brick stacker is main ly composed of main engine, lifting arm and jig, which is easy to opera te. It can clip one hollow brick at a time. Hollow brick a plate three, a plate 4, a plate 5, a plate 6 can be a clip up the stack. Standard brick it
can clip a plate, a plate 21, a plate 26, a plate 32, a plate 34 a plate 39, a plate 45 and so on.
The cement brick stacker is oper ated automatically by the controller, which makes it easy for brick factor ies to stacker bricks.
Many cement brick factories use this equipment.
Cement silo

The silo, also known as the cem ent silo, is generally used in the sto rage of bulk cement in concrete mix ing stations, suitable for storage of various bulk building materials such as cement, fly ash, etc. , it can show the position and quantity of the mat
erial, and the hole-breaking device can release the concretion caused by the material deposit for too long.
The silo and the screw pump can be used together to transport the material to various locations. The silo body is easy to install, safe and reliable is an ideal bulk storage tank for various mixing stations.
JS ready-mix concrete

JS series ready-mix concrete are double horizontal shaft forced mixe r. This mixer has the double advant ages of single machine working ind ependently and simple concrete mixing station with PLD series Batc hing Machine.
It can also be used for mixing plant to provide suppor ting host, suitable for all kinds of large, medi um and small prefabric ated factory and highway, bridge, water, dock and other industrial and civil const ruction projects, it is a kind of high efficiency machine which can mix dry and hard concr ete, plastic conc rete, flowing conc rete, light aggre gate concrete and various mortars.


Conveyor



Our company mainly produces 4-meter conveyor, 6-meter conveyo r,6-meter high-speed conveyor, 7-me ter conveyor, 7-meter high-speed conveyor, 8-meter conveyor and 8-meter high-speed conveyor. Other models can be customized.
On the machine

The advantage of the automatic plate loadin g machine is that it does not need the special equipme nt foundation, can be placed on the hardened flat ground and can be used wit h the plate-feeding mach ine, which reduces the labor int ensity of the operating workers, improves the working efficiency and saves labor, the whole equipment has the characteristics of simple and reasonable structure, flexible operation, reliable performance and wide range of application.
Brick capacity
