Quick Details
-
Brand Name:
-
AITE
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
3250*700*2100mm
-
Power (kW):
-
30
-
Weight (T):
-
2.5
-
Product name:
-
Single shaft shredder
-
Application:
-
Recycle Waste Plastic
-
Type:
-
Plastic Single Shaft Shredder Shredder Parts
-
Function:
-
Crusher Plastic Bottle
-
Advantage:
-
Easy Operation High Efficiency
-
Certification:
-
CE ISO TUV
-
Key words:
-
Shredder Hard Plastic Straw
-
Suitable material:
-
rubber wood Plastic Cloth Fabric Feather Paper
-
Final product:
-
Small Scraps
-
Usage:
-
Waste Raw Material Shredding
Quick Details
-
Max.Production Capacity (kg/h):
-
17000
-
Place of Origin:
-
China
-
Production Capacity (kg/h):
-
200 - 8000 kg/h
-
Brand Name:
-
AITE
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
3250*700*2100mm
-
Power (kW):
-
30
-
Weight (T):
-
2.5
-
Product name:
-
Single shaft shredder
-
Application:
-
Recycle Waste Plastic
-
Type:
-
Plastic Single Shaft Shredder Shredder Parts
-
Function:
-
Crusher Plastic Bottle
-
Advantage:
-
Easy Operation High Efficiency
-
Certification:
-
CE ISO TUV
-
Key words:
-
Shredder Hard Plastic Straw
-
Suitable material:
-
rubber wood Plastic Cloth Fabric Feather Paper
-
Final product:
-
Small Scraps
-
Usage:
-
Waste Raw Material Shredding
Product Overview

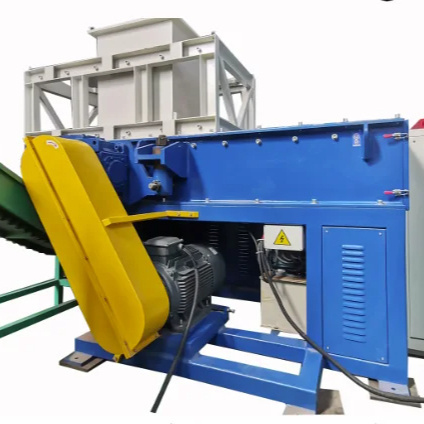

Single Shaft Shredder For Metal/Plastic/Carboard/Drum/ Wood
The single axis shredder can meet the waste recycling requirements of various industries. It is suitable for recycling plastic,paper, wood, fiber, rubber, domestic waste, etc. there are many kinds of recyclable materials. Suitable for recycling all kinds of large solid materials, difficult to handle materials, plastic containers and plastic barrels, plastic pads. The discharge size can be as small as 20 mm according to different requirements. And can provide all kinds of hopper according to customer's demand. The
equipment is low speed, low noise and more energy saving
equipment is low speed, low noise and more energy saving
working principle
The material enters the case from the feed hopper, the pusher pushes the material to the rotary knife roller under the push of the hydraulic cylinder, the rotary moving knife and the fixed knife break the material, the broken material falls through the screen, and then it is transported to the next process or collected and packed through the auxiliary conveying equipment.
Rotor and Screen
The blade of single axis shredder is made of DC53 material, with high wear resistance and durability;Tungsten carbide can be used on the surface of the spindle of the cutter roll of the single axis shredder, which has high wear resistance and durability, and can be repeatedly repaired; the cutter can be used on both sides, and the size of the mesh hole can be adjusted according to the discharge requirements of the user
Bearing block
The special split design ensures that the dust in the tearing chamber will not enter into the bearing. The cylindrical roller self-aligning bearing produced in Luoyang is adopted to ensure that the equipment can adjust the center independently to reduce the noise when tearing materials.
Hardened reducer
The gears of the hard gear reducer are made
of high-strength low-carbon alloy steel through
carburizing and quenching. The hardness of
the gear surface is high. The gears are all CNC
gear grinding technology, with high precision,
good contact, high transmission efficiency,
stable operation and low noise
Shock absorber
High efficiency motor star delta start, equipped with hydraulic clutch;
Type III reducer - directly connected with knife stick;Reducer damping - protects the power system from damage caused by reduced
pressure.
Control Cabinet
The designer has many years of experience in the production and field use of the electric control cabinet. In the design of the
electric control cabinet, all possible situations have been taken into account to ensure the advanced and perfect design idea of
the system Siemens relay and indicator light imported from Japan are used to ensure stable, safe and reliable operation of the
system
electric control cabinet, all possible situations have been taken into account to ensure the advanced and perfect design idea of
the system Siemens relay and indicator light imported from Japan are used to ensure stable, safe and reliable operation of the
system
What types of materials are processed?
It can be used to tear up solid materials such as plastic, rubber, fiber, paper, wood, electrical parts, cables, etc. which are hard to break, such as: nozzle material, rubber head, PET bottle, cardboard, circuit board, wood, plastic barrel, etc. You can select the corresponding model according to the material size and handling capacity. If users need to break especially hard
materials, such as nylon, ABS, PC and other high-strength engineering plastics, they need to explain the situation.
It can be used to tear up solid materials such as plastic, rubber, fiber, paper, wood, electrical parts, cables, etc. which are hard to break, such as: nozzle material, rubber head, PET bottle, cardboard, circuit board, wood, plastic barrel, etc. You can select the corresponding model according to the material size and handling capacity. If users need to break especially hard
materials, such as nylon, ABS, PC and other high-strength engineering plastics, they need to explain the situation.
Products Description
1. The blade is made of cold working die steel, which has good strength, high toughness and high cutting performance. The blade has four cutting edges, which can rotate 90 degrees after wear and continue to use.
2. External bearing design, waterproof and dustproof, prolong the service life of bearings.
3. Hydraulic forced feeding, stable and adjustable speed, large and uniform propulsion.
4. Hard gear reducer, high transmission efficiency, strong load-bearing capacity, low noise
2. External bearing design, waterproof and dustproof, prolong the service life of bearings.
3. Hydraulic forced feeding, stable and adjustable speed, large and uniform propulsion.
4. Hard gear reducer, high transmission efficiency, strong load-bearing capacity, low noise
PRODUCT SPECIFICATIONS
|
more information please contact us, we can custom the product on your request
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
