Quick Details
-
Model Number:
-
PE100
-
Specification:
-
Top quality hdpe pipe and fitting for water sewer
-
Length:
-
5.8m/11.9m
-
Thickness:
-
7.7mm-117.6mm
-
Standard:
-
ISO 4427,GB/T 13663,EN12201,AS/NZS,DIN,GOST
-
Color:
-
Black
-
Product name:
-
Wholesale Agricultural Drip Watering Hose Irrigation 4/7 PVC Drip Irri
-
MOQ:
-
1meter
-
OEM:
-
Accetped
-
Logo:
-
Customized Logo Acceptable
-
Delivery Time:
-
7-15 Days
-
working pressure3:
-
0.4MPa 0.5MPa 0.6MPa 0.8MPa 1.0MPa 1.25MPa 1.6MPa 2.0MPa 2.5MPa
-
Working pressure2:
-
SDR13.6 SDR11 SDR9 SDR7.4
-
Working pressure:
-
SDR41 SDR33 SDR26 SDR21 SDR17
-
Raw material:
-
High Density PE
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZhuoShi
-
Model Number:
-
PE100
-
Specification:
-
Top quality hdpe pipe and fitting for water sewer
-
Length:
-
5.8m/11.9m
-
Thickness:
-
7.7mm-117.6mm
-
Standard:
-
ISO 4427,GB/T 13663,EN12201,AS/NZS,DIN,GOST
-
Color:
-
Black
-
Product name:
-
Wholesale Agricultural Drip Watering Hose Irrigation 4/7 PVC Drip Irri
-
MOQ:
-
1meter
-
OEM:
-
Accetped
-
Logo:
-
Customized Logo Acceptable
-
Delivery Time:
-
7-15 Days
-
working pressure3:
-
0.4MPa 0.5MPa 0.6MPa 0.8MPa 1.0MPa 1.25MPa 1.6MPa 2.0MPa 2.5MPa
-
Working pressure2:
-
SDR13.6 SDR11 SDR9 SDR7.4
-
Working pressure:
-
SDR41 SDR33 SDR26 SDR21 SDR17
-
Raw material:
-
High Density PE
Products Description

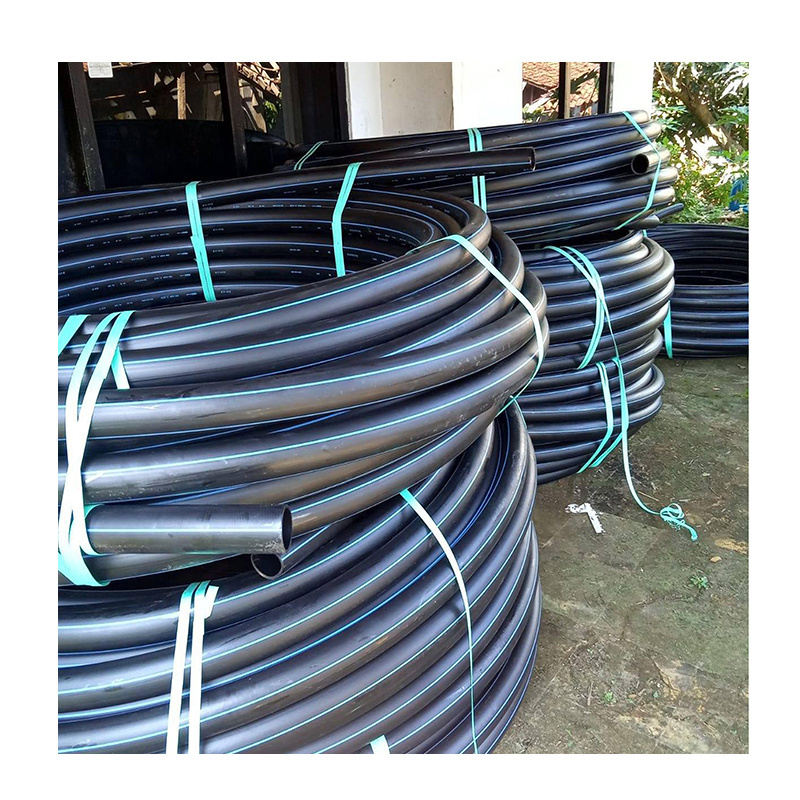

HDPE Pipe
PE pipe inner wall is smooth with features of low friction resistance and energy saving and does not change with the use of time.Its pressure loss is about 30% smaller than steel pipe, therefore,smaller pe pipe is a better way than steel pipe.PE pipe has good hygienic performance with no additives, so it is impossible to pollute the drinking water.Polyethylene material level is 0 (the lowest level) in ISO standard and it is moldy material. Compared with other commonly used plastic materials,mildew resistance of polyethylene is much higher resulting a long term use without scaling.
Features:
1. High toughness and good seismic performance;
2. The connection is reliable;
3. Low density, light weight, easy to handle and install
4. Can resist a variety of chemical media corrosion;
5. Excellent hydraulic performance, the wear resistance coefficient is only 0.009;
6. Long service life, up to 50 years;
7. Good hygiene and environmental performance;
8. Better resistance to slow crack growth (SCG) and rapid crack propagation (RCP).
Applications:
1. Urban potable water pipeline network system.
2. Replaceable cement pipe, iron pipe and steel pipes.
3. Fire fighting pipeline.
4. Landscaping water supply network.
5. Sewage discharge pipes.
6. Ore and mud transfers.
7. Agricultural irrigation pipe.
Specification:
|
PE100
|
0.4MPa
|
0.5MPa
|
0.6MPa
|
0.8MPa
|
1.0MPa
|
1.25MPa
|
1.6MPa
|
2.0MPa
|
2.5MPa
|
||||||||
|
Outside Diameter
|
PN4
|
PN5
|
PN6
|
PN8
|
PN10
|
PN12.5
|
PN16
|
PN20
|
PN25
|
||||||||
|
|
SDR41
|
SDR33
|
SDR26
|
SDR21
|
SDR17
|
SDR13.6
|
SDR11
|
SDR9
|
SDR7.4
|
||||||||
|
|
Wall Thickness (en)
|
|
|
|
|
|
|
|
|
||||||||
|
20
|
-
|
-
|
-
|
-
|
-
|
-
|
2.0
|
2.3
|
3.0
|
||||||||
|
25
|
-
|
-
|
-
|
-
|
-
|
2.0
|
2.3
|
3.0
|
3.5
|
||||||||
|
32
|
-
|
-
|
-
|
-
|
2.0
|
2.4
|
3.0
|
3.6
|
4.4
|
||||||||
|
40
|
-
|
-
|
-
|
2.0
|
2.4
|
3.0
|
3.7
|
4.5
|
5.5
|
||||||||
|
50
|
-
|
-
|
2.0
|
2.4
|
3.0
|
3.7
|
4.6
|
5.6
|
6.9
|
||||||||
|
63
|
-
|
-
|
2.5
|
3.0
|
3.8
|
4.7
|
5.8
|
7.1
|
8.6
|
||||||||
|
75
|
-
|
-
|
2.9
|
3.6
|
4.5
|
5.6
|
6.8
|
8.4
|
10.3
|
||||||||
|
90
|
-
|
-
|
3.5
|
4.3
|
5.4
|
6.7
|
8.2
|
10.1
|
12.3
|
||||||||
|
110
|
-
|
-
|
4.2
|
5.3
|
6.6
|
8.1
|
10.0
|
12.3
|
15.1
|
||||||||
|
125
|
-
|
-
|
4.8
|
6.0
|
7.4
|
9.2
|
11.4
|
14.0
|
17.1
|
||||||||
|
140
|
-
|
-
|
5.4
|
6.7
|
8.3
|
10.3
|
12.7
|
15.7
|
19.2
|
||||||||
|
160
|
-
|
-
|
6.2
|
7.7
|
9.5
|
11.8
|
14.6
|
17.9
|
21.9
|
||||||||
|
180
|
-
|
-
|
6.9
|
8.6
|
10.7
|
13.3
|
16.4
|
20.1
|
24.6
|
||||||||
|
200
|
-
|
-
|
7.7
|
9.6
|
11.9
|
14.7
|
18.2
|
22.4
|
27.4
|
||||||||
|
225
|
-
|
-
|
8.6
|
10.8
|
13.4
|
16.6
|
20.5
|
25.2
|
30.8
|
||||||||
|
250
|
-
|
-
|
9.6
|
11.9
|
14.8
|
18.4
|
22.7
|
27.9
|
34.2
|
||||||||
|
280
|
-
|
-
|
10.7
|
13.4
|
16.6
|
20.6
|
25.4
|
31.3
|
38.3
|
||||||||
|
315
|
7.7
|
9.7
|
12.1
|
15.0
|
18.7
|
23.2
|
28.6
|
35.2
|
43.1
|
||||||||
|
355
|
8.7
|
10.9
|
13.6
|
16.9
|
21.1
|
26.1
|
32.2
|
39.7
|
48.5
|
||||||||
|
400
|
9.8
|
12.3
|
15.3
|
19.1
|
23.7
|
29.4
|
36.3
|
44.7
|
54.7
|
||||||||
|
450
|
11.0
|
13.8
|
17.2
|
21.5
|
26.7
|
33.1
|
40.9
|
50.3
|
61.5
|
||||||||
|
500
|
12.3
|
15.3
|
19.1
|
23.9
|
29.7
|
36.8
|
45.4
|
55.8
|
-
|
||||||||
|
560
|
13.7
|
17.2
|
21.4
|
26.7
|
33.2
|
41.2
|
50.8
|
62.5
|
-
|
||||||||
|
630
|
15.4
|
19.3
|
24.1
|
30.0
|
37.4
|
46.3
|
57.2
|
70.3
|
-
|
||||||||
|
710
|
17.4
|
21.8
|
27.2
|
33.9
|
42.1
|
52.2
|
64.5
|
79.3
|
-
|
||||||||
|
800
|
19.6
|
24.5
|
30.6
|
38.1
|
47.4
|
58.8
|
72.6
|
89.3
|
-
|
||||||||
|
900
|
22.0
|
27.6
|
34.4
|
42.9
|
53.3
|
66.2
|
81.7
|
-
|
-
|
||||||||
|
1000
|
24.5
|
30.6
|
38.2
|
47.7
|
59.3
|
72.5
|
90.2
|
-
|
-
|
||||||||
|
1200
|
29.4
|
36.7
|
45.9
|
57.2
|
67.9
|
88.2
|
-
|
-
|
-
|
||||||||
|
1400
|
34.3
|
42.9
|
53.5
|
66.7
|
82.4
|
102.9
|
-
|
-
|
-
|
||||||||
|
1600
|
39.2
|
49.0
|
61.2
|
76.2
|
94.1
|
117.6
|
-
|
-
|
-
|
||||||||
Physical properties index:
|
No.
|
Item
|
|
Requirements
|
|||
|
1
|
Percentage of breaking-elongation,%
|
|
≥350
|
|||
|
2
|
Longitudinal reversion(110℃),%
|
|
≤3
|
|||
|
3
|
Oxidation induction time (200℃)min
|
|
≥20
|
|||
|
4
|
Weather resistance 1. (After the pipe has accepted the aging energy which equal to or more than 3.5GJ/m2)
|
80℃ static hydraulic strength (165h)
|
No break, no leakage.
|
|||
|
|
|
Percentage of breaking-elongation,%
|
≥350
|
|||
|
|
|
Oxidation induction time (200℃)min
|
≥10
|
|||
|
1. Only suitable for pipe in blue color.
|
|
|
|
|||
|
Application field: Drinking water supply pipe for urban and rural area, liquid transmission pipe in chemical, chemical fiber,
food, forestry and metallurgy industry, waste water drainage pipe, mining slurry transmission pipe for mining field. |
|
|
|
|||
Technical data sheet:
|
No
|
Items
|
HDPE Pipe
|
|
1
|
Molecular
|
≥300 000
|
|
2
|
Density
|
0.960 g/cm3
|
|
3
|
Tensile breaking strength
|
≥28 Mpa
|
|
4
|
Longitudinal contraction rate of return
|
≤3%
|
|
5
|
Breaking elongation
|
≥500%
|
|
6
|
Resistant to corrosion
|
good
|
|
7
|
Tensile strength
|
≥28Mpa
|
|
8
|
Static hydraulic strength
|
1)20℃,cycle stress 12.4Mpa,100h,no break,no leakage
|
|
|
|
2)80℃,cycle stress5.5Mpa,165h,no break,no leakage
|
|
|
|
3)80℃,cycle stress5.0Mpa,1000h,no break,no leakage
|
|
9
|
MFR(190℃,5kg,)g/10min
|
≤25%
|
|
10
|
Oxidation induction time (200℃)min
|
≥20
|
