Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
6000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CAMEL CNC
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
7320*2720*2250
-
Power (kW):
-
12
-
Weight (KG):
-
2500
-
Product nam:
-
CA-1360 3D atc auto nesting CNC router high-speed rotary machine
-
XYZTraveling Positioning Accuracy:
-
±0.03/300mm
-
XYZRepositioning Positioning Accuracy:
-
±0.05mm
-
Lathe Bed:
-
Strong lathe bed
-
Gantry:
-
Steel structure gantry design
-
Guide Rail:
-
Taiwan Hiwin Square Rail with XYZ axis
-
XY Z Transmission:
-
Gear rack ,Ball Screw
-
Spindle Motor:
-
9kw HQD Air cooling spindle special for tool changer
-
Typeset Software:
-
ARTCAM(can support any G-code software)
-
Motor:
-
Leadshine Servo Motor
Quick Details
-
Working Table Size(mm):
-
1300*6000
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
6000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.05 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CAMEL CNC
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
7320*2720*2250
-
Power (kW):
-
12
-
Weight (KG):
-
2500
-
Product nam:
-
CA-1360 3D atc auto nesting CNC router high-speed rotary machine
-
XYZTraveling Positioning Accuracy:
-
±0.03/300mm
-
XYZRepositioning Positioning Accuracy:
-
±0.05mm
-
Lathe Bed:
-
Strong lathe bed
-
Gantry:
-
Steel structure gantry design
-
Guide Rail:
-
Taiwan Hiwin Square Rail with XYZ axis
-
XY Z Transmission:
-
Gear rack ,Ball Screw
-
Spindle Motor:
-
9kw HQD Air cooling spindle special for tool changer
-
Typeset Software:
-
ARTCAM(can support any G-code software)
-
Motor:
-
Leadshine Servo Motor

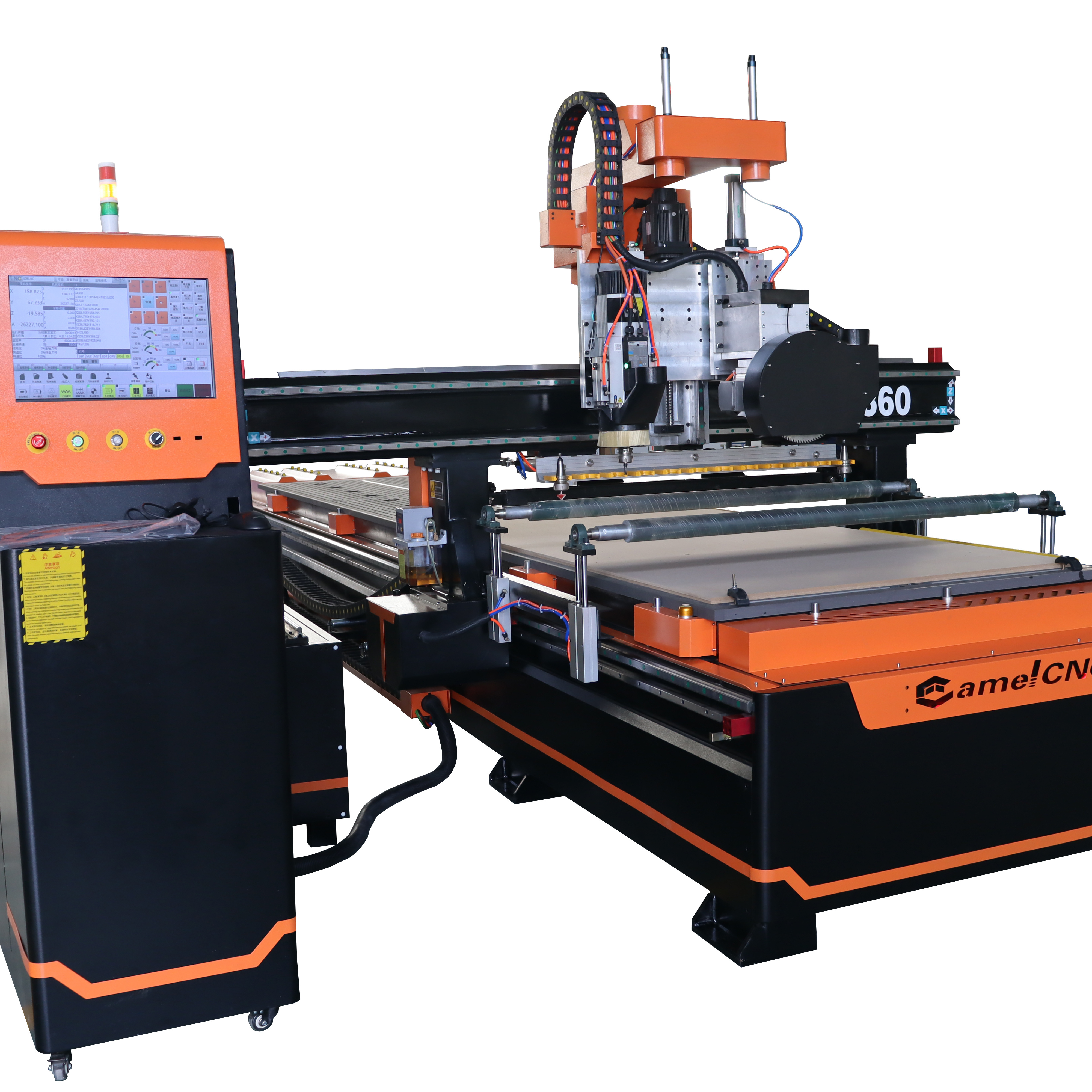

Product Display of ATC CNC Router
Factory price High-speed woodworking machine CA-1360 atc cnc router with 12 tools magazine and saw blade
Specification of ATC CNC Router
* Super quality 9KW Air cooling Auto-tool changer spindle.
* Taiwan Hiwin linear guide railkeep high working precision
* Famous servo motor and driver ensures machine to run with fast speed and low noise.
* With 12pieces auto-tool changer and Autotool sensor.
* Vacuum table and vacuum pump, and 0kw dust collector.
* Taiwan LNC ATCcontrolling system, which can change tools alternatively, tool sensor to compensate the tolerance of tool length.
* High accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of working with fast and high efficiency.
* Taiwan Hiwin linear guide railkeep high working precision
* Famous servo motor and driver ensures machine to run with fast speed and low noise.
* With 12pieces auto-tool changer and Autotool sensor.
* Vacuum table and vacuum pump, and 0kw dust collector.
* Taiwan LNC ATCcontrolling system, which can change tools alternatively, tool sensor to compensate the tolerance of tool length.
* High accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of working with fast and high efficiency.
Application of ATC CNC Router
1. Woodworking Industry: MDF, wood, acrylic, PVC, double-color board, brass, aluminum, marble, crystal.
2. Advertising industry: advertising billboard, sign making, acrylic cutting, graphic mold forming and processing of many kinds of advertising terms.
3. Architectural model industry: metal models of copper, aluminum, iron etc, and non-metal models, such as artificial marble,grave, plastic board, PVC, board etc.
4. Other industry: image engraving, embossing, craft and gift industry
2. Advertising industry: advertising billboard, sign making, acrylic cutting, graphic mold forming and processing of many kinds of advertising terms.
3. Architectural model industry: metal models of copper, aluminum, iron etc, and non-metal models, such as artificial marble,grave, plastic board, PVC, board etc.
4. Other industry: image engraving, embossing, craft and gift industry
Technical Parameter of ATC CNC Router
|
Name
|
Specification
|
|
X,Y,Z Working Area
|
1300X3000X200mm
|
|
Table Size
|
1855X3840mm
|
|
X,Y,Z,Traveling Positioning
Accuracy |
±0.03/300mm
|
|
X,Y,Z,Repositioning Positioning Accuracy
|
±0.05mm
|
|
Lathe Bed
|
Strong lathe bed
|
|
Gantry
|
Steel structure gantry design
|
|
Guide Rail
|
Taiwan Hiwin Square Rail with X,Y,Z axis
|
|
XY Z Transmission
|
Gear rack with X and Y axis
Imported Ball Screw with Z axis |
|
Spindle Motor
|
9kw HQD Air cooling spindle special for tool changer
|
|
Max. Speed
|
0-45000mm/min
|
|
Max. Working Speed
|
0-25000mm/min
|
|
Spindle Speed
|
0-24000RPM
|
|
Drive Mode
|
Servo system
|
|
Working Voltage
|
AC220V/380V, 50/60Hz
|
|
Command
|
G Code, *uoo, *mmg, *plt
|
|
Inverter
|
11KW Fuling inverter
|
|
Control System
|
Taiwan LNC control system
|
|
Typeset Software
|
ARTCAM(can support any G-code software)
|
|
Motor
|
Leadshine Servo Motor
|
|
Driver
|
Servo Driver
|
|
Tools cooling
|
OIL sprayer pump
|
|
Lathe Table
|
Vacuum table with 8 sections +6 vacuum cups
|
|
Vacuum Pump
|
5.5KW VACUUM Pump
|
|
Air compressor
|
3.0KW
|
|
Tool Magazine
|
8pcs ISO30 tool holder
|
|
Dust Collector
|
3.0KW
|
|
Electricity cabinet
|
Independent Cabinet
|
|
Tool sensor
|
TOOL SENSOR
|
|
Collet
|
ER32
|
|
X,Y Working Delicacy
|
<0.01mm
|
|
Software
|
Ucancam, Artcam
|
|
Running circumstance
|
Temperature: 0℃～45℃, Relative humidity: 30%～75%
|
Product Details of ATC CNC Wood Lathe
Taiwan LNC ATC controlling system with hand wheel
9KW HQD air cooling spindle 11KW Fuling Inverter
Auto Lubrication System Loading and unloading auxiliary wheel
Moving 12pcs auto tool change magazine Press wheel
Bed with a working length of 6 meters
4th rotary axis
Saw blade
Packaging&Transportation
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dustproof.
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like
5) Outside: Marked packing size, model, weight, and other information
2) Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) Fumigation-free
4) With shipping mark if you like
5) Outside: Marked packing size, model, weight, and other information
CAMEL CNC provides three types of After-Sales service:
Hot-line support,Email-support,and On-Site Machine installation
Hot-line support,Email-support,and On-Site Machine installation
You could choose any type for your convenience details as below:
1 After receiving machine clients could install in guide of video and instructions provided
2 lf you have any question during installation or operation,we will assist via Skype, Whatsapp, Teamviewer or other tools online until clients can operate machine skilfully
3 If client needs,we could provide sample drawings for testing
4 lf clients need on-site installation and training we will charge $200 per day as well as round train costs for sending technician and local Accommodation or you could contact your sales manager for discussing details
5 Our company will contact clients on machine working status feedback new requirements or good suggestions regularly and revert back to our company functional departments to improve our machines or service
1 After receiving machine clients could install in guide of video and instructions provided
2 lf you have any question during installation or operation,we will assist via Skype, Whatsapp, Teamviewer or other tools online until clients can operate machine skilfully
3 If client needs,we could provide sample drawings for testing
4 lf clients need on-site installation and training we will charge $200 per day as well as round train costs for sending technician and local Accommodation or you could contact your sales manager for discussing details
5 Our company will contact clients on machine working status feedback new requirements or good suggestions regularly and revert back to our company functional departments to improve our machines or service
