Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Luqiang
-
Dimension(L*W*H):
-
Large size
-
Weight:
-
2t-10t
-
Warranty:
-
12 months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Advantage:
-
Widely use
-
Introduction:
-
Widely use above ground 12000 gallon fuel gasoline diesel tank
-
Type:
-
Above ground 12000 gallon fuel gasoline diesel tank
-
Material:
-
Stainless steel,carbon steel
-
Medium:
-
Oil,diesel,gasoline,water,crude oil
-
Factory style:
-
OEM,manufacturer
-
Price:
-
Factory directy price
-
Welding:
-
Automatic argon arc weiding
-
Inspection:
-
100% nondestructive examination
-
Certification:
-
As need
Quick Details
-
Capacity:
-
20000L-80000L
-
Max Working Pressure(MPa):
-
0.1 MPa
-
Core Components:
-
Fuel storage tank
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Luqiang
-
Dimension(L*W*H):
-
Large size
-
Weight:
-
2t-10t
-
Warranty:
-
12 months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Advantage:
-
Widely use
-
Introduction:
-
Widely use above ground 12000 gallon fuel gasoline diesel tank
-
Type:
-
Above ground 12000 gallon fuel gasoline diesel tank
-
Material:
-
Stainless steel,carbon steel
-
Medium:
-
Oil,diesel,gasoline,water,crude oil
-
Factory style:
-
OEM,manufacturer
-
Price:
-
Factory directy price
-
Welding:
-
Automatic argon arc weiding
-
Inspection:
-
100% nondestructive examination
-
Certification:
-
As need

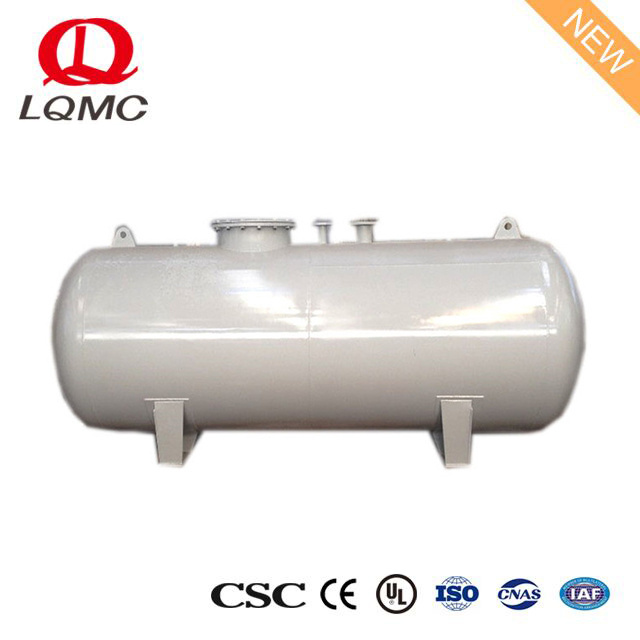

Widely use above ground 12000 gallon fuel gasoline diesel tank
The 12000 gallon fuel gasoline diesel tank is used to store crude oil, vegetable oils, chemical solvents, water or other petroleum products. Material is carbon steel and stainless steel. Widely use above ground 12000 gallon fuel gasoline diesel tank by the tank wall, the end cap and saddle form. Usually used for production links or gas stations.
Specification
| Widely use above ground 12000 gallon fuel gasoline diesel tank | |||||||
| Item | Specification(L) | Diameter(mm) | Length(mm) | Thick of cylinder(mm) | Thickness of end(mm) | Manhole | Inner carriage |
| 1 | 30000 | 2500 | 6870 | 6 | 8 | 1 | 3 |
| 2 | 40000 | 2600 | 8469 | 8 | 8 | 1 | 3 |
| 3 | 50000 | 2800 | 9128 | 8 | 8 | 1 | 3 |
| 4 | 60000 | 2800 | 10954 | 8 | 10 | 2 | 5 |
| 5 | 70000 | 3000 | 11133 | 8 | 10 | 2 | 5 |
| 6 | 80000 | 3000 | 12723 | 8 | 10 | 2 | 5 |
| Note:We can accept customized or design by your drawing. | |||||||
Classification
1, Carbon steel 12000 gallon fuel gasoline diesel tank
General use of Q235 steel production of oil tanks. Most of the oil depots, gas stations, factories, oil tanks are made of this material.
2, Stainless steel 12000 gallon fuel gasoline diesel tank
General use of 304 stainless steel production of the gasoline tank , generally used in food, chemicals, wine dairy and so on. Stainless steel cans have strong corrosion resistance, it is not subject to outside air and water residual chlorine corrosion, under normal pressure life of up to 100 years.
Shipment&shipping
The fuel gasoline diesel tank naked waxing coat or into 20` GP or 40` GP .Big type can be carried by bulk carriers or ro-ro ship or you choose.
