Quick Details
-
Model Number:
-
48V 280Ah Lifepo4 Battery Case
-
Place of Origin:
-
Guangdong, China
-
Battery Type:
-
Lifepo4 230ah 280Ah 302Ah
-
System Type:
-
Vertical mount
-
Dimension (L*W*H):
-
817*412*267mm
-
Weight:
-
32KG
-
Type:
-
Split
-
Communication Port:
-
CAN, RS485
-
Protection Class:
-
IP65
-
BMS:
-
Seplos 48V 16S 200A BMS
-
Nominal Voltage:
-
51.2V
-
Current:
-
200A
Quick Details
-
Brand Name:
-
Seplos-bsy
-
Certification:
-
CE
-
Material:
-
ABS
-
Model Number:
-
48V 280Ah Lifepo4 Battery Case
-
Place of Origin:
-
Guangdong, China
-
Battery Type:
-
Lifepo4 230ah 280Ah 302Ah
-
System Type:
-
Vertical mount
-
Dimension (L*W*H):
-
817*412*267mm
-
Weight:
-
32KG
-
Type:
-
Split
-
Communication Port:
-
CAN, RS485
-
Protection Class:
-
IP65
-
BMS:
-
Seplos 48V 16S 200A BMS
-
Nominal Voltage:
-
51.2V
-
Current:
-
200A
New Standing

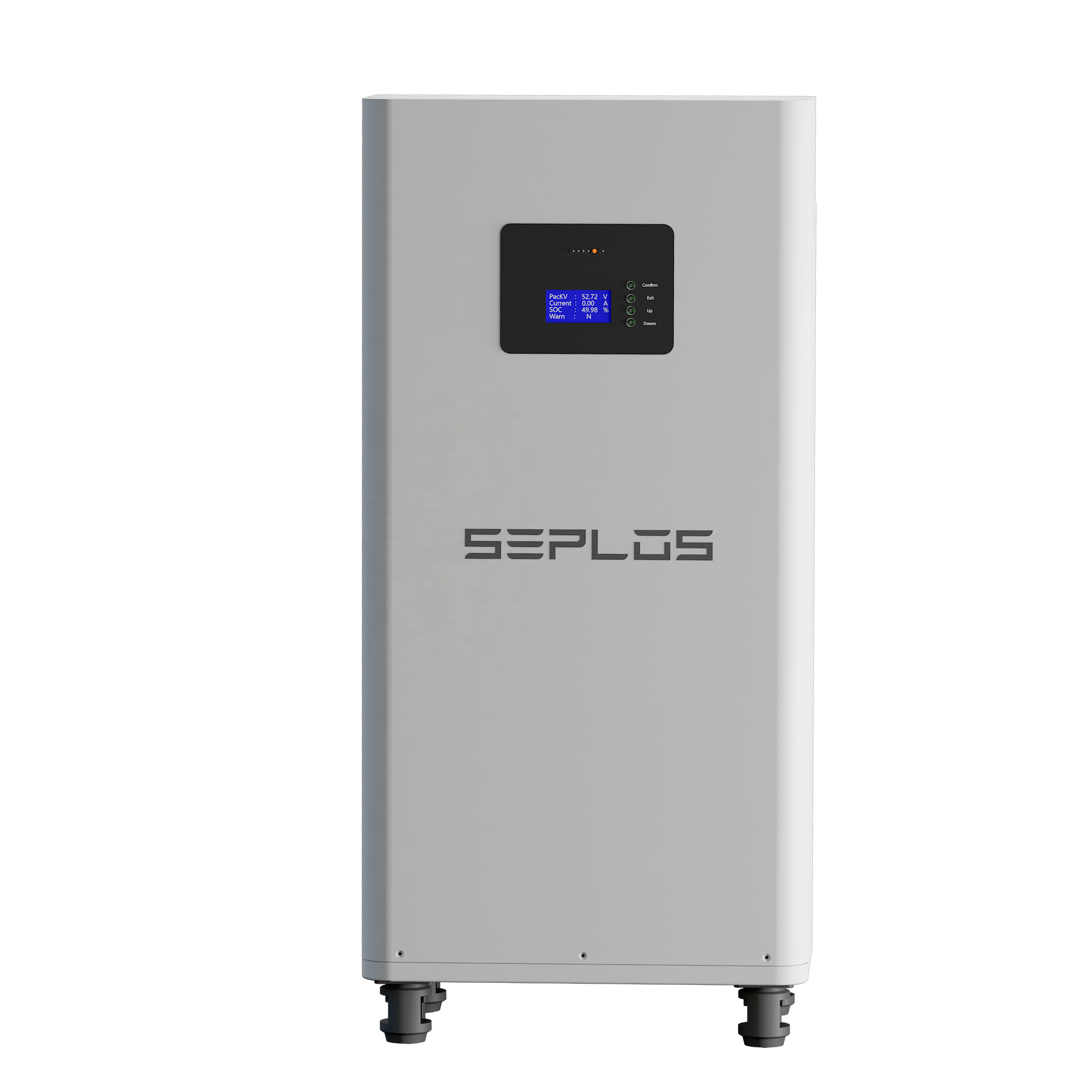

Seplos 48V MASON DIY Unit (suitable EV280Ah/304Ah,CATL 280Ah/302Ah cell)BOX Vertical type without cells
Product Description
|
Seplos MASON-280 48V 16S DIY kit
|
|
|
|
|
||||
|
Battery configuration
|
1P16S
|
|
|
|
||||
|
Battery type and series number
|
LFP(16S)
|
|
|
|
||||
|
Communication protocol
|
Canbus RS485
|
|
|
|
||||
|
Custom function
|
Heating function, external switch, rs485 protocol
|
|
|
|
||||
|
Rated voltage
|
51.2V
|
|
|
|
||||
|
Operating voltage range
|
42V~58.4V
|
|
|
|
||||
|
Rated capacity
|
280Ah
|
|
|
|
||||
|
Rating
|
14.336KWh
|
|
|
|
||||
|
BMS
|
48V 16S 200A BMS
|
|
|
|
||||
|
Battery Pack Type
|
Stackable
|
|
|
|
||||
|
Standard charge / discharge current
|
100A/200A @25±2℃
|
|
|
|
||||
|
Maximum charging current
|
200A@25±2℃
|
|
|
|
||||
|
Maximum discharge current
|
200A @25±2℃
|
|
|
|
||||
|
Operating ambient temperature
|
0～40℃(Charge) -20～40℃(Discharge)
|
|
|
|
||||
|
Store temperature and humidity
|
10℃ -35℃ (within one month of storage) 25 ± 2℃ (within three months of storage) 65%±20%RH
|
|
|
|
||||
|
Dimensions (L x W x H)
|
(817)×(412)×(267)mm
|
|
|
|
||||
|
Weight
|
32Kg±3kg
|
|
|
|
||||
|
Cycle life
|
6000 cycles @25℃ 50A charge and discharge current of 80% DOD
|
|
|
|
||||
|
IP grade
|
IP 20
|
|
|
|
||||
|
Communication mode
|
CAN&RS485
|
|
|
|
||||
|
Sea level elevation
|
0-3000m
|
|
|
|
||||
|
Humidity range
|
5~95%
|
|
|
|
||||
|
Package List
|
* 1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
* 1 * 48V 200A 16S Seplos BMS * 1 * 58V 400A Fuse * 4 * Handle * 2 * PCB Board for BMS and Cell Connection * 3 * Upper and Lower Latch lock * 1 * LCD Screen * 1 * LCD Screen Sticker * 4 * Button Cap * 3 * Wires (LCD Screen wire, PCB board A and PCB board Connector) * 2 * Battery Terminals (P+ Terminal and P- Terminal) |
|
|
|
||||
|
Other components
|
* 6 * Copper bus bars (BMS connection)
* 15 * Aluminum bus bars (Cell connection) * 10 * Epoxy sheet (Between cell and the case) * 26 * EVA Tape (Between cells) * 1 * PC sheet (Top cover) |
|
|
|
||||
|
Screws Details
|
* 12 * Phillip Hex M4 * 8mm (PCB board fix)
* 9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix) * 7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix) * 10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix) * 12 * Phillip Pan M5 * 10mm (Latch fix) * 16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix) * 42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case) * 4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix) * 5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix) * 8 * Phillip Round M5 * 10mm + Washer |
|
|
|
||||
Installation Instructions
Other DIY kits maybe you are also interested in:
Customized Lifepo4 Lithium Battery Material Factory Price Yellow Epoxy Fiberglass Insulation Plate Laminated Insulation Sheet
Any need to those above items or the assemble video, just click here to
contact Sarea
for offer. Thanks
Service:
100% Technician Support
100% aftersales support
100% warranty service
100% OEM ODM support
100% aftersales support
100% warranty service
100% OEM ODM support
Welcome to
contact Sarea (click here)
to talk more.
BMS
How we guarantee TOP quaity for you?
Package + Payment
FAQ
Q：How can I properly assemble the battery pack on my own?
A：Don't worry, we can provide DIY components and instructional videos, and you can also build your own battery pack
Q：How do I see the battery pack operation information?
A：This battery can communication with inverter, we can use adapter to connect battery pack and compute , we can see the battery information through the monitoring software on the computer.
Q：Does the DIY kit come with warranty?
A：As it is assembled by the customer, we guarantee the battery pack for three years after the successful assembly, please see our DIY kit warranty for details
Q：How do I see the battery pack operation information?
A：This battery can communication with inverter, we can use adapter to connect battery pack and compute , we can see the battery information through the monitoring software on the computer.
Q：Does the DIY kit come with warranty?
A：As it is assembled by the customer, we guarantee the battery pack for three years after the successful assembly, please see our DIY kit warranty for details
Q:How can I place the order?
A:Usually we accept alibaba trade assurance order online. For the RTS(ready for ship) product if there is clear shipping cost or free shipping to your country you can place order and pay directly after reading for all the details,or you can provide your shipping informtion to our sales they will creat online order for you.
Q:How can I do if I need more help for the order?
A:You can chat our sales online or send inquiry email,we will respond you ASAP.
A:Usually we accept alibaba trade assurance order online. For the RTS(ready for ship) product if there is clear shipping cost or free shipping to your country you can place order and pay directly after reading for all the details,or you can provide your shipping informtion to our sales they will creat online order for you.
Q:How can I do if I need more help for the order?
A:You can chat our sales online or send inquiry email,we will respond you ASAP.
Reminder:
DIY battery pack must get the cells balanced (same voltage ) before assembly. Later if there happens don't know how to assembled or wrong assembly is not accepted refund. Professionals will detected voltage/resistance/appearance and other issues before every shipment, we can only ensure that the single battery is good, when arrival you can test the cells within 15 days, after that means
batteries have no problem, does not provide return nor refund. If you found problems you can contact us for return or refund. Battery can only be unused (the electrode intact, no welding, no wear, the appearance good) to provide return. Any return behavior buyers need to be responsible for shipping fee.
DIY battery pack must get the cells balanced (same voltage ) before assembly. Later if there happens don't know how to assembled or wrong assembly is not accepted refund. Professionals will detected voltage/resistance/appearance and other issues before every shipment, we can only ensure that the single battery is good, when arrival you can test the cells within 15 days, after that means
batteries have no problem, does not provide return nor refund. If you found problems you can contact us for return or refund. Battery can only be unused (the electrode intact, no welding, no wear, the appearance good) to provide return. Any return behavior buyers need to be responsible for shipping fee.
1).Warranty period
:5 years(from the date of successful delivery),if the single battery capacity less than 80% initial capacity,take the test pictures or video to us,we will replace it or give satisfied solution.
2).If any miss or damaged for the shipping . Please contact us firstly, then send us the picture or video to check. In case of loss of cargo or the battery is damaged and can not be used or there is a greater risk of use, we will communicate with buyer if resend it or replace it or refund the product cost.If buyer send back the cells to seller,buyer should pay for the shipping cost.
3).These situations not provide return nor refund
1. After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.
2).If any miss or damaged for the shipping . Please contact us firstly, then send us the picture or video to check. In case of loss of cargo or the battery is damaged and can not be used or there is a greater risk of use, we will communicate with buyer if resend it or replace it or refund the product cost.If buyer send back the cells to seller,buyer should pay for the shipping cost.
3).These situations not provide return nor refund
1. After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.
Tips:
* These products are prototype batteries without protection board, you need to purchase a match one! Pls click here to consult us.
* please consider before taking orders, place order means you have agreed. thank you for your cooperation!
* These products are prototype batteries without protection board, you need to purchase a match one! Pls click here to consult us.
* please consider before taking orders, place order means you have agreed. thank you for your cooperation!
