Factory Non-standard Custom Packaging Equipment Yogurt Jelly Cup Noodle Filling Sealing Machine
Factory Non-standard Custom Packaging Equipment Yogurt Jelly Cup Noodle Filling Sealing Machine
Factory Non-standard Custom Packaging Equipment Yogurt Jelly Cup Noodle Filling Sealing Machine
Factory Non-standard Custom Packaging Equipment Yogurt Jelly Cup Noodle Filling Sealing Machine
Factory Non-standard Custom Packaging Equipment Yogurt Jelly Cup Noodle Filling Sealing Machine
Factory Non-standard Custom Packaging Equipment Yogurt Jelly Cup Noodle Filling Sealing Machine
Factory Non-standard Custom Packaging Equipment Yogurt Jelly Cup Noodle Filling Sealing Machine
Factory Non-standard Custom Packaging Equipment Yogurt Jelly Cup Noodle Filling Sealing Machine

Factory Non-standard Custom Packaging Equipment Yogurt Jelly Cup Noodle Filling Sealing Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $6000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Filling Accuracy:
99.99%
Voltage:
220V
Place of Origin:
Shanghai, China
Brand Name:
Shenhu
Dimension(L*W*H):
3800*850*1700mm
Weight:
800 KG
Product name:
Cup noodle sealing machine
Filling volume:
3-300ml
Sealing Temperature:
160-300 °C
Air consumption:
0.6 m³/min
Film type:
Roll film/Pre-cut lids
Delivery time:
25-60 Work days
Machine material:
Stainless steel 304/316
Production Speed:
3000-4000 Cups/Hour
After-sales Service Provided:
Video Technical Support / one-on-one Online Service
Certification:
CE

Quick Details

Machinery Capacity:
4000BPH, 8000BPH, 12000BPH, 6000BPH, 400BPH, 20000BPH, 16000BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPH, 3000-4000BPH
Packaging Material:
Plastic, Paper, Metal, Wood
Filling Material:
Beer, Milk, Water, Oil, Juice, Powder, Other
Filling Accuracy:
99.99%
Voltage:
220V
Place of Origin:
Shanghai, China
Brand Name:
Shenhu
Dimension(L*W*H):
3800*850*1700mm
Weight:
800 KG
Product name:
Cup noodle sealing machine
Filling volume:
3-300ml
Sealing Temperature:
160-300 °C
Air consumption:
0.6 m³/min
Film type:
Roll film/Pre-cut lids
Delivery time:
25-60 Work days
Machine material:
Stainless steel 304/316
Production Speed:
3000-4000 Cups/Hour
After-sales Service Provided:
Video Technical Support / one-on-one Online Service
Certification:
CE
Features

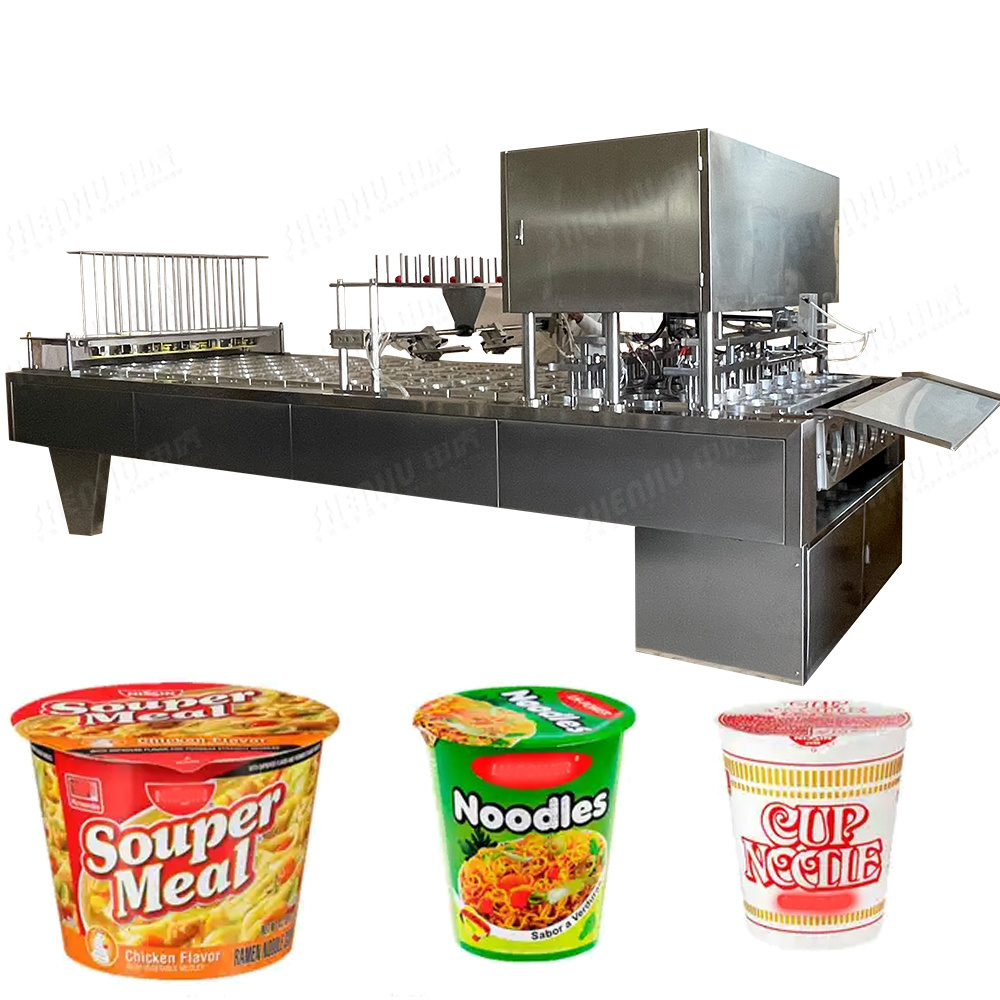

ShenHu packing machine factory produces a cup filling and sealing machine, suitable for filling and sealing different cup sizes.

Can be configured in different ways while filling type, such as gravity-filling type, cup measure type, negative pressure, and screw-type filling, in order for a variety of different products filling.

The whole machine adopts Japan's Omron or Siemens programmable logic control system, and the body is made of stainless steel 304 designed to meet the relevant food hygiene standards. Executive components of the pneumatic control system of the equipment in Taiwan simplified mechanical structure, the failure rate is significantly reduced, and the machine runs more stable and secure. No splash filling and leakage, excellent sealing quality, greatly improving production efficiency and service life of the equipment.
Products Description
Automatic Falling Cups



You only need to place the prepared cups in the designated location, and the system will automatically provide empty cups to the filling system.

The mold size is customized according to your cup size.
Automatic Filling

High precision filling and suit for kind of cups.

The single filling quantity can be customized according to the customer's production capacity, Usually, we have 1, 2, 4, 6, 8, and 10 filling heads for our customer choice.

The filling system can be customized according to the filling materials, such as water, liquid, paste, cream, powder, sauce, granular, instant noodles, and other solid fillings


Automatic Absorb Film System






Automatic absorb film and cover the cup mouth
High-Temperature Sealing System




The high-temperature sealing system uses high-temperature to automatically seal the cap.

Stabel, reliable,security and alarming functions

Sealed with high strength, good sealing, low failure rate.


International Quality




Adopt international brand accessories, for example, Japan Dragoness programmable logic controller, pneumatic control components, and intelligent digital display temperature control system.



Intelligent PLC Touch System




Intelligent PLC touch system and use operate easily

There are usually bilingual options in Chinese and English, and customization in minor languages is also supported.

One-click emergency stop, stop loss in time
Main Technical
Model
HTC-4
HTC-6
HTC-8
HTC-10
Output
3000-4000 cups/h
5000-6000 cups/h
7000-8000 cups/h
9000-10000 cups/h
Power
3.5KW
5KW
6KW
7.5KW
Filling Range
50 to 300ml
50 to 300ml
50 to 300ml
50 to 300ml
Voltage
220V 50Hz
220V 50Hz
220V 50Hz
220V 50Hz
Air Consumption
0.6 m³/min
0.7 m³/min
0.8 m³/min
0.9 m³/min
Machine Size
3300*710*1700mm
3800*850*1700mm
3800*710*1700mm
4000*800*1700mm
Machine Weight
700KG
800KG
1000KG
1200KG
Application
Cup filling and sealing machine applied to the water, drinks, cream, jelly, milk, butter, jam, rice pudding, cheese, coffee powder, and other food as well as, chemical, and other products, filling and using appropriate materials the composite film to be sealed.
