【Introduction】:Concentrating table (shaking table) is a gravity separation equipment of separation different weight mineral by asymmetric reciprocating motion
【 Capacity 】:0.1～1.8 t/h
【Improvement】:The cam lever type head is adopted; the stroke is adjusted by changing the position of sliding head on rocker arm;jig frequency is controlled by the smoothing motor pulley.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Customer Request
-
Weight:
-
3000 KG
-
Marketing Type:
-
New Product
-
Capacity:
-
more than 100tpd
-
Length (mm):
-
1100~4500
-
Water Consumption (t/h):
-
0.7~1
-
Max. Feed Size (mm):
-
2
-
Feed Density (%):
-
20~30
-
Stroke (mm):
-
16~22
-
Jig Frequency (r/min):
-
220
-
Color:
-
requirement
-
Keywords:
-
gold shaker table for sale
-
Application:
-
Gold
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
xinhai
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Customer Request
-
Weight:
-
3000 KG
-
Marketing Type:
-
New Product
-
Capacity:
-
more than 100tpd
-
Length (mm):
-
1100~4500
-
Water Consumption (t/h):
-
0.7~1
-
Max. Feed Size (mm):
-
2
-
Feed Density (%):
-
20~30
-
Stroke (mm):
-
16~22
-
Jig Frequency (r/min):
-
220
-
Color:
-
requirement
-
Keywords:
-
gold shaker table for sale
-
Application:
-
Gold
Note!!!
The current price is not the actual transaction price, the specific price is subject to the sales quotation.
Products Description
Gold Shaking Table
---Product Description
Product Advantages
Gold Shaking Table
---Product Advantages
The large range of transverse slope adjustment (0～10°)，adjustable stroke;
Keep the stably operation when change the transverse slope and stroke;
Spring is arranged in the case with compact structure;
Without reagents consumption, little electricity consumption
Product Structure
Gold Shaking Table
---Product Structure
The working principle of gold concentrating table (shaking table) is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.

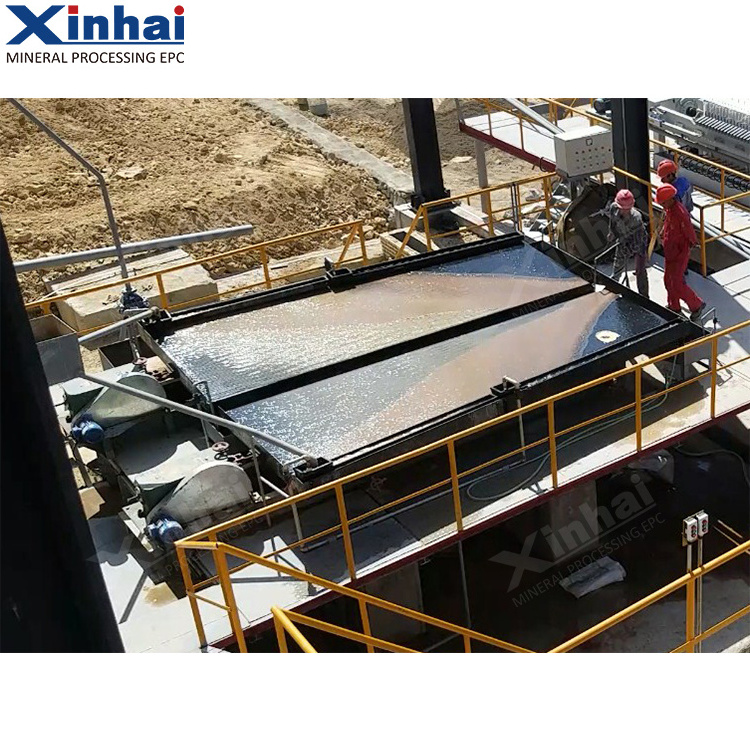

Successful Case
Technical Parameters
|
Model
|
|
XS 7.6
|
|
|
XS 4.08
|
XS 1.95
|
XS 0.5
|
|||
|
Bed Surface Type
|
|
Coarse Sand Bed Surface
|
Fine Sand Bed Surface
|
Slurry Bed Surface
|
3 Kinds Of Bed Surfaces Selectable
|
|
|
|||
|
Beneficiation Area of Bed Surface (m2)
|
|
7.6
|
7.6
|
7.6
|
4.08
|
1.95
|
0.5
|
|||
|
Bed Surface Dimension
|
Length (mm)
|
4500
|
4500
|
4500
|
3000
|
2100
|
1100
|
|||
|
|
Width of Driving End (mm)
|
1850
|
1850
|
1850
|
1320
|
1050
|
500
|
|||
|
|
Width of Concentration End (mm)
|
1550
|
1550
|
1550
|
1100
|
850
|
430
|
|||
|
Max. Feed Size (mm)
|
|
2
|
0.5
|
0.074
|
Ore Sand -2 Slurry -0.1
|
Ore Sand-2 Slurry -0.074
|
Ore Sand -2 Slurry -0.074
|
|||
|
Capacity (t/h)
|
|
1 ~1.8
|
0.5 ~1
|
0.3~0.5
|
0.4~1.5
|
0.3~0.8
|
0.05~0.2
|
|||
|
Feed Density (%)
|
|
20 ~30
|
18 ~25
|
15 ~20
|
10~30
|
|
|
|||
|
Stroke (mm)
|
|
16 ~22
|
11 ~16
|
8~16
|
6~30
|
12 ~28
|
9~17
|
|||
|
Jig Frequency (r/min)
|
|
220
|
250
|
280
|
210~320
|
250~450
|
280~460
|
|||
|
Water Consumption (t/h)
|
|
0.7 ~1
|
0.4 ~0.7
|
0.4 ~0.7
|
0.3~1.5
|
0.2 ~1
|
0.1~0.5
|
|||
|
Notch Groove Section Shape
|
|
Rectangle
|
Sawtooth Wave
|
Triangle
|
Rectangle, Sawtooth Wave and Triangle Selectable
|
|
|
|||
|
Motor Power (kW)
|
|
1.1
|
1.1
|
1.1
|
1.1
|
1.1
|
0.55
|
|||
